DANA Winches
DANA Winches

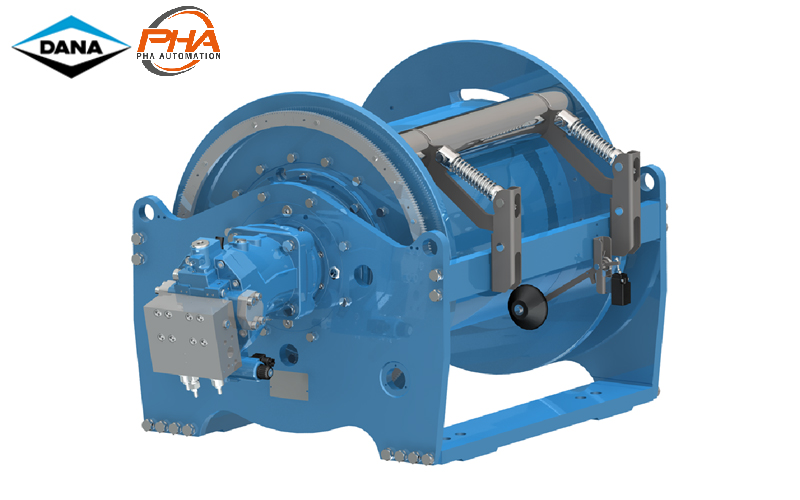

Feature | DANA Hoisting Winches
Dana has developed a new series of high-performance Brevini® winches, enhancing the actual range, for construction, industrial, and material-handling vehicles, as well as other mobile machinery. This new architecture combines efficiency, smooth controls, custom option, and safe operations in a robust modular design. The four available models cover a first-layer pulling capacity from 8.5 tonnes to 16 tonnes. These winches are equipped with high-speed Brevini hydraulic motors and a wide range of controls to avoid damage to the winch, vehicles, and, most importantly, people on the job site. All four models can be equipped with a second safety brake that allows them to be used as personnel lifting winches in marine and offshore applications.
Feature | DANA Recovery Winches
New series of compact hydraulic winches. The winches, ranging from 3,600 to 30,000 kg, have as a standard feature the integrated negative lamellar brake and a manual declutch system (hydraulic or pneumatic are also available on request). A hydraulic motor-driven unit with variable displacement can also be installed on larger versions. The power generated by the hydraulic motor-driven unit is transferred to the drum by way of planetary gear units incorporated in the drum. A complete range of accessories, such as rope guides and pressure rollers, are available on request.
Feature | DANA Winch Drives
These Brevini planetary gear units with rotating outer casing are designed to fit into the winch drum. The performance of both the PWD and SLW-SLC series has been rated in conformity with FEM M5 standards with an output speed of 15 rpm, the world standards on the market for self-propelled and onboard cranes. Brevini winch drives are the ideal solution for all lifting applications: our planetary gear are especially designed for use as winch drives inside cable drums, available with hydraulic and electric motor adaptor. The SMW Series have a planetary pre-stage reduction gear on the input side. They feature two close-mounted flanges, one of which is attached to the winch frame and the other of which is fixed to the cable drum, the drive housing therefore acts as the main drum mounting.
