Datorker Robot – WUT-PO Type

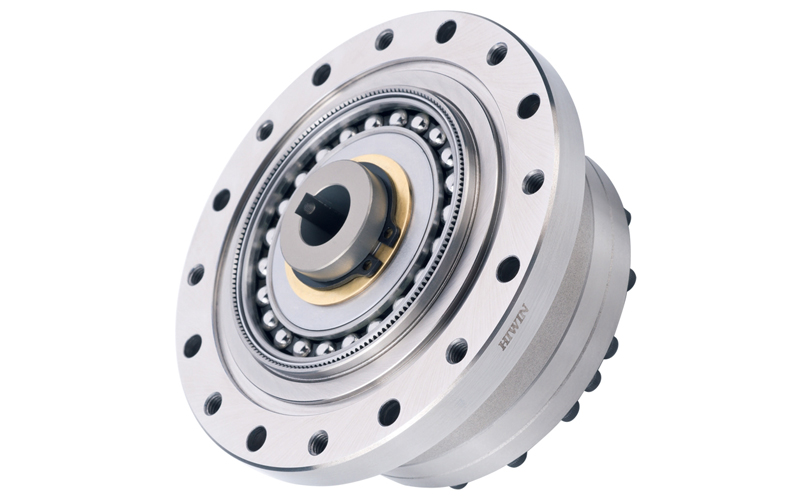

DATORKER (DT) – Robot Reducer has the characteristics of high precision, high efficiency, high torsional rigidity and low starting torque.
Datorker Robot Reducer – WUT-PO
It is widely used in robots, automation equipment, semiconductor equipment, machine tools and other industries. HIWIN has developed various specifications and reduction ratios to provide customers with wide range of choice. HIWIN is able to provide customized services to meet customers various design and requirement.
Feature | Hiwin Datorker Robot Reducer – WUT-PO
- Compact and light weight : Easy for user to assembly and work with.
- High Torque : Used in wide range of robotic automation and testing equipment.
- High Precision : Offers stable positioning and repeatability accuracy.
- High Speed : Offers various reduction ratio options for the same size.
- Customization : Offers customized solution to meet customer requirement.
Application | Hiwin Datorker Robot Reducer – WUT-PO
- Input shaft self-aligning.
- Withstand axial and radial load.
Specifications Code | Hiwin Datorker Robot Reducer – WUT-PO
Specifications | Datorker Robot Reducer – WUT-PO
| Model/Items | Reduction Ratio | Rated torque at input 2000r/min | Peak torque at start/stop | Instantaneous permissible max. torque | |||
|---|---|---|---|---|---|---|---|
| Nm | kgfm | Bm | kgfm | Nm | kgfm | ||
| 14 | 50 | 5.4 | 0.55 | 18 | 1.8 | 35 | 3.6 |
| 80 | 7.8 | 0.8 | 23 | 2.4 | 47 | 4.8 | |
| 100 | 7.8 | 0.8 | 28 | 2.9 | 54 | 5.5 | |
| 17 | 50 | 16 | 1.6 | 34 | 3.5 | 70 | 7.1 |
| 80 | 22 | 2.2 | 43 | 4.4 | 87 | 8.9 | |
| 100 | 24 | 2.4 | 54 | 5.5 | 108 | 11 | |
| 120 | 24 | 2.4 | 54 | 5.5 | 86 | 8.8 | |
| 20 | 50 | 25 | 2.5 | 56 | 5.7 | 98 | 10 |
| 80 | 34 | 3.5 | 74 | 7.5 | 127 | 13 | |
| 100 | 40 | 4.1 | 82 | 8.4 | 147 | 15 | |
| 120 | 40 | 4.1 | 87 | 8.9 | 147 | 15 | |
| 25 | 50 | 39 | 4 | 98 | 10 | 186 | 19 |
| 80 | 63 | 6.4 | 137 | 14 | 255 | 26 | |
| 100 | 67 | 6.8 | 157 | 16 | 284 | 29 | |
| 120 | 67 | 6.8 | 167 | 17 | 304 | 31 | |
| 32 | 50 | 76 | 7.8 | 216 | 22 | 382 | 39 |
| 80 | 118 | 12 | 304 | 31 | 568 | 58 | |
| 100 | 137 | 14 | 333 | 34 | 647 | 66 | |
| 120 | 137 | 14 | 353 | 36 | 686 | 70 | |
Model Specifications | Datorker Robot Reducer – WUT-PO
| Model | 14 | 17 | 20 | 25 | 32 |
|---|---|---|---|---|---|
| ØA | 73 | 79 | 93 | 107 | 138 |
| B* | 41 0-0.9 | 45 0-0.9 | 45.5 0-1 | 52 0-1 | 62 0-1.1 |
| C | 34 | 37 | 38 | 46 | 57 |
| D | 27 | 29 | 28 | 36 | 45 |
| E | 7 | 8 | 10 | 10 | 12 |
| F | 2 | 2 | 3 | 3 | 3 |
| G | 3.5 | 4 | 5 | 5 | 5 |
| H | 9.4 | 9.5 | 9 | 12 | 15 |
| I | 17.6 0-0.1 | 19.5 0-0.1 | 20.1 0-1 | 20.2 0-1 | 22 0-1.1 |
| ØJ h7 | 56 | 63 | 72 | 86 | 113 |
| ØK H7 | 11 | 10 | 14 | 20 | 26 |
| ØL h7 | 38 | 48 | 56 | 67 | 90 |
| ØM | 14 | 18 | 21 | 26 | 26 |
| ØN H7 | 6 | 8 | 12 | 14 | 14 |
| O Js9 | – | – | 4 | 5 | 5 |
| P | – | – | 13.8 +0.10 | 16.3 +0.10 | 16.3 +0.10 |
| Q | 6 | 6 | 8 | 8 | 8 |
| R | M4xDP8 | M5xDP10 | M6xDP9 | M8xDP12 | M10xDP15 |
| S (P.C.D) | 23 | 27 | 32 | 42 | 55 |
| T | 6 | 6 | 6 | 8 | 12 |
| ØU | 4.5 | 4.5 | 5.5 | 5.5 | 6.6 |
| V (P.C.D) | 65 | 71 | 82 | 96 | 125 |
| W | 6 | 6 | 6 | 8 | 12 |
| X | M4 | M4 | M5 | M5 | M6 |
| Y (degree) | 30° | 30° | 30° | 22.5° | 15° |
*B is the tolerance and the matching position of axial direction.
