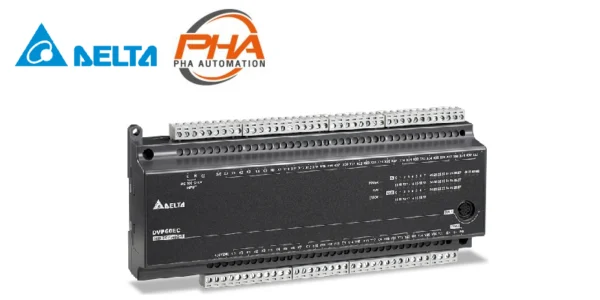

PLC - DVP-EC3 series
DELTA PLC – DVP-EC3 series
Model Numbers | PLC – DVP-EC3 series
Example: DVP10EC00R3, DVP10EC00T3
How to choose: DVP(1) [ ](2) EC(3) 00(4) R(5) [ ](6)
| หมายเลข | ความหมาย | รหัส | รายละเอียด |
|---|---|---|---|
| (1) | ซีรีส์ | DVP | DELTA PLC DVP series |
| (2) | จำนวน I/O | – | – |
| (3) | รุ่น | ES / ES2 / ES3 | DVP-ES / ES2 / ES3 series PLC |
| EX / EX2 | DVP-EX / EX2 series PLC | ||
| SS / SS2 | DVP-SS / SS2 series PLC | ||
| SA / SA2 | DVP-SA / SA2 series PLC | ||
| SX / SX2 | DVP-SX / SX2 series PLC | ||
| SC | DVP-SC series PLC | ||
| SV | DVP-SV series PLC | ||
| SE | DVP-SE series PLC | ||
| PM | DVP-PM series PLC | ||
| MC | DVP-MC series PLC | ||
| EH | DVP-EH series PLC | ||
| EC | DVP-EC series PLC | ||
| (4) | แหล่จ่ายไฟ | 00 | อินพุตไฟฟ้ากระแสสลับ |
| 11 | อินพุตไฟฟ้ากระแสตรง | ||
| (5) | เอาต์พุต | R | รีเลย์ |
| T | ทรานซิสเตอร์ (NPN) | ||
| M | รวมระหว่างสัญญาณที่แตกต่างกัน | ||
| S | ทรานซิสเตอร์ (PNP) | ||
| RC | รีเลย์ + CANopen | ||
| TC | ทรานซิสเตอร์ + CANopen | ||
| RE | รีเลย์ + Ethermet | ||
| TE | ทรานซิสเตอร์ + Ethermet | ||
| (6) | เวอร์ชัน | – | – |
Specifications | PLC – DVP-EC3 series
| DVP-EC3 Series | ||||||
|---|---|---|---|---|---|---|
| Model | Power supply | Input | Output | Output type | Model | High-speed processing |
| DVP10EC00R3 | 100 – 240 VAC | 6 | 4 | Relay | DVP-EC3 | 3.8 μs |
| DVP10EC00T3 | 100 – 240 VAC | 6 | 4 | Transistor | ||
| DVP14EC00R3 | 100 – 240 VAC | 8 | 6 | Relay | ||
| DVP14EC00T3 | 100 – 240 VAC | 8 | 6 | Transistor | ||
| DVP16EC00R3 | 100 – 240 VAC | 8 | 8 | Relay | ||
| DVP16EC00T3 | 100 – 240 VAC | 8 | 8 | Transistor | ||
| DVP20EC00R3 | 100 – 240 VAC | 12 | 8 | Relay | ||
| DVP20EC00T3 | 100 – 240 VAC | 12 | 8 | Transistor | ||
| DVP24EC00R3 | 100 – 240 VAC | 12 | 12 | Relay | ||
| DVP24EC00T3 | 100 – 240 VAC | 12 | 12 | Transistor | ||
| DVP30EC00R3 | 100 – 240 VAC | 18 | 12 | Relay | ||
| DVP30EC00T3 | 100 – 240 VAC | 18 | 12 | Transistor | ||
| DVP32EC00R3 | 100 – 240 VAC | 16 | 16 | Relay | ||
| DVP32EC00T3 | 100 – 240 VAC | 16 | 16 | Transistor | ||
| DVP40EC00R3 | 100 – 240 VAC | 24 | 16 | Relay | ||
| DVP40EC00T3 | 100 – 240 VAC | 24 | 16 | Transistor | ||
| DVP48EC00R3 | 100 – 240 VAC | 28 | 20 | Relay | ||
| DVP48EC00T3 | 100 – 240 VAC | 28 | 20 | Transistor | ||
| DVP60EC00R3 | 100 – 240 VAC | 36 | 24 | Relay | ||
| DVP60EC00T3 | 100 – 240 VAC | 36 | 24 | Transistor | ||
Features | PLC – DVP-EC3 series
EC3 series is the most economical solution for sequential control and communication monitoring and can operate independently, allowing the user to achieve stand-alone monitor, e.g. monitoring phototransistor coupler, proximity switch, optical sensor, indicator and illumination switch. Through serial ports, EC3 is able to connect to control devices such as PLC, frequency inverter and temperature controller, which can be said to be a programmable application solution that is cost-friendly and highly reliable.
Applications | PLC – DVP-EC3 series
- Single control unit
- landscape fountain
- building automation
Properties | PLC – DVP-EC3 series
| PLC DVP Standard | DVP-EC3 series |
|---|---|
| MPU | 10, 14, 16, 24, 32, 60 points |
| Program capacity | 4 k steps |
| COM port | Built-in RS-232 and RS-485 ports (available in 16 – 60 point models) compatible with Modbus ASCII / RTU protocol |
| Max I/O points | 60 points |
| High-speed counters | Built-in 4 points |
