HIWIN’s rotating nut utilizes a special end cap design that allows the steel balls to circulate inside the nut while featuring an integral bearing that allows the ball screw shaft to be fixed. This unique design reduces noise generated at high speeds and offers higher axial loading and stiffness. ตัวอย่างการเลือกรุ่น : 2R40-40S2-DFSHR1-800-1000-0.018 Compact The integrated nut/bearing and reduced flange thickness design offers a compact assembly much smaller than conventional designs. Simple installationNut easilly bolts directly to housing. Energy savingThe fixed screw creates no inertial force reducing the need for additional motor drive force on long strokes. Increased outer ring rigidtythe outer ring bearing has a back-to back-design. The longer support distance resists bending moments and increases rigidity 20 – 30% above traditional face-to-face bearings. Improved dust resistanceA dustproof component has been added between the bearing and the nut body to reduce the gap present in traditional designs and improve contamination resistance.
บอลสกรูนัทหมุน R1
รายละเอียด : HIWIN Ball screw R1
คุณสมบัติ : HIWIN Ball screw R1
คุณสมบัติทางเทคนิค : HIWIN Ball screw R1

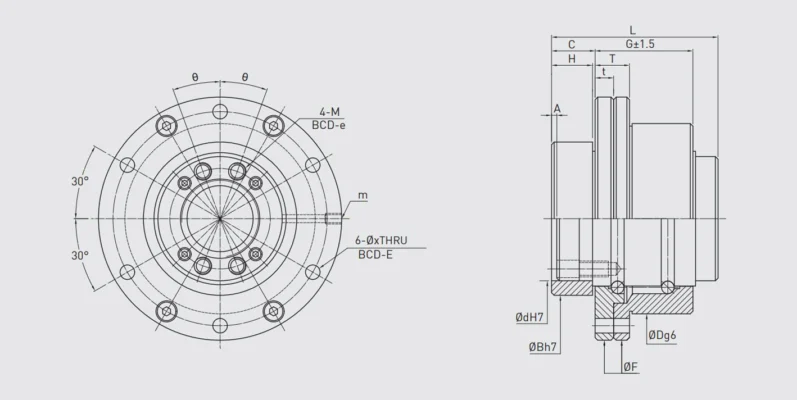

Model
Bearing
Nut
Flange
Bolt
Bush
Oil hole
Dynamic Load(kgf)
Stactic Load(kgf)
D
G
L
C
F
T
t
BCD-E
BCD-e
Ѳ
M
X
d
B
H
A
16-16S2
798
1392
52
25
44
11.4
68
13
6
60
26
20
M4x0.7P
4.5
33
40
11
2
M4x0.7P
20-20S2
1115
2005
62
30
50
12
78
13
6
70
31
20
M5x0.8P
4.5
39
50
11
2
M4x0.7P
25-25S2
1228
2486
72
37
62
16.5
92
13
7
81
38
20
M6x1P
5.5
47
58
15.5
2
M4x0.7P
32-32S2
2010
4134
80
47
80
21
105
20
10
91
48
25
M6x1P
6.6
58
66
20
3
M6x0.75P
40-40S2
3127
6906
110
62
98
22.5
140
20
10
123
61
25
M8x1.25P
9
73
90
21.5
3
M6x0.75P
50-50S2
4280
9623
120
77
126
29
156
20
10
136
75
25
M10x1.5P
11
90
100
28
4
M6x0.75P
