HIWIN Ball screw – FDI Type

HIWIN Ball screw – FDI Type เป็นบอลสกรูชนิดเจียรแบบปกติ มีความแม่นยำและทนทานสูง มีให้เลือกถึง 13 รุ่น FSI, FDI, FSV, FDV, FSW, FDW, OFSI, OFSW, RSI, RDI, PFDI, PFDW 1, PFDW 2 แต่ละรุ่นยังมีสเปคให้เลือกตามความเหมาะสมกับความต้องการในการใช้งาน

รายละเอียด: HIWIN Ball screw – FDI Type

แบบหน้าแปลน 6 รูยึด
สกรูขนาด 8 – 100 mm
รับน้ำหนักได้ 170 – 13,569 kgf

Category: Ball screw Precision Ground - General Type (บอลสกรูชนิดเจียรแบบปกติ)

Description

HIWIN Ball screw – FDI Type

บอลสกรูแบบปกติ FDI

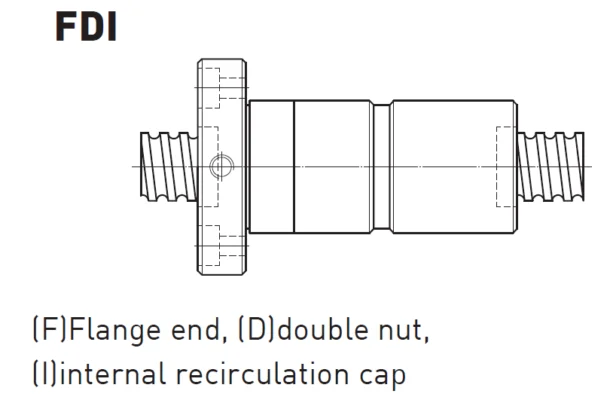

FDI Type – (F)Flange end, (D)double nut, (I)internal recirculation cap

- F = แบบหน้าแปลน : Flange end
- D = นัท 2 ลูก : double nut
- I = หมุนเวียนลูกปืนภายใน : internal recirculation cap

รายละเอียด : HIWIN Ball screw – FDI Type

- แบบหน้าแปลน 6 รูยึด
- สกรูขนาด 8 – 100 mm
- รับน้ำหนักได้ 170 – 13,569 kgf

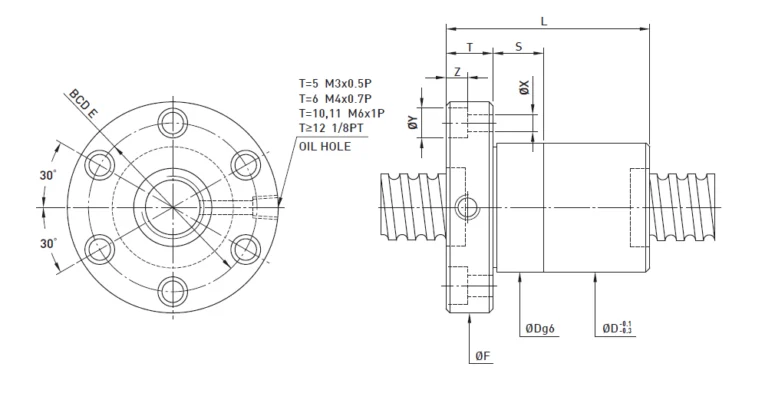

FSI-spec

คุณสมบัติทางเทคนิค : HIWIN Ball screw - FDI Type

Model: 16-40

Model	Size		Ball Dia.	PCD	RD	Circuits	Stiffness K (kgf/µm)	Dynamic Load 1×10⁶ revs C (kgf)	Static Load Co (kgf)	Nut			Flange			Bolt			Fit
Model	Nominal Dia.	Lead	Ball Dia.	PCD	RD	Circuits	Stiffness K (kgf/µm)	Dynamic Load 1×10⁶ revs C (kgf)	Static Load Co (kgf)	D		L	F	T	BCD-E	X	Y	Z	S
16-5T3	16	5	3.175	16.6	13.324	3	20	731	1331	28	30	78	54	12	41	5.5	9.5	5.5	24
16-5T4	16	5	3.175	16.6	13.324	4	23	936	1775	28	30	90	54	12	41	5.5	9.5	5.5	24
20-5T3	20	5	3.175	20.6	17.324	3	39	852	1767	32	34	78	57	12	45	5.5	9.5	5.5	24
20-5T4	20	5	3.175	20.6	17.324	4	54	1091	2356	32	34	92	57	12	45	5.5	9.5	5.5	24
20-6T3	20	6	3.969	20.8	16.744	3	39	1091	2081	34	36	89	60	12	48	5.5	9.5	5.5	24
20-6T4	20	6	3.969	20.8	16.744	4	54	1398	2774	34	36	109	60	12	48	5.5	9.5	5.5	24
25-2.5T5	25	2.5	2.000	25.2	23.136	5	66	716	2117	35	40	87	65	10	51	6.6	11	6.5	24
25-5T3	25	5	3.175	25.6	22.324	3	55	977	2314	37	40	78	64	12	52	5.5	9.5	5.5	24
25-5T4	25	5	3.175	20.6	22.324	4	73	1252	3085	37	40	96	64	12	52	5.5	9.5	5.5	24
25-6T3	25	6	3.969	25.8	21.744	3	56	1272	2762	38	42	89	65	12	53	5.5	9.5	5.5	24
25-6T4	25	6	3.969	25.8	21.744	4	75	1628	3682	38	42	109	65	12	53	5.5	9.5	5.5	24
25-10T3	25	10	4.763	26	21.132	3	49	1643	3265	47	51	140	74	15	60	6.6	11	6.5	24
28-5T5	28	5	3.175	28.6	25.324	5	86	1619	4404	45	50	110	74	12	62	5.5	9.5	5.5	24
28-10T4	28	10	4.763	29	24.132	4	70	2199	4969	45	50	150	74	12	61	6.6	11	6.5	24
32-2.5T6	32	2.5	2.000	32.2	30.136	6	97	928	3339	45	51	106	74	12	62	5.5	9.5	5.5	24
32-5T3	32	5	3.175	32.6	29.324	3	64	1117	3081	44	48	78	74	12	60	6.6	11	6.5	24
32-5T4	32	5	3.175	32.6	29.324	4	82	1431	4108	44	48	96	74	12	60	6.6	11	6.5	24
32-5T6	32	5	3.175	32.6	29.324	6	121	2027	6162	44	48	118	74	12	60	6.6	11	6.5	24
32-5.08T4	32	5.08	3.175	32.6	29.324	4	82	1430	4108	44	48	96	74	12	60	6.6	11	6.5	24
32-6T3	32	6	3.969	32.8	28.744	3	65	1446	3620	45	50	89	76	12	62	6.6	11	6.5	24
32-6T4	32	6	3.969	32.8	28.744	4	84	1852	4826	45	50	109	76	12	62	6.6	11	6.5	24
32-6T6	32	6	3.969	32.8	28.744	6	125	2625	7239	45	50	137	76	12	62	6.6	11	6.5	24
32-8T3	32	8	4.763	33	28.132	3	68	1810	4227	47	52	110	78	16	64	6.6	11	6.5	24
32-8T4	32	8	4.763	33	28.132	4	82	2317	5635	47	52	136	78	16	64	6.6	11	6.5	24
32-10T3	32	10	6.350	33.4	26.910	3	68	2539	5327	51	56	129	82	16	68	6.6	11	6.5	24
32-10T4	32	10	6.350	33.4	26.910	4	82	3252	7102	51	56	155	82	16	68	6.6	11	6.5	24
40-5T4	40	5	3.175	40.6	37.324	4	99	1599	5280	51	54	96	80	16	66	6.6	11	6.5	24
40-5T6	40	5	3.175	40.6	37.324	6	146	2265	7919	51	54	122	80	16	66	6.6	11	6.5	24
40-6T4	40	6	3.969	40.8	36.744	4	100	2136	6420	53	56	113	88	16	72	9	14	8.5	30
40-6T6	40	6	3.969	40.8	36.744	6	148	3028	9630	53	56	141	88	16	72	9	14	8.5	30
40-8T4	40	8	4.763	41	36.132	4	102	2728	7596	55	60	136	92	16	75	9	14	8.5	30
40-8T6	40	8	4.763	41	36.132	6	150	3866	11394	55	60	178	92	16	75	9	14	8.5	30
40-10T3	40	10	6.350	41.4	34.91	3	76	2959	7069	60	65	133	96	16	80	9	14	8.5	30
40-10T4	40	10	6.350	41.4	34.91	4	101	3789	9426	60	65	155	96	16	80	9	14	8.5	30
40-10T5	40	10	6.350	41.4	34.91	5	119	4590	11781	60	65	192	96	16	80	9	14	8.5	30
40-12T3	40	12	6.350	41.4	34.91	3	73	2958	7069	58	60	160	96	18	80	9	14	8.5	30
40-12T4	40	12	6.350	41.4	34.91	4	101	3789	9425	58	60	186	96	18	80	9	14	8.5	30

Stiffness values listed above are derived from theoretical formula while preload is 10% of dynamic load rating.
