Split outer an inner ring and two outer semi-rings with mounting holes. The mounting holes enable the bearing to be fixed it is suitable for inner ring rotation.

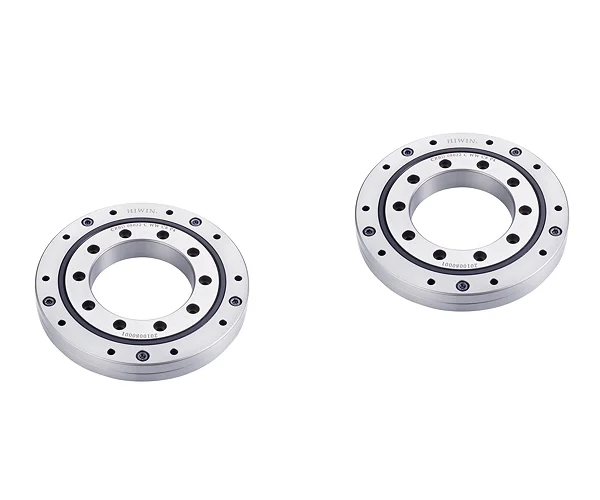

Hiwin Crossed Roller Bearing CRBD

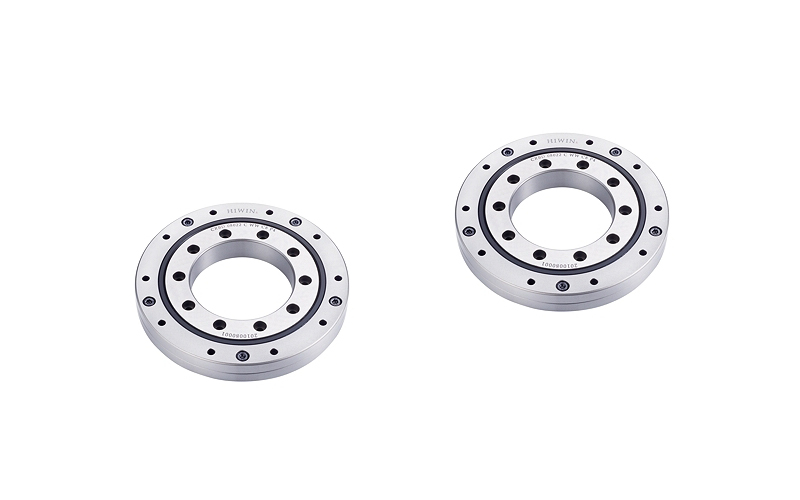

Hiwin Crossed Roller Bearing CRBD
Feature | HIWIN Crossed Roller Bearing CRBD

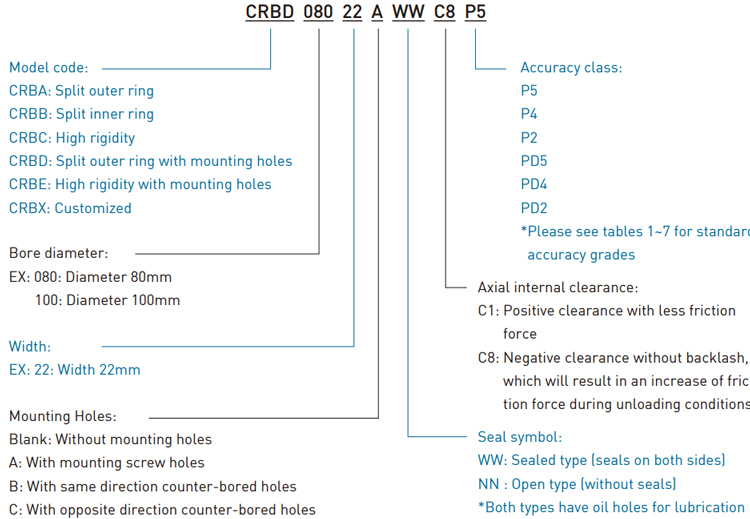

Specifications Code | HIWIN Crossed Roller Bearing CRBD
Specifications Code | HIWIN Crossed Roller Bearings CRBD

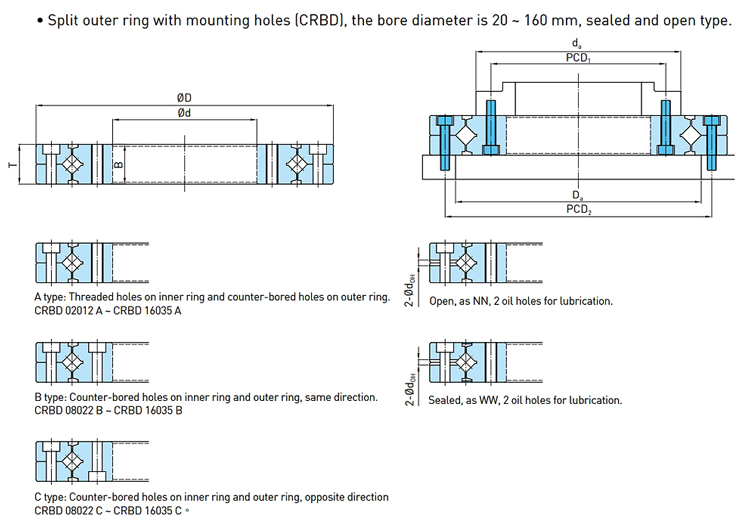

Dimensions (mm)
Bearings No.
Dimensions of mounting holes (mm)
Basic load Ratings (kN)
Mounting dimensions (mm)
Inner dia (d)
Outer dia (D)
Width (B, T)
Chamfer (rmin)
Oil holes (dOH)
Inner rings
Outer rings
Dynamic load, C
Static load, C0
da
Da
PCD1
Mounting holes
PCD2
Mounting holes
20
70
12
0.6
3
CRBD 02012 A
28
6-M3 through
57
6-ϕ3.4 through
ϕ6.5 counter bore depth 3.38.26
9.16
35
47
35
95
15
0.6
3
CRBD 03515 A
45
8-M4 throungh
83
8-ϕ4.5 through
ϕ8 counter nore depth 4.418.9
23.4
57
73
55
120
15
0.6
3
CRBD 05515 A
65
8-M5 through
105
8-ϕ5.5 through
ϕ9.5 counter bore depth 5.451.7
30.6
77
92
80
165
22
1
3
CRBD 08022 A
97
10-M through
148
10-ϕ5.5 through
ϕ9.5 counter bore depth 5.440.4
63.6
117
132
CRBD 08022 B
10-ϕ5.5 through
ϕ9.5 counter bore depth 5.4
CRBD 08022 C
90
210
25
1.5
3
CRBD 09022 A
112
12-M8 through
187
12-ϕ9 through
ϕ14 counter bore depth 8.646
80.2
139
157
CRBD 09022 B
12-ϕ9 through
ϕ14 counter bore depth 8.6
CRBD 09022 C
115
240
28
1.5
3
CRBD 11528 A
139
12-M8 through
217
12-ϕ9 through
ϕ14 counter bore depth 8.673.1
131.9
168
188
CRBD 11528 B
12-ϕ9 through
ϕ14 counter bore depth 8.6
CRBD 11528 C
160
295
35
2
6
CRBD 16035 A
184
12-M10 through
148
12-ϕ11 through
ϕ17.5 counter bore depth 10.8102
192.3
218
238
CRBD 16035 B
12-ϕ11 through
ϕ17.5 counter bore depth 10.8
CRBD 16035 C
