High rigidity with mounting holes. Cosists of an inner ring and an outer ring with mounting holes enable the bearing to be fixed and it is suitable for both inner and outer ring rotation.

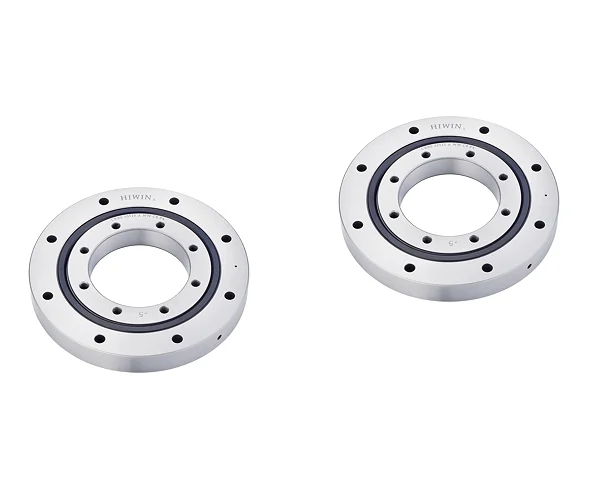

Hiwin Crossed Roller Bearing CRBE

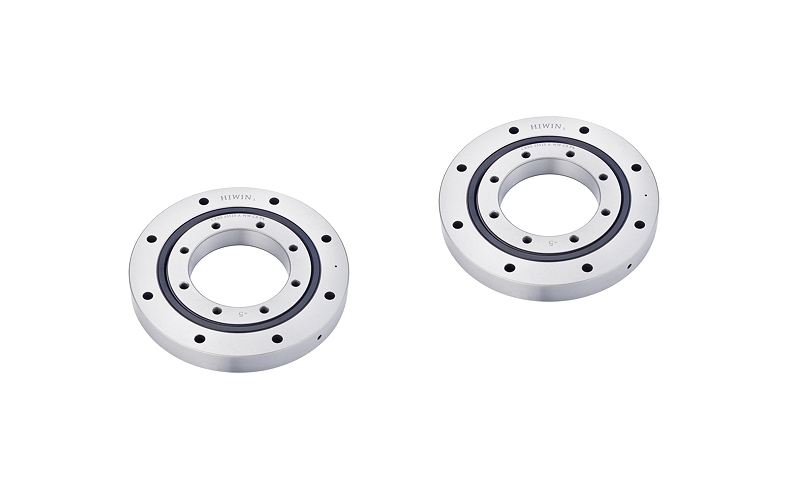

Hiwin Crossed Roller Bearing CRBE
Feature | HIWIN Crossed Roller Bearing CRBE

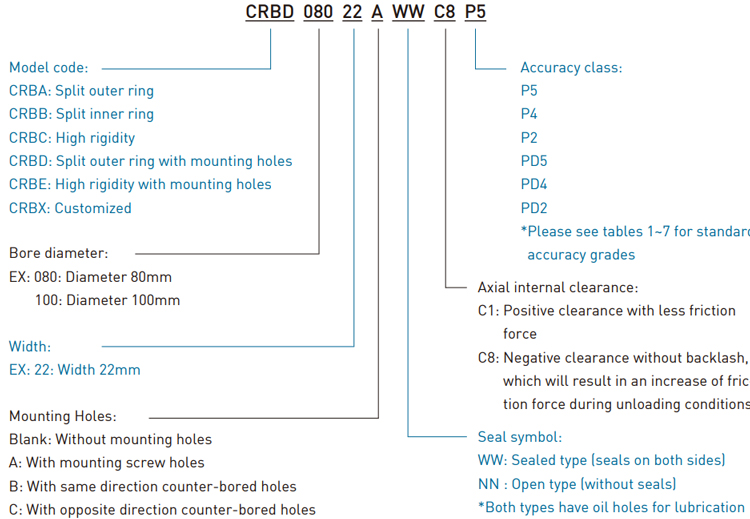

Specifications Code | HIWIN Crossed Roller Bearing CRBE

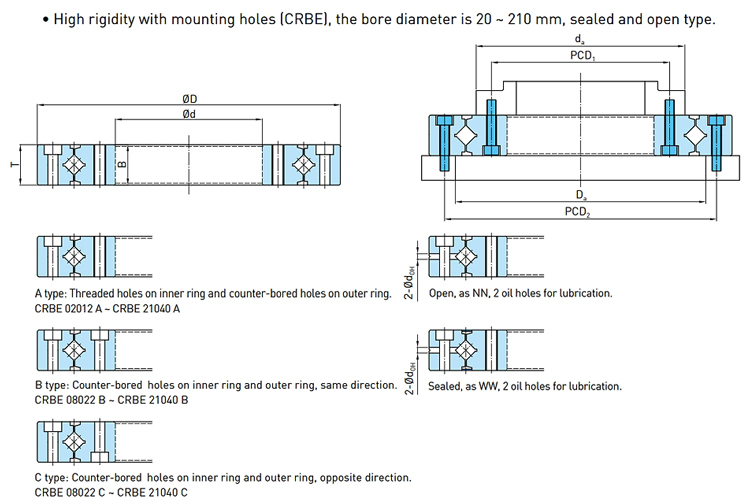

Specifications | HIWIN Crossed Roller Bearing CRBE
Dimensions (mm)
Bearing No.
Dimensions of mounting holes (mm)
Basic load ratings (kN)
Mounting dimensions (mm)
Inner dia. (d)
Outer dia. (D)
Width (B, T)
Chamfer (rmin)
Oil holer (dOH)
Inner rings
Outer rings
Dynamic load, C
Static load, C0
da
Da
PCD1
Mounting holes
PCD2
Mounting holes
20
70
12
0.6
3
CRBE 02012 A
28
6-M3 through
57
6-ϕ3.4 through
ϕ6.5 counter bore depth 3.38.26
9.16
35
47
35
95
15
0.6
3
CRBE 03515 A
45
8-M4 through
83
8-ϕ4.5 through
ϕ8 counter bore depth 4.418.9
23.4
57
73
55
120
15
0.6
3
CRBE 05515 A
65
8-M5 through
105
8-ϕ5.5 through
ϕ9.5 counter bore depth 5.421.7
30.6
77
92
80
165
22
1
3
CRBE 08022 A
97
10-M5 through
148
10-ϕ5.5 through
ϕ9.5 counter bore depth 5.440.4
63.6
117
132
CRBE 08022 B
10-ϕ5.5 through
ϕ9.5 counter bore depth 5.4
CRBE 08022 C
90
210
25
1.5
3
CRBE 09025 A
112
12-M8 through
187
12-ϕ9 through
ϕ14 counter bore depth 8.646
80.2
139
157
CRBE 09025 B
12-ϕ9 through
ϕ14 counter bore depth 8.6
CRBE 09025 C
115
240
28
1.5
3
CRBE 11528 A
139
12-M8 through
217
12-ϕ9 through
ϕ14 counter bore depth 8.673.1
131.9
168
188
CRBE 11528 B
12-ϕ9 through
ϕ14 counter bore depth 8.6
CRBE 11528 C
160
295
35
2
6
CRBE 16035 A
184
12-M10 through
270
12-ϕ11 through
ϕ17.5 counter bore depth 10.8102
192.3
218
238
CRBE 16035 B
12-ϕ11 through
ϕ17.5 counter bore depth 10.8
CRBE 16035 C
210
380
40
2.5
6
CRBE 21040 A
240
16-M12 through
350
16ϕ14 through
ϕ20 counter bore depth 13142
286.2
277
299
CRBE 21040 B
16-ϕ14 through
ϕ20 counter bore depth 13
CRBE 21040 C
