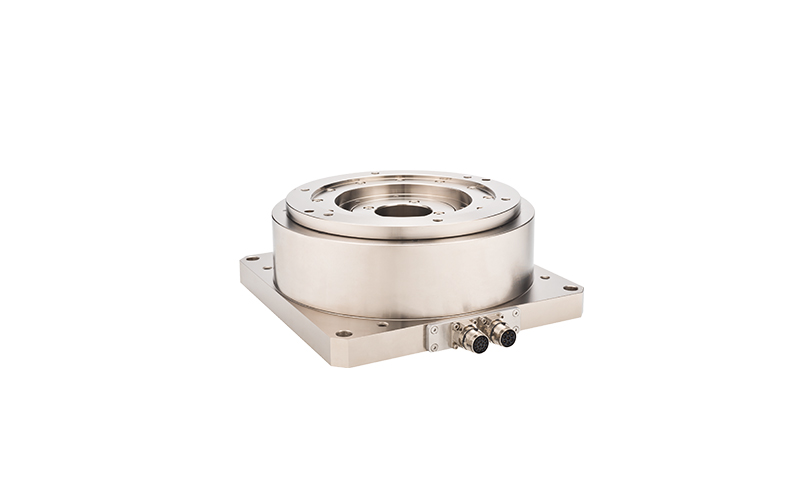

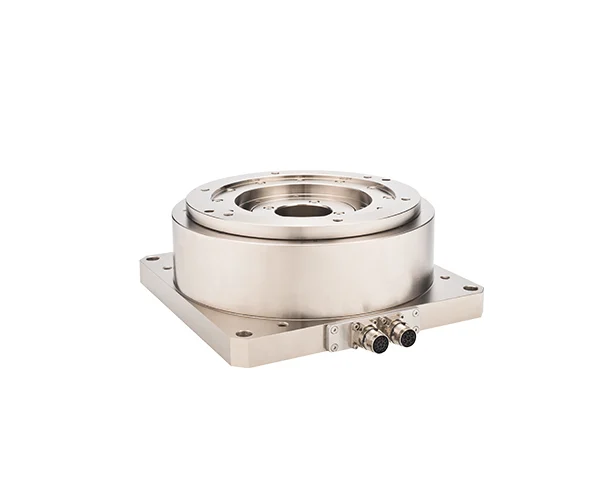

Hiwin Direct Drive Motor – DMN95

DMN95 ได้รับการออกแบบด้วยระบบการป้อนกลับที่มีความละเอียดสูงซึ่งสามารถเคลื่อนที่ได้แบบไดนามิกสูงแรงบิต และความแม่นยำสูง เหมาะสมกับงานอุตสาหกรรมที่ต้องการความแม่นยำสูง

Direct Drive Motor – DMN95

DMN95 The DM series is designed with an integrated, high resolution feedback system optimized to achieve high dynamic motion, high torque and high precision. The DMS series is a perfect fit for industries that require high precision. Application : Sceen Printing, Laser cutting, Semi-conductor tansport, inspection/processing, New Energy, Automoblie, Computers/Communications/Consumer product, Display Panel, Medical, Inspection Equipment.

Hiwin Direct Drive Motor - DMN95

Feature | Direct Drive Motor – DMN95

Internal rotating
Saving 30% spec with same torque
Integrated high resolution encoder
High dynamic
Maintenance free and longer life time

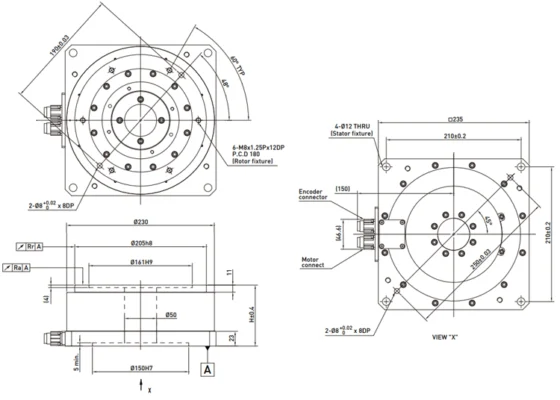

Dimensions | Direct Drive Motor – DMN95

DMN95_model

Specifications | Direct Drive Motor – DMN95

DMN95	Symbol	Unit	DMN95
Continuous torque	T_c	Nm	47
Contrinuous current	I_c	Arms	4
Peak torque (Within 1s)	T_p	Nm	141
Peak current (Within 1s)	I_p	A_rms	12
Torque contant	K_t	N_m/A_rms	11.76
Electrical time constant	T_e	ms	4.7
Resistance (line to line at 25°C)	R₂₅	Ω	6.01
Inductance (line to line)	L	mH	28
Number of poles	2_p	–	22
Back emf constant (line to line)	K_v	V_rms/rad/s	6.8
Motor constant (line to line at 25°C)	Km	K/W	0.52
Temperature sensor	–	–	PTC SNM100
Norminal input voltage	–	V_DC	600
Inertia of rotating parts	J	kgm²	0.042
Maxx of motor	Mm	kg	22.5
Max. moment	Fa	N	8000
Max. speed	–	rpm	250
Resolution	–	p/rev	4,320,000 (incremental, sin/cos 1Vpp)
Repeatability	–	arc-sec	±2.5
Accuracy	–	arc-sec	±45/±10 ¹⁾
Axial runout	Ra	mm	0.03 (0.005 ²⁾)
Radial runout	Rr	mm	0.03 (0.015 ²⁾)
Height	H	mm	95
