Hiwin Linear Actuator – LAN5 : belongs to ACME screw type, low noise, max thrust is 8000N. It has internal safety devices, the back fixture seat can turn many kinds of degrees to choose from according to diffecent demands. Hiwin Linear Actuator – LAN5 : The internal structure is designed for the applicability to be combined with LAK2D and LAK4D control box.

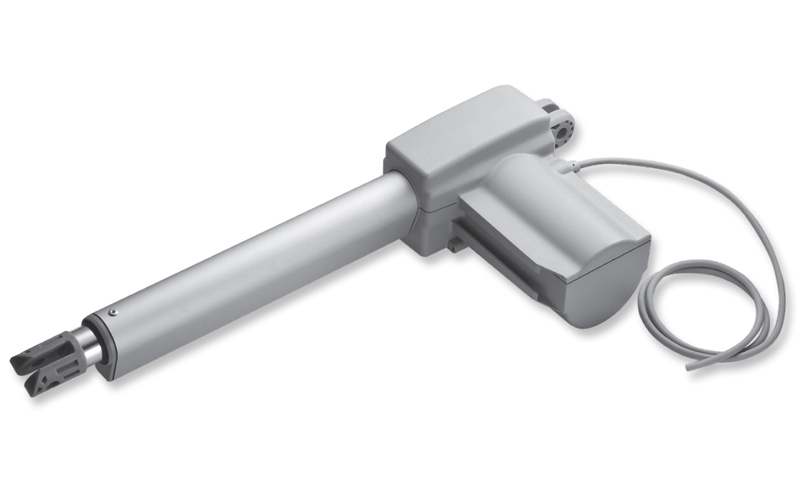

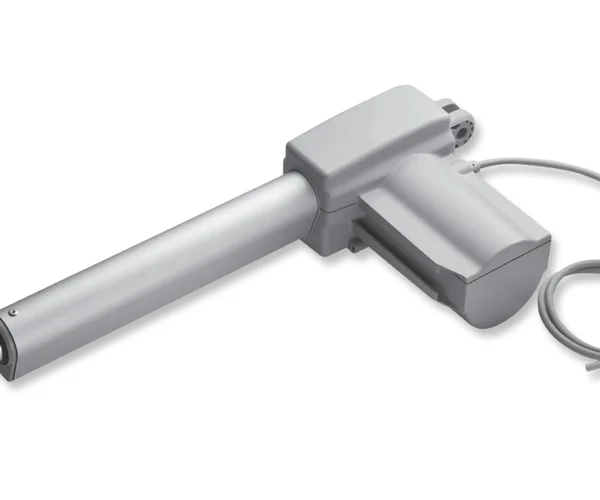

Hiwin Linear Actuator – LAN5
Linear Actuator – LAN5
The actuator has quick release function and protection degree of which can reach up to IP66.
Feature | Linear Actuator – LAN5

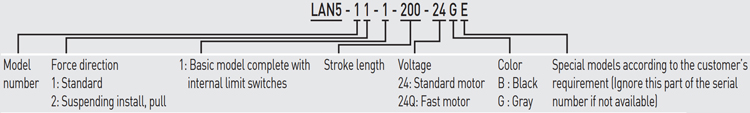

Code | Linear Actuator – LAN5
Dimensions | Linear Actuator – LAN5
Specifications | Linear Actuator – LAN5
Model
Thrust max. (N)
Pulling max. (N)
Holding max. (N)
Speed (mm/s)
Standard stroke (mm) : s
Duty cycle %
Current max (A)
Duty cycle %
Load max
Load 0
24VDC
LAN5-1
8000
4000
6000
2
3.5
100
150
200
–
–
10
5
0.08
LAN5-2
6000
4000
5000
3
4.5
100
150
200
250
–
10
4.5
0.10
LAN5-3
4000
3000
4000
4
5.5
100
150
200
250
300
10
4
0.14
LAN5-4
3000
2000
1500
6
9
100
150
200
250
300
10
4
0.22
Model
Thrust max. (N)
Pulling max. (N)
Holding max. (N)
Speed (mm/s)
Standard stroke (mm) : s
Duty cycle %
Current max (A)
Duty cycle %
Load max
Load 0
24VDC
LAN5-1
7000
4000
6000
5
7
100
150
200
–
–
10
8
0.08
LAN5-2
6000
4000
5000
7
9
100
150
200
250
–
10
8
0.10
LAN5-3
4000
3000
4000
9
11
100
150
200
250
300
10
6
0.14
LAN5-4
3000
2000
1500
14
19
100
150
200
250
300
10
6
0.22
