Hiwin Linear Bearing – JBF/JBK series

HIWIN linear bearings enable high precision linear motion on round shafts by utilizing recirculating ball pathways.

Hiwin Linear Bearing – JBF/JBK series

Hiwin Linear Bearing - JBF/JBK series

Feature | HIWIN Linear Bearing – JBF/JBK series

The patented recirculation curve enables HIWIN’s linear bearing to sustain heavy loads with low noise and high stiffness.
HIWIN’s diverse line of linear bearings perform under almost any conditions and load capacities to satisfy a wide range of applications.

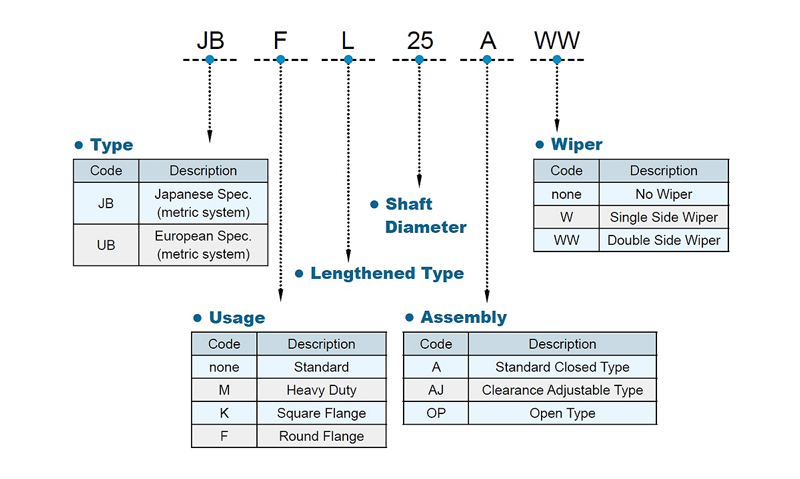

Code | HIWIN Linear Bearing – JBF/JBK series

JBF-JBK_code

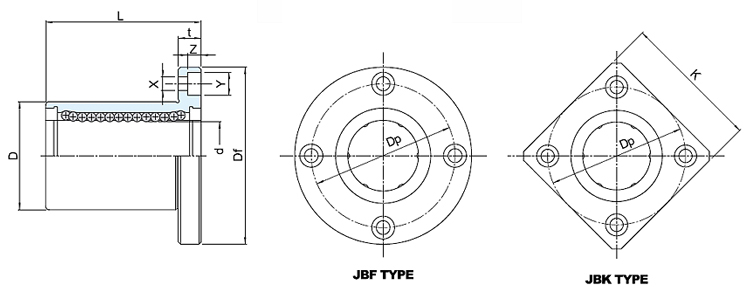

Specifications | HIWIN Linear Bearing – JBF/JBK series

JBF-JBK_model

Shaft Diameter d mm	Model		Major Dimensions and Tolerance															Load Capacity
	JBF Type	JBK Type	d		D		L		Df	K	t	Dp	X	Y	Z	Concentricity µ m	Perpendicularity µ m	Basic Dynamic Load Rating C(N)	Basic Static Load Co(N)
	JBF Type	JBK Type	mm	Tolerance µ m	mm	Tolerance µ m	mm	Tolerance µ m	Df	K	t	Dp	X	Y	Z	Concentricity µ m	Perpendicularity µ m	Basic Dynamic Load Rating C(N)	Basic Static Load Co(N)
8	JBF-08A	JBK-08A	8	0 -9	15	0 -11	24	±300	32	25	5	24	3.5	6	3.1	12	12	274	392
10	JBF-10A	JBK-12A	10		19	0 -13	29	±300	40	30	6	29	4.5	7.5	4.1			372	549
12	JBF-12A	JBK-16A	12		21		30	0 -200	42	32	6	32	4.5	7.5	4.4			412	598
16	JBF-16A	JBK-16A	16		28		37	0 -200	48	37	6	38	4.5	7.5	4.1			782	1176
20	JBF-20A	JBK-20A	20	0 -10	32	0 -16	42	0 -300	54	42	8	43	5.5	9	5.1	15	15	882	1382
25	JBF-25A	JBK-25A	25		40		59		62	50	8	51	5.5	9	5.1			980	1568
30	JBF-30A	JBK-30A	30		45		64		74	58	10	60	6.6	11	6.1			1568	2744
35	JBF-35A	JBK-35A	35	0 -12	52	0 -19	70		82	64	10	67	6.6	11	6.1	20	20	1666	3136
40	JBF-40A	JBK-40A	40	0 -12	60	0 -19	80		96	75	13	78	9	14	8.1	20	20	2156	4018

Both Linear bearing with single side wiper (JBF/JBK…..W) and with double side wiper (JBF/JBK…..WW) are available.
1 Kgf=9.81 N=2.2046 Lbf
