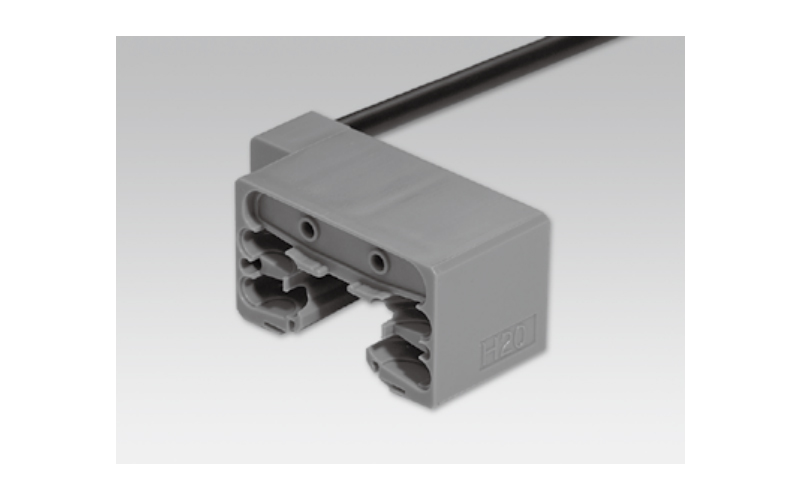

Hiwin Positioning Measurement – H Type

Analog signal output / Avaliable gap up to 4 mm.
Compact design used with Hiwin kinear guideways.
Optimal for space-saving applications. Easy installation.
Resolution is up to 5 µm while integrating with ST-A / Repeatability up to ±10 µm.

Category: Positioning Measurement System Hiwin

Description

Hiwin Positioning Measurement – H Type

Analog signal output / Avaliable gap up to 4 mm.
Compact design used with Hiwin kinear guideways.
Optimal for space-saving applications. Easy installation.
Resolution is up to 5 µm while integrating with ST-A / Repeatability up to ±10 µm.

Positioning Measurement – H Type

Hiwin Positioning Measurement - H Type

Code| Positioning Measurement – H Type

Code| Positioning Measurement - H Type

Specifications | Positioning Measurement – H Type

Pole pitch	5mm
Available gap⁽¹⁾	4mm
Signal format	Analogue
Output signal	SIN/COS 50mVp-p
Resolution	5mm
Repeatability⁽²⁾	±10µm
Maximum travel speed	10m/sec
Input voltage	5VDC±5%
Operating temperature	0 ~ 50 °C
Strorage temperature	-5 ~ 50 °C
Protectopm class	IP67

Note
1. Please refer Chap 6.5 for Gap-Repeatability relationship.
2. The data were measured while gap is 1mm.
