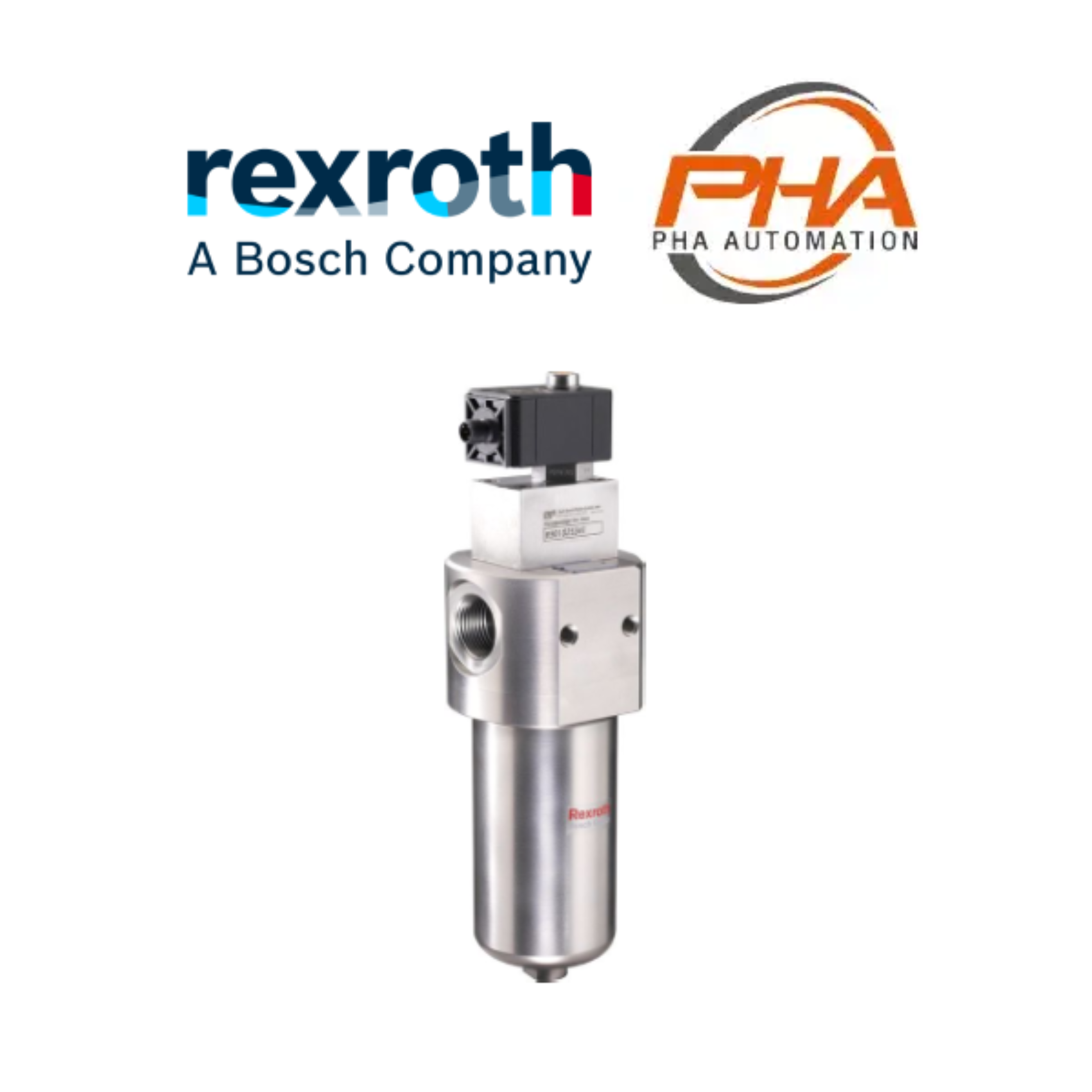

Inline Filters รุ่น 40 EL
ตัวกรองขาเข้า สแตสเลส (Rexroth Stainless steel inline filters)
Inline Filters รุ่น 40 EL
รายละเอียด Rexroth Hydraulic Inline Filters รุ่น 40 EL.
- Size 0004 … 0045
- Max. operating pressure 40 bar
Features
- Filter for inline installation, return flow or bypass with several filter elements in the filter housing
- Special highly efficient filter media
- Filtration of very fine particles and high dirt holding capacity across a broad pressure differential range
- High collapse resistance of the filter elements
- Optionale Ausführung mit mechanisch-optischer Wartungsanzeige mit Memoryfunktion
- Optional equipment with various electrical switching elements, modular design
- Optionale Bypassventile in den Filterelementen integriert
General
| Size | 0004 | 0008 | 0014 | 0015 | 0018 | 0020 | 0030 | 0045 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Ambient temperature range | ϑ | °C | -10 … +100 | |||||||
| Weight | m | kg | 3 | 3.3 | 5 | 5.4 | 5.8 | 11 | 11.8 | 13.2 |
| nominal filter rating | 1 µm | |||||||||
| Size | 0004 | 0008 | 0014 | 0015 | 0018 | 0020 | 0030 | 0045 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Operating pressure | pmax | bar | 40 | |||||||
| Hydraulic fluid temperature range | ϑ | °C | -10 … +100 | |||||||
| NG | C1 – Standard |
|---|---|
| 4 | G 1/2 |
| 8 | G 1/2 |
| 14 | G 1 |
| 15 | G 1 |
| 18 | G 1 |
| 20 | G 1 1/2 |
| 30 | G 1 1/2 |
| 45 | G 1 1/2 |
