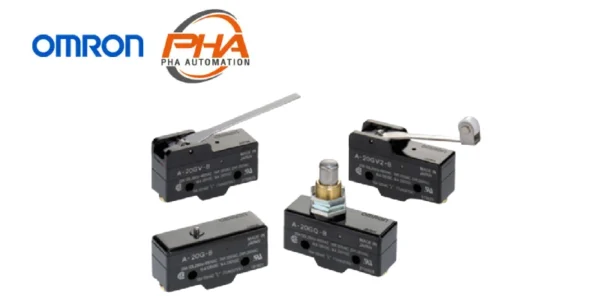

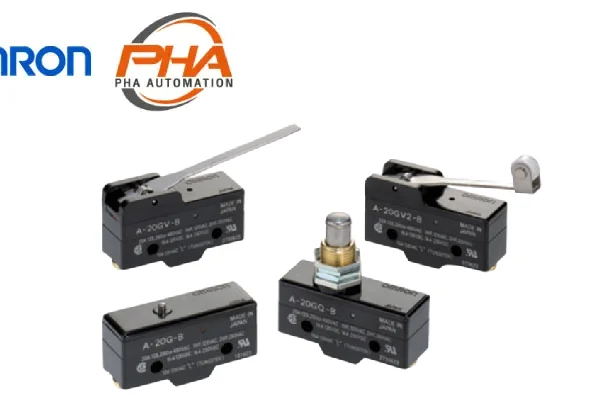

OMRON Basic Switches – A
Model Numbers | Basic Switches – A
Terminal | Solder terminal | Screw terminal (-B) | |
---|---|---|---|
Actuator | Model | Model | |
Pin plunger | A-20G | A-20G-B | |
Short spring plunger | A-20GD | A-20GD-B | |
Panel mount plunger | A-20GQ | A-20GQ-B | |
Panel mount roller plunger | A-20GQ22 | A-20GQ22-B | |
Panel mount cross roller plunger | — | A-20GQ21-B | |
Short hinge lever | A-20GV21 | A-20GV21-B | |
Hinge lever | A-20GV | A-20GV-B | |
Short hinge roller lever | A-20GV22 | A-20GV22-B | |
Hinge roller lever | A-20GV2 | A-20GV2-B |
Accessories (Order Separately)
Terminal Covers (Sold Separately)
The Terminal Covers can be attached to Z, A, X, and DZ Switches.
The Terminal Cover is secured with mounting screws and protects the casing and terminal wires from dust, vibration, or fingers, thus preventing terminal short-circuiting, ground faults, wire disconnection or improper connection, and electric shock accidents.
Terminal Covers made of phenol resin have five or six thin wall sections. These sections can be torn open for providing holes for lead cables at desired points.
A terminal cover can’t be used in the case of using an actuator sold separately.
Note: Use a Terminal Cover for screw terminals fir DZ-series Switches w
Application | Soldering terminal use |
Screw terminal use |
Remarks | |
---|---|---|---|---|
Material | Mounting direction | Model | ||
Phenol resin | Side mounting | AP-A | AP-B | — |
Metal press mold | Side mounting | AP1-A | AP1-B | Used for AP-A and AP-B |
Vinyl chloride | Side mounting | AP-Z | — |
ith soldering terminals.
Separator (Sold Separately)
Use a Separator when it is difficult to provide a sufficient insulation distance or when using the Switch near metal parts or copper wires.
Model |
---|
SEPARATOR FOR Z |
Specifications | Basic Switches – A
Ratings
Rated voltage (V) |
Non-inductive load (A) | Inductive load (A) | ||||||
---|---|---|---|---|---|---|---|---|
Resistive load |
Lamp load | Inductive load |
Motor load | |||||
NC | NO | NC | NO | NC | NO | NC | NO | |
125 VAC 250 VAC 500 VAC |
20 20 15 |
7.5 7.5 4 |
20 20 10 |
12.5 8.3 2 |
||||
8 VDC 14 VDC 30 VDC 125 VDC 250 VDC |
20 20 6 0.5 0.25 |
3 3 3 0.5 0.25 |
1.5 1.5 1.5 0.5 0.25 |
20 15 5 0.05 0.03 |
12.5 12.5 5 0.05 0.03 |
Note:Note:
1. The above values are for steady-state current.
2. Inductive load has a power factor of 0.4 min. (AC) and a time constant of 7 ms max. (DC).
3. Lamp load has an inrush current of 10 times the steady-state current.
4. Motor load has an inrush current of 6 times the steady-state current.
5. The ratings values apply under the following test conditions:
(1) Ambient temperature: 20±2°C
(2) Ambient humidity: 65±5%RH
(3) Operating frequency: 20 operations/min
Characteristics
Operating speed | 0.01 mm to 1m/s * 1 | |
---|---|---|
Operating frequency | Mechanical | 240 operations/min |
Electrical | 20 operations/min | |
Insulation resistance | 100 MΩ min. (at 500 VDC) | |
Contact resistance | 15 mΩ max. (initial value) | |
Dielectric strength | 1,000 VAC, 50/60 Hz for 1 min between terminals of the same polarity 2,000 VAC, 50/60 Hz for 1 min between the current-carrying metal parts and the ground, and between each terminal and non-current- carrying metal parts |
|
Vibration resistance | Malfunction | 10 to 55 Hz, 1.5-mm double amplitude * 2 |
Shock resistance | Destruction | 1,000 m/s2 max. |
Malfunction | 300 m/2 max. * 1 * 2 | |
Durability | Mechanical | 1,000,000 operations min. |
Electrical | 500,000 operations min. | |
Degree of protection | IP00 | |
Degree of protection against electric shock | Class I | |
Proof tracking index (PTI) | 175 | |
Ambient operating temperature | -25 ° C to 80 ° C (with no icing) | |
Ambient operating humidity | 35% to 85%RH | |
Weight | Approx. 22 to 58 g |
Note:*1. The value is for the pin plunger. (Contact your OMRON representative for other models.)
*2. Malfunction: 1 ms max.
Contact Specification
Contacts | Shape | Rivet |
---|---|---|
Material | Silver alloy | |
Gap (standard value) | 0.5 mm | |
Inrush current | NC | 75 A max. |
NO | 75 A max. |
Dimensions | Basic Switches – A
Terminals
Screw Terminals (-B)
Solder Terminal (-A)
(“-A” is not included in the model numbers.)
Note: 1. Appropriate terminal screw tightening torque: 0.78 to 1.18 Nm.
2. Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.
Mounting Holes
Use M4 mounting screws with plane washers or spring washers to securely mount the Switch. Tighten the screws to a torque of 1.18 to 1.47 Nm.
The Switch can be panel mounted, provided that the hexagonal nut of the actuator is tightened to a torque of 2.94 to 4.9 Nm.
The models, illustrations, and graphics are for screw-terminal models. (The dimensions for models that are omitted here are the same as for pin-plunger models.)
Pin Plunger
A-20G-B
Short Spring Plunger
A-20GD-B
Panel Mount Plunger
A-20GQ-B
Note: Do not use both M12 mounting screw and mounting holes at the same time.
Panel Mount Roller Plunger
A-20GQ22-B
Note: Do not use both M12 mounting screw and mounting holes at the same time.
Panel Mount Cross Roller Plunger
A-20GQ21-B
Note: Do not use both M12 mounting screw and mounting holes at the same time.
Note: Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.
Short Hinge Lever
A-20GV21-B
Hinge Lever
A-20GV-B
Short Hinge Roller Lever
A-20GV22-B
Hinge Roller Lever
A-20GV2-B
Note: Unless otherwise specified, a tolerance of ±0.4 mm applies to all dimensions.
Terminal Covers
AP-A
Soldering Terminal Use (Phenol Resin)
Note: The Cover has five thin, easy-to-separate portions for easy lead wire connections.
AP-B
Screw Terminal Use (Phenol Resin)
Note: The Cover has six thin, easy-to-separate portions for easy lead wire connections.
AP1-A
Soldering Terminal Use (Metal Press Mold)
Note: The Cover has five holes for easy lead wire connections.
AP1-B
Screw Terminal Use (Metal Press Mold)
Note: The Cover has six holes for easy lead wire connections.
AP-Z
Soldering or Screw Terminal Use (Vinyl Chloride)
Note: Each dimension has a tolerance of ±0.4 mm unless otherwise specified. (±0.8 mm for the AP-Z)
Separator
SEPARATOR FOR Z
Note: 1. Each dimension has a tolerance of ±0.4 mm unless otherwise specified.
2. The material is EAVTC (Epoxide Alkyd Varnished Tetron Cloth) and its heat-resisting temperature is 130°C.
Features | Basic Switches – A
Same shape as OMRON Z Basic Switches except in pin plunger position, yet endures inrush currents as large as 75 A
Properties | Basic Switches – A
Basic Switches | A |
---|---|
Rated voltage | 125 – 500 VAC |
8 – 250 VDC | |
Service life | 10,000,000 ครั้ง |
Contact resistance | 0.5 mm (default) |
Insuraltion resistance | 100 MΩ min (ที่ 500 VDC) |
Weight (g) | 22 – 58 |
