OMRON Digital Panel Indicator - K3HB-S
OMRON Digital Panel Indicator – K3HB-S
Model Numbers | Digital Panel Indicator – K3HB-R
Model Number Legend
Base Units and Optional Boards can be ordered individually or as sets.
Base Units
Base Units with Optional Boards
Optional Boards
Sensor Power Supply/Output Boards
Relay/Transistor Output Boards
Event Input Boards
1. Input Sensor Code
NB: NPN input/voltage pulse input
PB: PNP input
2. Sensor Power Supply/Output Type Code
None: None
CPA: Relay output (PASS: SPDT) + Sensor power supply (12 VDC±10%, 80 mA) (See note 1.)
L1A: Linear current output (0 to 20 or 4 to 20 mA DC) + Sensor power supply (12 VDC±10%, 80 mA) (See note 2.)
L2A: Linear voltage output (0 to 5, 1 to 5, or 0 to 10 VDC) + Sensor power supply (12 VDC±10%, 80 mA) (See note 2.)
A: Sensor power supply (12 VDC ±10%, 80 mA)
FLK1A: Communications (RS-232C) + Sensor power supply (12 VDC±10%, 80 mA) (See note 2.)
FLK3A: Communications (RS-485) + Sensor power supply (12 VDC±10%, 80 mA) (See note 2.)
Note: 1. CPA can be combined with relay outputs only.
2. Only one of the following can be used by each Digital Indicator: RS-232C/RS-485 communications, a linear
output, or DeviceNet communications.
3. Relay/Transistor Output Type Code
None: None
C1: Relay contact (H/L: SPDT each)
C2: Relay contact (HH/H/LL/L: SPST-NO each)
T1: Transistor (NPN open collector: HH/H/PASS/L/LL)
T2: Transistor (PNP open collector: HH/H/PASS/L/LL)
BCD *:BCD output + transistor output (NPN open collector: HH/H/PASS/L/LL)
DRT: DeviceNet (See note 2.)
* A Special BCD Output Cable (sold separately) is required.
4. Event Input Type Code
None: None
1: 5 inputs (M3 terminal blocks), NPN open collector
2 *: 8 inputs (10-pin MIL connector), NPN open collector
3: 5 inputs (M3 terminal blocks), PNP open collector
4 *: 8 inputs (10-pin MIL connector), PNP open collector
* There is no bank selection for “None” and “DeviceNet” types of “Transistor Output Type Code”.
5. Supply Voltage
100-240 VAC:100 to 240 VAC
24 VAC/VDC: 24 VAC/VDC
Note: The following combinations are not possible.
• Communications (FLK[]A) + DeviceNet (DRT)
• Communications (FLK[]A) + BCD output (BCD)
• Linear current/voltage (L[]A) + DeviceNet (DRT/p)
Accessories (Sold Separately)
K32-DICN: Special Cable (for event inputs with 8-pin connector)
K32-BCD: Special BCD Output Cable
Watertight Cover
| Model |
|---|
| Y92A-49N |
Rubber Packing
| Model |
|---|
| K32-P1 |
Note: Rubber packing is provided with the Controller.
Specifications | Digital Panel Indicator – K3HB-R
Ratings
| Supply voltage | 100 to 240 VAC, 24 VAC/VDC, DeviceNet power supply: 24 VDC | |
|---|---|---|
| Allowable power supply voltage range |
85% to 110% of the rated power supply voltage, DeviceNet power supply: 11 to 25 VDC |
|
| Power consumption *1 | 100 to 240 VAC: 18 VA max. (max. load) 24 VAC/DC: 11 VA/7 W max. (max. load) |
|
| Current consumption | DeviceNet power supply: 50 mA max. (24 VDC) | |
| Input | No-voltage contact, voltage pulse, open collector | |
| External power supply | 12 VDC ±10%, 80 mA (models with external power supply only) | |
| Event inputs *2 |
Startup compensation timer input |
NPN open collector or no-voltage contact signal ON residual voltage: 2 V max. ON current at 0 Ω: 4 mA max. Max. applied voltage: 30 VDC max. OFF leakage current: 0.1 mA max. |
| Hold input | ||
| Reset input | ||
| Bank input | ||
| Output ratings (depends on the model) |
Relay output | 250 VAC, 30 VDC, 5 A (resistive load) Mechanical life expectancy: 5,000,000 operations, Electrical life expectancy: 100,000 operations |
| Transistor output | Maximum load voltage: 24 VDC, Maximum load current: 50 mA, Leakage current: 100 μ A max. |
|
| Linear output | Linear output 0 to 20 mA DC, 4 to 20 mA DC: Load: 500 Ω max, Resolution: Approx. 10,000, Output error: ±0.5% FS Linear output 0 to 5 VDC, 1 to 5 VDC, 0 to 10 VDC: Load: 5 kΩ max, Resolution: Approx. 10,000, Output error: ±0.5% FS (1 V or less: ±0.15 V; no output for 0 V or less) |
|
| Display method | Negative LCD (backlit LED) display 7-segment digital display (Character height: PV: 14.2 mm (green/red); SV: 4.9 mm (green)) |
|
| Main functions | Scaling function, measurement operation selection, averaging, output hysteresis, output OFF delay, output test, teaching, display value selection, display color selection, key protection, bank selection, display refresh period, maximum/ minimum hold, reset |
|
| Ambient operating temperature | – 10 to 55 °C (with no icing or condensation) | |
| Ambient operating humidity | 25% to 85% | |
| Storage temperature | – 25 to 65 °C (with no icing or condensation) | |
| Altitude | 2,000 m max. | |
| Accessories | Watertight packing, 2 fixtures, terminal cover, unit stickers, instruction manual. DeviceNet models also include a DeviceNet connector (Hirose HR31-5.08P-5SC (01)) and crimp terminals (Hirose HR31-SC-121) *3 |
|
*1. DC power supply models require a control power supply capacity of approximately 1 A per Unit when power is turned
ON. Particular attention is required when using two or more DC power supply models. The OMRON S8VS-series DC
Power Supply Unit is recommended.
*2. PNP input types are also available.
*3. For K3HB-series DeviceNet models, use only the DeviceNet Connector included with the product. The crimp terminals
provided are for Thin Cables.
Characteristics
| Display range | – 19,999 to 99,999 | |
|---|---|---|
| Measurement accuracy (at 23±5 °C) |
Functions F1, F6: ±0.006% rgd ±1 digit (for voltage pulse/open collector sensors) Functions F2 to F5: ±0.02% rgd ±1 digit (for voltage pulse/open collector sensors) |
|
| Measurement range | Functions F1 to F6: 0.5 mHz to 50 kHz (for voltage pulse/open collector sensors) | |
| Input signals | Contact input (dry contact input) (30-Hz max. with ON/OFF pulse width of 15 ms min.) No contact voltage pulse (50-KHz max. with ON/OFF pulse width of 9 µs min.; ON voltage: 4.5 to 30 V; OFF voltage: – 30 to 2 V; input impedance: 10 kΩ ) Open collector (50-KHz max. with ON/OFF pulse width of 9 µs min.) |
|
| Connectable sensors | ON residual voltage: 3 V max. OFF leakage current: 1.5 mA max. Load current: Must have a switching capacity of 20 mA or higher. Must be able to properly switch load currents of 5 mA or less. |
|
| Comparative output response time (transistor output) |
Functions F1 to F6: 100 ms max. (time until the comparative output is made when there is a forced sudden change in the input signal from 15% to 95% or 95% to 15%.) |
|
| Linear output response time |
Functions F1 to F6: 110 ms max. (time until the final analog output value is reached when there is a forced sudden change in the input signal from 15% to 95% or 95% to 15%.) |
|
| Insulation resistance | 20 MΩ min. (at 500 VDC) | |
| Dielectric strength | 2,300 VAC for 1 min between external terminals and case | |
| Noise immunity | 100 to 240 VAC models: ± 1,500 V at power supply terminals in normal or common mode (waveform with 1-ns rising edge and pulse width of 1 μs/100 ns) 24 VAC/VDC models: ± 1,500 V at power supply terminals in normal or common mode (waveform with 1-ns rising edge and pulse width of 1 μs/100 ns) |
|
| Vibration resistance | Frequency: 10 to 55 Hz; Acceleration: 50 m/s2, 10 sweeps of 5 min each in X, Y, and Z directions |
|
| Shock resistance | 150 m/s2 (100 m/s2 for relay outputs) 3 times each in 3 axes, 6 directions | |
| Weight | Approx. 300 g (Base Unit only) | |
| Degree of protection |
Front panel | Conforms to NEMA 4X for indoor use (equivalent to IP66) |
| Rear case | IP20 | |
| Terminals | IP00 + finger protection (VDE0106/100) | |
| Memory protection | EEPROM (non-volatile memory) Number of rewrites: 100,000 |
|
| Applicable standards | UL61010-1, CSA C22.2 No.61010-1-04 EN61010-1 (IEC61010-1): Pollution degree 2/Overvoltage category II EN61326-1 |
|
| EMC | EMI: EN61326-1 Industrial electromagnetic environment Electromagnetic radiation interference: CISPR 11 Group 1, Class A Terminal interference voltage: CISPR 11 Group 1, Class A EMS: EN61326-1 Industrial electromagnetic environment Electrostatic Discharge Immunity: EN61000-4-2: 4 kV (contact), 8 kV (in air) Radiated Electromagnetic Field Immunity: EN61000-4-3: 10 V/m 1 kHz sine wave amplitude modulation (80 MHz to 1 GHz, 1.4 to 2 GHz) Electrical Fast Transient/Burst Noise Immunity: EN61000-4-4: 2 kV (power line), 1 kV (I/O signal line) Surge Immunity: EN61000-4-5: 1 kV with line (power line), 2 kV with ground (power line) Conducted Disturbance Immunity: EN61000-4-6: 3 V (0.15 to 80 MHz) Power Frequency Magnetic Immunity: EN61000-4-8: 30 A/m (50 Hz) continuous time Voltage Dips and Interruptions Immunity: EN61000-4-11: 0.5 cycle, 0 ° / 180 °, 100% (rated voltage) |
|

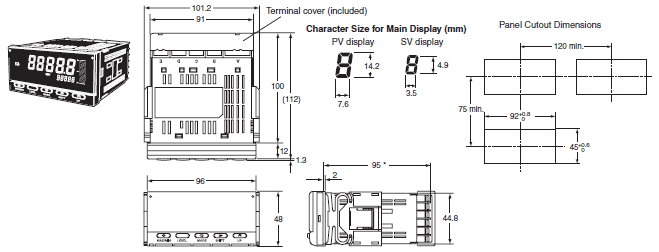

Dimensions | Digital Panel Indicator – K3HB-R
K3HB-R
* DeviceNet models: 97 mm
Terminal: M3, Terminal Cover: Accessory
Mounting Recommended Panel Thickness 1 to 8 mm.
Mount the product horizontally.
Features | Digital Panel Indicator – K3HB-R
- Position meter indication for easy monitoring
- Optional DeviceNet, RS-232C, RS-485
- Double display, with 5 digits, in two colours
- all feature a NEMA4X (IP66 equivalent) front panels
- Measures High-speed Pulses at 50 kHz.
Properties | Digital Panel Indicator – K3HB-R
| Digital Panel Indicator | K3HB-R |
|---|---|
| Power supply | 100 – 240 Vac (50 – 60 Hz) |
| 24 Vac (50 – 60 Hz) / 24 Vdc | |
| Device Net 24 VDC | |
| Input | No voltage contact |
| voltage pulse | |
| open collector | |
| Event input | 2 (NPN) |
| Output | Transistor 24 Vdc |
| Linear current 4 – 20mA / 0 – 20mA | |
| Relay (250Vac, 30Vdc, 5A) | |
| Size (W x L x D) (mm) |
48 x 96 x 101.2 |
| Weight (g) | 300 |
