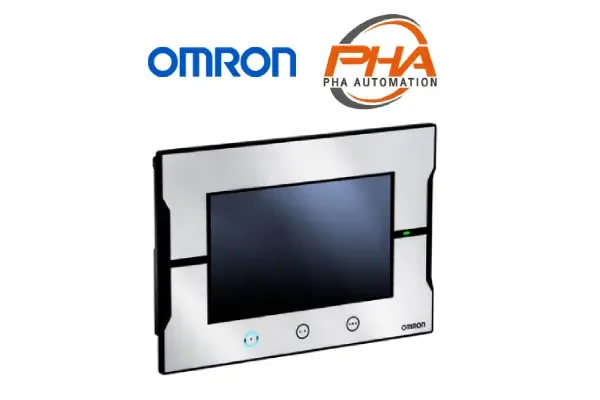

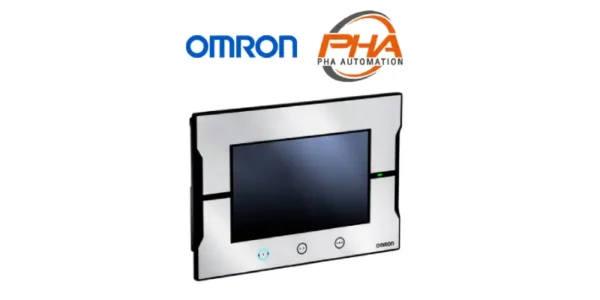

HMI - NA series
OMRON HMI – NA series
Model Numbers | HMI – NA series
NA5-[]W
| Product name | Specifications | Model *1 |
|---|---|---|
| NA5-15W | 15.4 inch wide screen, TFT LCD, 16,770,000 colors (24 bit full color), 1280 × 800 dots, Frame color: Silver |
NA5-15W101S-V1 |
| 15.4 inch wide screen, TFT LCD, 16,770,000 colors (24 bit full color), 1280 × 800 dots, Frame color: Black |
NA5-15W101B-V1 | |
| NA5-12W | 12.1 inch wide screen, TFT LCD, 16,770,000 colors (24 bit full color), 1280 × 800 dots, Frame color: Silver |
NA5-12W101S-V1 |
| 12.1 inch wide screen, TFT LCD, 16,770,000 colors (24 bit full color), 1280 × 800 dots, Frame color: Black |
NA5-12W101B-V1 | |
| NA5-9W | 9 inch wide screen, TFT LCD, 16,770,000 colors (24 bit full color), 800 × 480 dots, Frame color: Silver |
NA5-9W001S-V1 |
| 9 inch wide screen, TFT LCD, 16,770,000 colors (24 bit full color), 800 × 480 dots, Frame color: Black |
NA5-9W001B-V1 | |
| NA5-7W | 7 inch wide screen, TFT LCD, 16,770,000 colors (24 bit full color), 800 × 480 dots, Frame color: Silver |
NA5-7W001S-V1 |
| 7 inch wide screen, TFT LCD, 16,770,000 colors (24 bit full color), 800 × 480 dots, Frame color: Black |
NA5-7W001B-V1 | |
| High-pressure Waterproof Attachment |
This metal frame is for high-pressure waterproofing. Install it to conform to UL Type 4X standards. UL Type 4X is the rating for high-pressure wash-down applications with a flow rate of 246 liter/min. |
NA-15WATW01 |
| NA-12WATW01 | ||
| NA-9WATW01 | ||
| NA-7WATW01 |
*1. For information on the product whose model number does not end with -V1, refer to the Programmable Terminal NA Series Datasheet (Cat. No. V413).
Options
| Product name | Specifications | Model |
|---|---|---|
| SD memory card |
2 GB | HMC-SD291 |
| 4 GB | HMC-SD491 | |
| USB Memory | 2 GB | FZ-MEM2G |
| 8 GB | FZ-MEM8G | |
| Replacement Battery |
Battery life: 5 years (at 25°C). This Battery is provided as an accessory. | CJ1W-BAT01 |
| Anti-reflection Sheets |
For the NA5-15W. Attach a Sheet to the screen to protect against diffused reflections and dirt. The entire Sheet is colorless and transparent. Five Sheets are provided in one set. |
NA-15WKBA04 |
| For the NA5-12W. Attach a Sheet to the screen to protect against diffused reflections and dirt. The entire Sheet is colorless and transparent. Five Sheets are provided in one set. |
NA-12WKBA04 | |
| For the NA5-9W. Attach a Sheet to the screen to protect against diffused reflections and dirt. The entire Sheet is colorless and transparent. Five Sheets are provided in one set. |
NA-9WKBA04 | |
| For the NA5-7W. Attach a Sheet to the screen to protect against diffused reflections and dirt. The entire Sheet is colorless and transparent. Five Sheets are provided in one set. |
NA-7WKBA04 |
Soft-NA
| Product name | Specifications | Number of licenses |
Media | Model |
|---|---|---|---|---|
| Soft-NA | The Soft-NA is software that displays information on FA manufacturing sites while providing safety, reliability, and maintainability as an industrial display on which operations can be performed as necessary. The Soft-NA runs on the following OS: Windows 10 Pro Version 1903 or later 64 bit |
– (Media only) | DVD | NA-RTSM |
| 1 license | USB dongle | NA-RTLD01 | ||
| 3 licenses | NA-RTLD03 | |||
| 10 licenses | NA-RTLD10 |
System Requirements
| Item | Requirement | |
|---|---|---|
| OS | Windows 10 Pro Version 1903 or later 64 bit | |
| Processor | Intel Atom® x5-E3940 equivalent or higher processor | |
| RAM | 4 GB or more | |
| Free space in the hard drive necessary for installation |
1 GB or more | |
| Optical disk drive | DVD-ROM drive | |
| Communication port |
USB | USB2.0 Type-A x 2 *1 |
| LAN | Ethernet x 2 *1 | |
*1. Since one port is for project transfer, it is not required unless the corresponding path is used.
Automation Software
| Product name |
Specifications | Number of licenses |
Media | Model |
|---|---|---|---|---|
| Sysmac Studio Standard Edition Ver.1.[][] |
The Sysmac Studio is the software that provides an integrated environment for setting, programming, debugging and maintenance of machine automation controllers including the NJ/NX Series, EtherCAT Slave, and the HMI. Sysmac Studio runs on the following OS. Windows XP (Service Pack 3 or higher, 32-bit version)/ Windows Vista (32-bit version)/ Windows 7 (32-bit/64-bit version)/ Windows 8 (32-bit/64-bit version)/ Windows 8.1 (32-bit/64-bit version)/ Windows 10 (32-bit/64-bit version) *1 |
– (Media only) | Sysmac Studio (32-bit) DVD |
SYSMAC-SE200D |
| – (Media only) | Sysmac Studio (64-bit) DVD |
SYSMAC-SE200D-64 | ||
| 1 license | – | SYSMAC-SE201L | ||
| 3 licenses | SYSMAC-SE203L | |||
| 10 licenses | SYSMAC-SE210L | |||
| 30 licenses | SYSMAC-SE230L | |||
| 50 licenses | SYSMAC-SE250L |
Note: 1. Site licenses are available for users who will run Sysmac Studio on multiple computers.
Ask your OMRON sales representative for details.
*1. Model “SYSMAC-SE200D-64” runs on Windows 10 (64 bit).
USB Cable
| Product name | Specifications |
|---|---|
| USB Cable | Use commercially available USB cable. Specifications: USB 2.0 cable (A connector – B connector), 5.0 m max. |
Recommended Network Devices
Industrial Switching Hubs
| Product name |
Specifications | Model | ||||
|---|---|---|---|---|---|---|
| Functions | No. of ports |
Failure detection |
Accessories | Current consumption (A) |
||
| Industrial Switching Hubs |
Quality of Service (QoS): EtherNet/IP control data priority Failure detection: Broadcast storm and LSI error detection 10/100BASE-TX, Auto-Negotiation |
3 | No | Power supply connector | 0.22 | W4S1-03B |
| 5 | No | 0.22 | W4S1-05B | |||
| 5 | Yes | • Power supply connector • Connector for informing error |
0.22 | W4S1-05C | ||
Recommended Ethernet Communications Cables
Use STP (shielded twisted-pair) cable of category 5 or higher
| Product name | Recommended manufacturer | Model | |
|---|---|---|---|
| Wire Gauge and Number of Pairs: AWG24, 4-pair Cable |
Cables | Hitachi Metals, Ltd | NETSTAR-C5E SAB 0.5 × 4P CP |
| Kuramo Electric Co. | KETH-SB | ||
| SWCC Showa Cable Systems Co. | FAE-5004 | ||
| RJ45 Connectors | Panduit Corporation | MPS588 | |
Note: 1. We recommend you to use above cable and RJ45 Connectors together.
Specifications | HMI – NA series
Performance Specifications
Display
| Item | Specification | ||||
|---|---|---|---|---|---|
| NA5-15W | NA5-12W | NA5-9W | NA5-7W | ||
| Display panel *1 |
Display device | TFT LCD | |||
| Screen size | 15.4 inches | 12.1 inches | 9.0 inches | 7.0 inches | |
| Resolution | 1,280 × 800 dots (horizontal × vertical) | 800 × 480 dots (horizontal × vertical) | |||
| Colors | 16,770,000 colors (24 bit full colors) | ||||
| Effective display area |
331 × 207 mm (horizontal × vertical) |
261 × 163 mm (horizontal × vertical) |
197 × 118 mm (horizontal × vertical) |
152 × 91 mm (horizontal × vertical) |
|
| View angles | Left: 60°, Right: 60°, Top: 60°, Bottom: 60° | ||||
| Backlight *2 | Life | 50,000 hours min. *3 | |||
| Brightness adjustment |
200 levels | ||||
| Type | LED | ||||
| Front panel indicators *4 |
RUN | Lit green: Normal operation Lit red: Error | |||
*1. There may be some defective pixels in the display. This is not a fault as long as the numbers of defective light and
dark pixels fall within the following standard ranges.
| Model | Standard range |
|---|---|
| NA5-15W[][][][]-V1 NA5-12W[][][][]-V1 NA5-9W[][][][]-V1 NA5-7W[][][][]-V1 |
Number of light and dark pixels: 10 or less. (There must not be 3 consecutive light/dark pixels.) |
*2. The backlight can be replaced at an OMRON maintenance base.
*3. This is the estimated time before brightness is reduced by half at room temperature and humidity. The life expectancy is drastically shortened if Programmable Terminal is used at high temperatures.
*4. The brightness of the front panel indicators is also adjustable when you adjust the brightness of the backlight.
Operation
| Item | Specification | |||
|---|---|---|---|---|
| NA5-15W | NA5-12W | NA5-9W | NA5-7W | |
| Touch panel | Method: Analog resistive membrane type | |||
| Resolution: 16,384 × 16,384 | ||||
| Life: 1,000,000 operations | ||||
| Function keys *1 | 3 inputs (capacitance inputs) | |||
*1. Each function key has blue indicator. The brightness of the function key indicators is also adjustable when you adjust the brightness of the backlight.
Data Capacity
| Item | Specification | |||
|---|---|---|---|---|
| NA5-15W | NA5-12W | NA5-9W | NA5-7W | |
| User data capacity | 256 MB | |||
External Interfaces
| Item | Specifications (Same for all models.) | |
|---|---|---|
| Ethernet ports |
Applications | Port 1: Connecting to anything other than the Sysmac Studio, e.g., device connections and VNC clients Port 2: Connecting to the Sysmac Studio in addition to the applications of port 1. |
| Number of ports | 2 ports | |
| Compliant standards | IEEE 802.3i (10BASE-T), IEEE 802.3u (100BASE-TX), and IEEE 802.3ab (1000Base-T) |
|
| Transmission media | Shielded twisted-pair (STP) cable: Category 5, 5e, or higher | |
| Transmission distance | 100 m | |
| Connector | RJ-45 8P8C modular connector | |
| USB host ports *1 *2 |
Applications | USB Memory Device, keyboard, or mouse |
| Number of ports | 2 ports | |
| Compliant standards | USB 2.0 | |
| Transmission distance | 5 m max. | |
| Connector | Type-A connector | |
| USB slave port *1 |
Applications | Sysmac Studio connection |
| Number of ports | 1 port | |
| Compliant standards | USB 2.0 | |
| Transmission distance | 5 m max. | |
| Connector | Type-B connector | |
| Serial port *3 |
Applications | Device Connection |
| Number of ports | 1 port | |
| Compliant standards | RS-232C | |
| Transmission distance | 15 m max. | |
| Connector | D-DUB 9-pin female connector | |
| SD Memory Card slot |
Applications | To transfer or store the project or to store log data. |
| Number of slots | 1 slot | |
| Compliant standards | SD/SDHC | |
*1. Connection to all USB 2.0-compliant devices is not guaranteed.
*2. Use a USB memory for temporary applications such as transferring data.
*3. The serial port is for future expansion.
Note: 1. For information on the product whose model number does not end with -V1, refer to the Programmable Terminal NA Series Datasheet (Cat. No. V413).
General Specifications
| Item | Specification | |||
|---|---|---|---|---|
| NA5-15W | NA5-12W | NA5-9W | NA5-7W | |
| Rated supply voltage | 24 VDC | |||
| Allowable power supply voltage range |
19.2 to 28.8 VDC (24 VDC ±20%) | |||
| Allowable momentary power interruption time |
Operation for momentary power interruption is not specified. | |||
| Power consumption | 29 W max. | 25 W max. | 23 W max. | 19 W max. |
| Ambient operating temperature |
0 to 50°C *1 *2 | |||
| Ambient storage temperature |
-20 to +60°C *3 | |||
| Ambient operating humidity |
10 to 90% *2 Must be no condensation. |
|||
| Atmosphere | Must be free from corrosive gases. | |||
| Pollution degree | 2 or less: Meets IEC 61010-2-201. | |||
| Noise immunity | 2 kV on power supply line (Conforms to IEC 61000-4-4.) | |||
| Vibration resistance (during operation) |
Conforms to IEC 60068-2-6. 5 to 8.4 Hz with 3.5 mm half amplitude and 8.4 to 150 Hz with 9.8 m/s2 for 100 minutes each in X, Y, and Z directions (Time coefficient of 10 minutes × coefficient factor of 10 = total time of 100 min.) |
|||
| Shock resistance (during operation) |
Conforms to IEC 60028-2-27. 147 m/s2 3 times each in X, Y, and Z directions |
|||
| Dimensions | 420 × 291 × 69 mm (W × H × D) |
340 × 244 × 69 mm (W × H × D) |
290 × 190 × 69 mm (W × H × D) |
236 × 165 × 69 mm (W × H × D) |
| Panel cutout dimensions |
392 +1,0 × 268 +1,0 mm (horizontal × vertical) Panel thickness: 1.6 to 6.0 mm *4 |
310 +1,0 × 221 +1,0 mm (horizontal × vertical) Panel thickness: 1.6 to 6.0 mm *4 |
261 +1,0 × 166 +1,0 mm (horizontal × vertical) Panel thickness: 1.6 to 6.0 mm *4 |
197 +0.5,0 × 141 +0.5,0 mm (horizontal × vertical) Panel thickness: 1.6 to 6.0 mm *4 |
| Weight | 3.2 kg max. | 2.4 kg max. | 1.8 kg max. | 1.4 kg max. |
| Degree of protection |
Front-panel controls: IP65 oil-proof type, UL Type 4X (at initial state) To reinstall the NA Unit in a panel, contact your OMRON representative for replacement of the rubber packing. |
|||
| Battery life | Battery life: 5 years at 25°C The RTC will be backed up for 5 days after the battery runs low. The RTC will be backed up by a super capacitor for 5 minutes after removing the old battery. (This assumes that the power is first turned ON for at least 5 minutes and then turned OFF.) |
|||
| International standards *5 |
UL61010-2-201/CSA C22.2 NO.61010-2-201:14 *6 EMC Directive (2004/108/EC) EN 61131-2:2007 Shipbuilding standards LR, DNV, and NK IP65 oil-proof, UL Type 4X *7(front panel only) UL 121201, 9th Edition/CSA C22.2 NO.213-2017 EAC IEC61131-2:2007 KC Standards KN61131-2 2018 RCM EN61000-6-4:2007+A1:2011 |
|||
*1. The ambient operating temperature is subject to the following restrictions, depending on the mounting angle.
• The ambient operating temperature is 0° to 40°C when the mounting angle is 0° or more and less than 45° to the horizontal.
• The ambient operating temperature is 0° to 50°C when the mounting angle is 45° or more and 90° or less to the horizontal.
• The ambient operating temperature is 0° to 50°C when the mounting angle is 90° or more and 135° or less to the horizontal.
*2. Use the Programmable Terminal within the following temperature and humidity ranges.
*3. Store the Programmable Terminal within the following temperature and humidity ranges.
*4. When the NA-[]WATW01 High-pressure Waterproof Attachment is used, the panel thickness is between 1.6 to 4.5 mm.
*5. Check with your OMRON representative or refer to the following OMRON website for the latest information on the
applicable standards for each model: www.ia.omron.com.
*6. Use power supply Class 2 to conform to UL Standards.
*7. Use the NA-[]WATW01 High-pressure Waterproof Attachment (sold separately) to conform to UL Type 4X.
Note: 1. For information on the product whose model number does not end with -V1, refer to the Programmable Terminal NA Series Datasheet (Cat. No. V413).
Version Information
NA series and Programming Devices
| NA series | Corresponding unit versions/version | ||
|---|---|---|---|
| Model | NA system version | NJ/NX/NY-series Controller NX701-[][][][] NY512-[][][][] NX102-[][][][] NY532-[][][][] NX1P2-[][][][] NJ501-[][][][] NX-CSG320 NJ301-[][][][] NJ101-[][][][] |
Sysmac studio |
| NA5-[][][][][][]-V1 | 1.10 or later | NX-CSG320: 1.00 or later | 1.24 or higher |
| 1.09 or later | NX102: 1.30 or later | 1.23 or higher | |
| 1.08 or later | NX1P2: 1.13 or later NY512: 1.12 or later NY532: 1.12 or later NX701: 1.10 or later NJ101: 1.10 or later NJ501: 1.01 or later NJ501 Database Connection: 1.05 or later NJ301: 1.01 or later |
1.40 or higher | |
Supported Devices
| Manufacturer | Models | Connection method | Communications driver |
|---|---|---|---|
| OMRON | CK3E-1[]10 CK3M-CPU1[]1 |
Built-in Ethernet port | Modbus/TCP |
| NX701-[][][][] NY512-[][][][] NX102-[][][][] NY532-[][][][] NX1P2-[][][][] NJ501-[][][][] NX-CSG320 NJ301-[][][][] NJ101-[][][][] |
Built-in EtherNet/IP port | Ethernet | |
| CJ2H-CPU64/65/66/67/68-EIP CJ2M-CPU31/32/33/34/35 |
Built-in EtherNet/IP port | CIP Ethernet | |
| CJ2H-CPU64/65/66/67/68-EIP CJ2M-CPU31/32/33/34/35 |
CJ1W-EIP21 | ||
| CJ2H-CPU64/65/66/67/68-EIP CJ2M-CPU31/32/33/34/35 |
Built-in EtherNet/IP port | FINS Ethernet | |
| CJ1H-CPU65H/66H/67H CJ1H-CPU65H/66H/67H-R CJ1G-CPU42H/43H/44H/45H CJ1M-CPU11/12/13/21/22/23 CJ2H-CPU64/65/66/67/68(-EIP) CJ2M-CPU11/12/13/14/15 CJ2M-CPU31/32/33/34/35 |
CJ1W-ETN21 CJ1W-EIP21 |
Dimensions | HMI – NA series
(Unit: mm)
NA5-15W101S-V1/-15W101B-V1
Cable Connection Dimensions
NA5-12W101S-V1/-12W101B-V1
Cable Connection Dimensions
NA5-9W001S-V1/-9W001B-V1
Cable Connection Dimensions
NA5-7W001S-V1/-7W001B-V1
Cable Connection Dimensions
Note: 1. For information on the product whose model number does not end with -V1, refer to the Programmable Terminal NA Series Datasheet (Cat. No. V413).
Features | HMI – NA series
With the ever present need for increased performance, the NA family of HMI terminals makes it fast and easy to implement dynamic intuitive user interfaces that will boost productivity and minimize downtime.
- Complete functionality scalable with widescreen across 7”, 9”, 12”, 15” range
- Available in black or silver
- High resolution
Properties | HMI – NA series
| HMI | NA series | |
|---|---|---|
| Graphics | Graphics color | |
| monitor | TFT Touch screen | |
| Memory | 900 MB | |
| Resolution | 12, 15 “ | 1200 x 800 pixel |
| 7, 9 “ | 800 x 480 pixel | |
ติดต่อแผนก Automation & Robots
