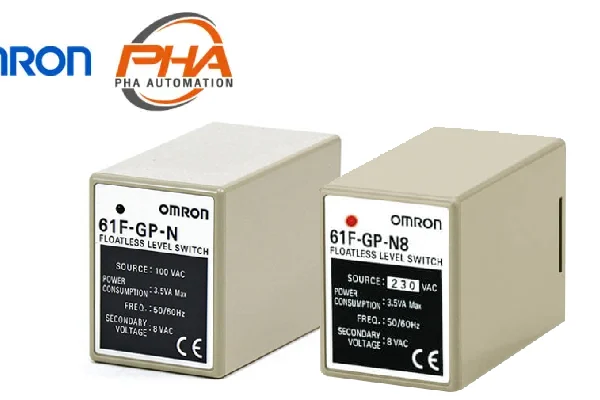

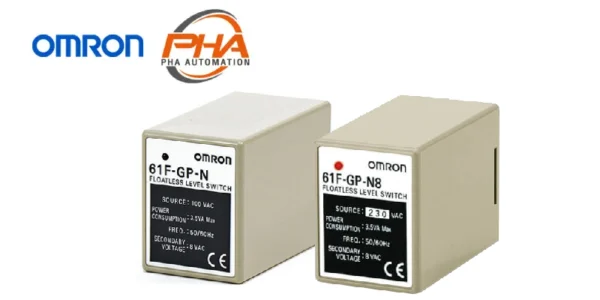

OMRON Level Switches - 61F-GPN-BT / BC

OMRON Level Switches – 61F-GPN-BT / BC

OMRON Level Switches – 61F-GPN-BT / BC ตัวควบคุมระดับของเหลวที่สามารถใช้แบตเตอรี่ 24VDC ได้โดยไม่ต้องใช้แหล่งจ่ายกระแสสลับ โดยใช้หลักการแรงดันไฟฟ้าคลื่นไซน์ระหว่างอิเล้กโรดช่วยให้ตรวจจับได้อย่างเสถียรโดยปราศจากการกัดกร่อนทางไฟฟ้า

เอาต์พุตสามารถตั้งค่าได้ให้เปิดหรือปิด
สามารถปรับตั้งอินพุตให้อยู่ในช่วง 0-100 kΩ เพื่อให้เหมาะสมกับของเหลว
มีทั้งรุ่นรีเลย์และ PNP
มีไฟแอลอีดีบอกสถานะ

OMRON Level Switches – 61F-GPN-BT / BC

Model Numbers | Level Switches – 61F-GPN-BT / BC

Product name	Model number
Conductive Level Controller	61F-GPN-BT 24VDC	61F-GPN-BC 24VDC
Conductive Level Controller	Open collector (NPN)	Relay contact (SPST-NO)
Front Socket	PF113A-E
Electrode Holder	(See note.)

Note: A variety of Holders are available to suit different types of application. For details, refer to 61F Floatless Level Controller (F030-E1).

Specifications | Level Switches – 61F-GPN-BT / BC

Ratings

	61F-GPN-BT	61F-GPN-BC
Rated voltage	24 VDC
Allowable voltage range	85% to 110% of the rated voltage
Interelectrode voltage	5 VAC max.
Operation resistance *1	Variable (0 to 100 kΩ)
Error	For scale of 0: +10 kΩ; For scale of 100: ±10 kΩ
Release resistance	200% max. of the operation resistance
Switching between supply and drainage	Terminals 7 and 8 open: Automatic drainage operation Terminals 7 and 8 shorted: Automatic supply operation
Output specifications	Open collector (NPN) 30 VDC, 100 mA max. Leak current: 100 μ A max.	Relay output, SPST-NO 5 A, 240 VAC (Resistive load) 5 A, 30 VDC
Life expectancy	—	Electrical: 100,000 operations min. Mechanical: 20,000,000 operations min.
Accessories	Hold-down clip PFC-N8
Wiring distance *2	100 m max.

*1. The 61F may not operate at resistance settings close to zero. Adjust the sensitivity to match actual usage conditions.
*2. The figure for wiring distance above is for when 600-V 3-core cabtire cable with a cross-sectional area of 0.75 mm²
is used.

Characteristics

Ambient operating temperature	-10 to 55°C
Ambient operating humidity	25% to 85%
Insulation resistance	100 MΩ min. (at 500 VDC)
Dielectric strength *	2,000 VAC, 50/60 Hz for 1 minute
Power consumption	2 W max.
Response time	Operating: 1.5 s max. Releasing: 3.0 s max.
Approved standards	UL61010-1, CAN/CSA C22.2 No.61010-1 EN61010-1 EN61326-1 Industrial electromagnetic environment

* The dielectric strength is measured between power terminals and electrode terminals, power terminals and output
terminals, and between electrode terminals and output terminals.

Dimensions | Level Switches – 61F-GPN-BT / BC

61F-GPN-BT/BC

61F-GPN-BT / BC Dimensions 1

Features | Level Switches – 61F-GPN-BT / BC

Outputs can be set to self-hold at ON or OFF using special circuits.
Adjustable sensitivity, with an operating resistance range of 0 to 100 kΩ, allows use for a wide variety of liquids.
Relay contact chattering conventionally caused by waves eliminated using open collector output, reducing contact wear.
Meets CE marking and is a UL recognized component.
