Model Numbers | Power Supplies – S8V-NF
Model Number Structure
Model Number Legend
Note: Not all combinations are possible. Refer to List of Model number in Ordering Information, below.
Ordering Information
Note: For details on normal stock models, contact your nearest OMRON representative.
| Rated voltage | Rated current | Model number |
|---|---|---|
| 250 VAC 250 VDC |
3 A | S8V-NFS203 |
| 6 A | S8V-NFS206 |
Mounting Brackets
| Name | Model number |
|---|---|
| Front-mounting bracket | S82Y-VS10F |
| Side-mounting bracket | S82Y-VS10S |
Specifications | Power Supplies – S8V-NF
Ratings and Characteristics
| Rated current | 3 A | 6 A | |
|---|---|---|---|
| Rated voltage | Single-phase 250 VAC 50/60 Hz *1, 250 VDC | ||
| I/O characteristics |
Leakage current | 1.0 mA max. (250 VAC/60 Hz) | |
| DC resistance | 110 MΩ max. | ||
| Attenuation | 25 dB min. (Common Mode: 0.1 to 10 MHz, Normal Mode: 0.2 to 30 MHz) |
||
| Withstand voltage | 2.5 kVAC for 1 min. (between line and ground), current cutoff 10 mA | ||
| Insulation resistance | 100 MΩ min. (500 VDC, 1 min.) | ||
| Environment | Ambient operating temperature |
-40 to 85°C (Derating is required. Refer to Engineering Data) (with no condensation or icing) |
|
| Derating start temperature |
+85°C | +60°C | |
| Storage temperature | -40 to 85°C (with no condensation or icing) | ||
| Ambient operating humidity |
95% (Storage humidity: 95% max.) | ||
| Vibration resistance | 10 to 55 Hz, maximum 5 G, 0.42 mm half amplitude for 2 h each in X, Y, and Z directions |
||
| Shock resistance | 150 m/s2, 3 times each in ±X, ±Y, ±Z directions | ||
| Construction | Weight | 140 g max. | |
| Degree of protection | IP20 by EN/IEC 60529 | ||
| Standards | Safety standards | UL 60939 (Recognition) OVC III (≤3000 m) Pol2 CSA C22.2 No.8 EN 60939 OVC III (≤3000 m) Pol2 ENEC *2 EAC (TR CU 004 / 2011) |
|
*1. If the input is connected to a UPS, do not connect a UPS with a square-wave output. Doing so will cause the internal temperature of the product to increase, possibly causing smoking or damage.
*2. ENEC is a certification that makes product distribution to EU member countries, EFTA (European Free Trade Association) tmember countries, and Eastern European countries possible.
Dimensions | Power Supplies – S8V-NF
(Unit: mm)
S8V-NFS203
S8V-NFS206
Mounting Brackets
DIN Rails (Order Separately)
Mounting Rail (Material: Aluminum)
PFP-100N
PFP-50N
Mounting Rail (Material: Aluminum)
PFP-100N2
End Plate
PFP-M
Note: If there is a possibility that the Unit will be subject to vibration or shock, use a steel DIN Rail. Otherwise, metallic filings may result from aluminum abrasion.
Features | Power Supplies – S8V-NF

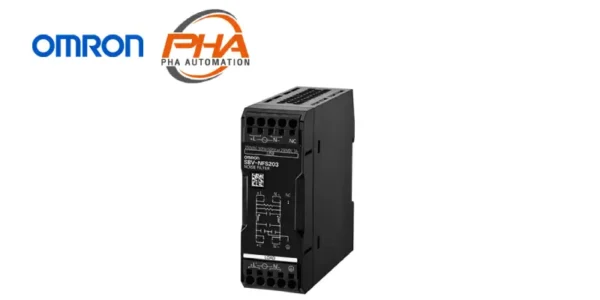

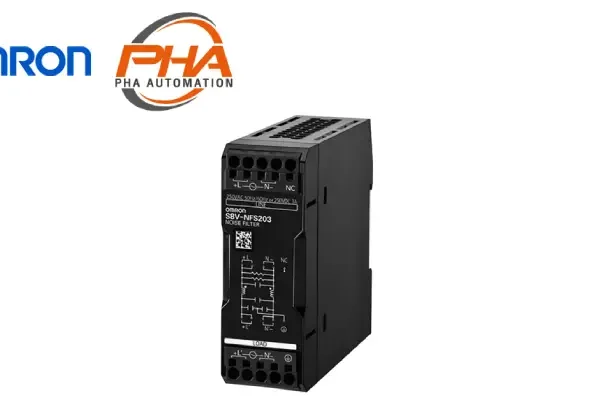

DIN Rail Mounting Type Ideal for Control Panels Featuring a Slim Design that Saves Space Push-In Connections for Safe and Easy Wiring
Properties | Power Supplies – S8V-NF
| Power Supplies | S8V-NF |
|---|---|
| Output | 24V |
| Input | Single-phase 250 VAC |
| Attenuation | 25 dB min |
| DC resistance | 110 MΩ max |
| Withstand voltage | 2.5 kVAC for 1 min |
| Rated current | 3A to 6A |
| Dimensions (W x L x H) mm |
32 x 90 x 90 (3-6A) |
| Weight | 140 g |
