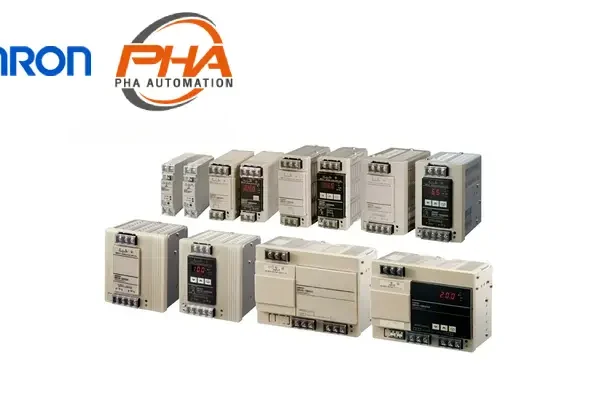

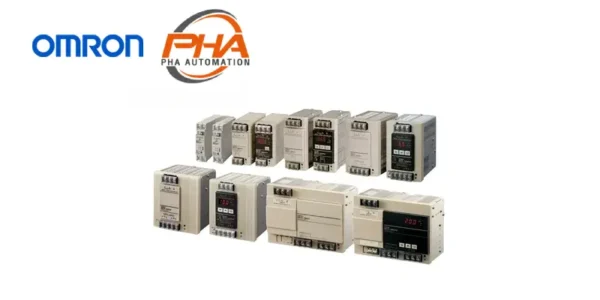

OMRON Power Supplies - S8VS
Model Numbers | Power Supplies – S8VS
Note: For details on normal stock models, contact your nearest OMRON representative.
Models without Indication Monitor (Standard Models)
Power ratings |
Input voltage | Output voltage (VDC) |
Output current | UL Class 2 Output standards |
Model number (screw terminal block) |
Model number (screwless terminal block) |
---|---|---|---|---|---|---|
15 W | 100 to 240 VAC (allowable range: 85 to 264 VAC or 80 to 370 VDC *3) |
5 V | 2.0 A | Yes | S8VS-01505 *1 | — |
12 V | 1.2 A | Yes | S8VS-01512 | |||
24 V | 0.65 A | Yes | S8VS-01524 | |||
30 W | 5 V | 4.0 A | Yes | S8VS-03005 *2 | ||
12 V | 2.5 A | Yes | S8VS-03012 | |||
24 V | 1.3 A | Yes | S8VS-03024 | |||
60 W | 24 V | 2.5 A | Yes | S8VS-06024 | S8VS-06024-F | |
90 W | 3.75 A | — | S8VS-09024 | S8VS-09024-F | ||
Yes | S8VS-09024S | S8VS-09024S-F | ||||
120 W | 5 A | — | S8VS-12024 | S8VS-12024-F | ||
180 W | 7.5 A | — | S8VS-18024 | S8VS-18024-F | ||
240 W | 10 A | — | S8VS-24024 | S8VS-24024-F | ||
480 W | 100 to 240 VAC | 20 A Peak current 30 A (200 VAC) |
— | S8VS-48024 | S8VS-48024-F |
*1. The output capacity of the S8VS-01505 is 10 W.
*2. The output capacity of the S8VS-03005 is 20 W.
*3. The range for compliance with EC Directives and safety standards (UL, EN, etc.) is 100 to 240 VAC (85 to 264 VAC).
Models with Indication Monitor (Maintenance Forecast Monitor)
Power ratings |
Input voltage |
Output voltage (VDC) |
Output current |
Alarm output *2 |
UL Class 2 Output standards |
Model number (screw terminal lock) |
Model number (screwless terminal block) |
---|---|---|---|---|---|---|---|
60 W | 100 to 240 VAC (allowable range: 85 to 264 VAC or 80 to 370 VDC *1) |
24 V | 2.5 A | — | Yes | S8VS-06024A | S8VS-06024A-F |
90 W | 3.75 A | Sinking | — | S8VS-09024A | S8VS-09024A-F | ||
Sinking | Yes | S8VS-09024AS | S8VS-09024AS-F | ||||
Sourcing | — | S8VS-09024AP | S8VS-09024AP-F | ||||
Sourcing | Yes | S8VS-09024APS | S8VS-09024APS-F | ||||
120 W | 5 A | Sinking | — | S8VS-12024A | S8VS-12024A-F | ||
Sourcing | — | S8VS-12024AP | S8VS-12024AP-F | ||||
180 W | 7.5 A | Sinking | — | S8VS-18024A | S8VS-18024A-F | ||
Sourcing | — | S8VS-18024AP | S8VS-18024AP-F | ||||
240 W | 10 A | Sinking | — | S8VS-24024A | S8VS-24024A-F | ||
Sourcing | — | S8VS-24024AP | S8VS-24024AP-F | ||||
480 W | 100 to 240 VAC |
20 A Peak current 30 A (200 VAC) |
Sinking/ sourcing |
— | S8VS-48024A | S8VS-48024A-F |
*1. The range for compliance with EC Directives and safety standards (UL, EN, etc.) is 100 to 240 VAC (85 to 264 VAC).
*2. In the Alarm output column,”sinking” indicates an emitter COM and “sourcing” indicates a collector COM.
Models with Indication Monitor (Total Run Time Monitor)
Power ratings |
Input voltage |
Output voltage (VDC) |
Output current |
Alarm output *2 |
UL Class 2 Output standards |
Model number (screw terminal block) |
Model number (screwless terminal block) |
---|---|---|---|---|---|---|---|
60 W | 100 to 240 VAC (allowable range: 85 to 264 VAC or 80 to 370 VDC) *1 |
24 V | 2.5 A | — | Yes | S8VS-06024B | S8VS-06024B-F |
90 W | 3.75 A | — | — | S8VS-09024BE | S8VS-09024BE-F | ||
— | Yes | S8VS-09024BES | S8VS-09024BES-F | ||||
Sinking | — | S8VS-09024B | S8VS-09024B-F | ||||
Sinking | Yes | S8VS-09024BS | S8VS-09024BS-F | ||||
Sourcing | — | S8VS-09024BP | S8VS-09024BP-F | ||||
Sourcing | Yes | S8VS-09024BPS | S8VS-09024BPS-F | ||||
120 W | 5 A | — | — | S8VS-12024BE | S8VS-12024BE-F | ||
Sinking | — | S8VS-12024B | S8VS-12024B-F | ||||
Sourcing | — | S8VS-12024BP | S8VS-12024BP-F | ||||
180 W | 7.5 A | — | — | S8VS-18024BE | S8VS-18024BE-F | ||
Sinking | — | S8VS-18024B | S8VS-18024B-F | ||||
Sourcing | — | S8VS-18024BP | S8VS-18024BP-F | ||||
240 W | 10 A | — | — | S8VS-24024BE | S8VS-24024BE-F | ||
Sinking | — | S8VS-24024B | S8VS-24024B-F | ||||
Sourcing | — | S8VS-24024BP | S8VS-24024BP-F | ||||
480 W | 100 to 240 VAC |
20 A Peak current 30 A (200 VAC) |
Sinking/ sourcing |
— | S8VS-48024B | S8VS-48024B-F |
*1. The range for compliance with EC Directives and safety standards (UL, EN, etc.) is 100 to 240 VAC (85 to 264 VAC).
*2. In the Alarm output column, “sinking” indicates an emitter COM and “sourcing” indicates a collector COM.
Note: Refer to Data Sheet for the options that available.
Terminal Block Cover (Order Separately)
S8VS | Input side | Output side |
---|---|---|
15W | S82Y-VS-C2P-S | |
30W | S82Y-VS-C2P-S | |
60W | S82Y-VS-C3P | S82Y-VS-C2P-M |
90W | S82Y-VS-C3P | S82Y-VS-C2P-M |
120W | S82Y-VS-C3P | S82Y-VS-C2P-M |
180W | S82Y-VS-C3P | S82Y-VS-C4P |
240W | S82Y-VS-C3P | S82Y-VS-C4P |
480W | S82Y-VS-C3P |
Note: Terminal block cover attaches to the body. Please order from the loss time.

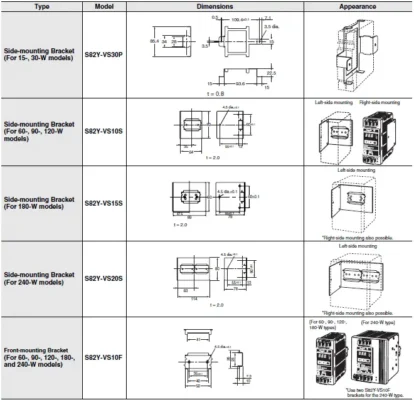

Mounting Brackets
Name | Model |
---|---|
Side-mounting Bracket (for 15- and 30-W models) | S82Y-VS30P |
Side-mounting Bracket (for 60-, 90-, and 120-W models) | S82Y-VS10S |
Side-mounting Bracket (for 180-W models) | S82Y-VS15S |
Side-mounting Bracket (for 240-W models) | S82Y-VS20S |
Front-mounting Bracket (for 60-, 90-, 120-, 180-, and 240-W models) * | S82Y-VS10F |
Note: Brackets cannot be used for 480-W models.
* Two required to mount a 240-W model.
Recommended Noise Filter
Noise filter
S8V-NF
For more information, refer to S8V-NF Noise Filter Data Sheet (Cat. No. T212-E1).
Specifications | Power Supplies – S8VS
Ratings/Characteristics
Power ratings | 15 W | 30 W | ||||||
---|---|---|---|---|---|---|---|---|
Output voltage (VDC) | 5 V | 12 V | 24 V | 5 V | 12 V | 24 V | ||
Efficiency | With 100-VAC input | 74% typical | 79% typical | 83% typical | 74% typical | 81% typical | 85% typical | |
With 200-VAC input | 73% typical | 78% typical | 80% typical | 74% typical | 80% typical | 86% typical | ||
Input | Voltage *1 | 100 to 240 VAC (allowable range: 85 to 264 VAC, 80 to 370 VDC *5) | ||||||
Frequency *1 | 50/60 Hz (47 to 450 Hz) | |||||||
Current | With 100-VAC input | 0.45 A max., 0.34 A typical | 0.9 A max., 0.66 A typical | |||||
With 200-VAC input | 0.25 A max., 0.22 A typical | 0.6 A max., 0.4 A typical | ||||||
Power factor | — | |||||||
Harmonic current regulation | Conforms to EN61000-3-2 | |||||||
Leakage current |
With 100-VAC input | 0.5 mA max. | ||||||
With 200-VAC input | 1.0 mA max. | |||||||
Inrush current *2 |
With 100-VAC input | 17.5 A max., 14 A typical | ||||||
With 200-VAC input | 35 A max., 28 A typical | |||||||
Output | Voltage adjustment range *3 | – 10% to 15% (with V.ADJ) | ||||||
Ripple noise voltage (at rated I/O) | 60 mV max. | 70 mV max. | 60 mV max. | 60 mV max. | 90 mV max. | 150 mV max. | ||
Input variation influence | 0.5% max. (at 85- to 264-VAC input, 100% load) | |||||||
Load variation influence (rated input voltage) |
2.0% max. (5 V), 1.5% max. (12 V, 24 V), (with rated input, 0 to 100% load) | |||||||
Temperature variation influence | 0.05%/°C max. | |||||||
Startup time (at rated I/O) *2 |
With 100-VAC input | 580 ms typical | 530 ms typical | 600 ms typical | 500 ms typical | 560 ms typical | 560 ms typical | |
With 200-VAC input | 340 ms typical | 360 ms typical | 400 ms typical | 360 ms typical | 380 ms typical | 400 ms typical | ||
Output hold time (at rated I/O) *2 |
With 100-VAC input | 39 ms typical | 27 ms typical | 28 ms typical | 31 ms typical | 22 ms typical | 31 ms typical | |
With 200-VAC input | 187 ms typical | 134 ms typical | 134 ms typical | 174 ms typical | 123 ms typical | 140 ms typical | ||
Additional functions |
Overload protection *2 | The range for compliance with EC Directives and safety standards (UL, EN, etc.) is 100 to 240 VAC (85 to 264 VAC). | ||||||
Overvoltage protection *2 | Yes *4 | |||||||
Output voltage indication | No | |||||||
Output current indication | No | |||||||
Peak-hold current indication | No | |||||||
Maintenance forecast monitor indication | No | |||||||
Maintenance forecast monitor output | No | |||||||
Total run time monitor indication | No | |||||||
Total run time monitor output | No | |||||||
Undervoltage alarm indication | Yes (color: red) | |||||||
Undervoltage alarm output | No | |||||||
Parallel operation | No (However, backup operation is possible. An external diode is required.) | |||||||
Series operation | Models with 24-V output: Possible for up to 2 Power Supplies (with external diode) Models with 5- or 12-V output: Not possible |
|||||||
Other | Operating ambient temperature | Refer to the derating curve in Engineering Data. (with no icing or condensation) | ||||||
Storage temperature | – 25 to 65°C | |||||||
Operating ambient humidity | 25% to 85% (Storage humidity: 25% to 90%) | |||||||
Dielectric strength | 3.0 kVAC for 1 min. (between all inputs and outputs; detection current: 20 mA) 2.0 kVAC for 1 min. (between all inputs and PE terminals; detection current: 20 mA) 1.0 kVAC for 1 min. (between all outputs and PE terminals; detection current: 20 mA) |
|||||||
Insulation resistance | 100 MΩ min. (between all outputs and all inputs/PE terminals) at 500 VDC | |||||||
Vibration resistance | 10 to 55 Hz, 0.375-mm single amplitude for 2 h each in X, Y, and Z directions | |||||||
Shock resistance | 150 m/s2 , 3 times each in ±X, ±Y, and ±Z directions | |||||||
Output indicator | Yes (color: green) | |||||||
EMI | Conducted Emissions | Conforms to EN55011 Group1 Class B and based on FCC Class A | ||||||
Radiated Emissions | Conforms to EN55011 Group1 Class B | |||||||
EMS | Conforms to EN61204-3 high severity levels | |||||||
Approved standards | UL 508 (Listing, Class2 Output: Per 1310) UL 62368-1 CSA C22.2 No.107.1 (cUL) (Class2 Output: Per CSA C22.2 No.223) CSA C22.2 No.62368-1 (cUR) EN 50178, EN 62368-1 EAC mark, RCM mark |
|||||||
SEMI | F47-0706 (With 200-VAC input) | |||||||
Weight | 160 g max. | 180 g max. |
*1. Do not use an inverter output for the Power Supply. Inverters with an output frequency of 50/60 Hz are available, but
the rise in the internal temperature of the Power Supply may result in ignition or burning.
*2. For a cold start at 25°C. Refer to Engineering Data on Data Sheet for details.
*3. If the output voltage adjuster (V. ADJ) is turned, the voltage will increase by more than +15% of the voltage
adjustment range. When adjusting the output voltage, confirm the actual output voltage from the Power Supply and be
sure that the load is not damaged.
*4. To reset the protection, turn OFF the input power for three minutes or longer and then turn it back ON.
*5. The range for compliance with EC Directives and safety standards (UL, EN, etc.) is 100 to 240 VAC (85 to 264 VAC).
Power ratings | 60 W | ||||
---|---|---|---|---|---|
Type | Standard | Maintenance forecast monitor |
Total run time monitor |
||
Efficiency | With 100-VAC input | 84% typical | 83% typical | ||
With 200-VAC input | 83% typical | 85% typical | |||
Input | Voltage *1 | 100 to 240 VAC (allowable range: 85 to 264 VAC or 80 to 370 VDC *11) | |||
Frequency *1 | 50/60 Hz (47 to 450 Hz) | ||||
Current | With 100-VAC input | 1.7 A max., 1.3 A typical | 1.7 A max., 1.3 A typical | ||
With 200-VAC input | 1.0 A max., 0.68 A typical | 1.0 A max., 0.78 A typical | |||
Power factor | — | ||||
Harmonic current regulation | Conforms to EN61000-3-2 | ||||
Leakage current | With 100-VAC input | 0.5 mA max. | |||
With 200-VAC input | 1.0 mA max. | ||||
Inrush current *2 | With 100-VAC input | 17.5 A max., 14 A typical | |||
With 200-VAC input | 35 A max., 28 A typical | ||||
Output | Voltage adjustment range *3 | -10% to 15% (with V. ADJ) (The voltage cannot be adjusted for the S8VS-09024[][][]S-[].) | |||
Ripple noise voltage (at rated I/O) | 70 mV max. | 90 mV max. | |||
Input variation influence | 0.5% max. (at 85- to 264-VAC input, 100% load) | ||||
Load variation influence (rated input voltage) | 1.5% max. (with rated input, 0 to 100% load) | ||||
Temperature variation influence | 0.05%/°C max. | ||||
Startup time (at rated I/O) *2 |
With 100-VAC input | 620 ms typical | 460 ms typical | ||
With 200-VAC input | 400 ms typical | 290 ms typical | |||
Output hold time (at rated I/O) *2 |
With 100-VAC input | 34 ms typical | 33 ms typical | ||
With 200-VAC input | 158 ms typical | 154 ms typical | |||
Additional functions |
Overload protection *2 | 105% to 160% of rated load current (101% to 110% of rated load current for the S8VS-09024[][][]S-[]), inverted L voltage drop, intermittent, automatic reset |
|||
Overvoltage protection *2, *4 | Yes | ||||
Output voltage indication *5 | No | Yes (selectable) *6 | |||
Output current indication *5 | No | Yes (selectable) *7 | |||
Peak-hold current indication *5 | No | Yes (selectable) *8 | |||
Maintenance forecast monitor indication *5 | No | Yes (selectable) | No | ||
Maintenance forecast monitor output | No | ||||
Total run time monitor indication *5 | No | Yes (selectable) | |||
Total run time monitor output *5 | No | ||||
Undervoltage alarm indication *5 | No | Yes (selectable) | |||
Undervoltage alarm output terminals | No | ||||
Parallel operation | No (However, backup operation is possible. An external diode is required.) | ||||
Series operation | Yes for up to 2 Power Supplies (with external diode) | ||||
Other | Operating ambient temperature | Refer to the derating curve in . (with no icing or condensation) | |||
Storage temperature | -25 to 65°C | ||||
Operating ambient humidity | 25% to 85% (Storage humidity: 25% to 90%) | ||||
Dielectric strength | 3.0 kVAC for 1 min. (between all inputs and outputs/ alarm outputs; detection current: 20 mA) 2.0 kVAC for 1 min. (between all inputs and PE terminals; detection current: 20 mA) 1.0 kVAC for 1 min. (between all outputs/ alarm outputs and PE terminals; detection current for standard models: 30 mA, detection current for models with indication monitor: 20 mA) 500 VAC for 1 min. (between all outputs and alarm outputs; detection current: 20 mA) |
||||
Insulation resistance | 100 MΩ min. (between all outputs/ alarm outputs and all inputs/ PE terminals) at 500 VDC | ||||
Vibration resistance | 10 to 55 Hz, 0.375-mm single amplitude for 2 h each in X, Y, and Z directions 10 to 150 Hz, 0.35-mm single amplitude (5 G max.) for 80 min each in X, Y, and Z directions |
||||
Shock resistance | 150 m/s2, 3 times each in ±X, ±Y, and ±Z directions | ||||
Output indicator | Yes (color: green) | ||||
EMI | Conducted Emissions |
Models with indication monitor: Conforms to EN55011 Group1 Class A and based on FCC Class A, Conforms to EN55011 Group1 Class B *11 Standard models: Conforms to EN61204-3 EN55011 Group 1 Class B and based on FCC Class A |
|||
Radiated Emissions |
Models with indication monitor: Conforms to EN55011 Group1 Class A, Conforms to EN55011 Group1 Class B *11 Standard models: Conforms to EN55011 Group1 Class B |
||||
EMS | Conforms to EN61204-3 high severity levels | ||||
Approved standards *11 | Standard model: UL 508 (Listing; Class 2 Output: Per UL1310) UL 62368-1 CSA C22.2 No.107.1 (cUL) (Class 2 Output: Per CSA C22.2 No. 223) CSA C22.2 No.62368-1 (cUR) EN 50178, EN 62368-1 EAC mark, RCM mark With indication monitor: UL 508 (Listing, Class2 Output: Per 1310) CSA C22.2 No.107.1 (cUL) (Class2 Output: Per CSA C22.2 No.223) EN 62477-1 EAC mark, RCM mark, KOSHA S Mark *10 |
||||
SEMI *11 | F47-0706 (With 200-VAC input) | ||||
Weight | 330 g max. |
*1. Do not use an inverter output for the Power Supply. Inverters with an output frequency of 50/60 Hz are available, but the rise in the internal temperature of the Power Supply may result in ignition or burning.
*2. For a cold start at 25°C. Refer to Engineering Data on data sheet for details.
*3. If the output voltage adjuster (V. ADJ) is turned, the voltage will increase by more than +15% of the voltage adjustment range (by more than +10% for 240-W models with indication monitor).
When adjusting the output voltage, confirm the actual output voltage from the Power Supply and be sure that the load is not damaged.
*4. To reset the protection, turn OFF the input power for three minutes or longer and then turn it back ON.
*5. Displayed on 7-segment LED. (character height: 8 mm)
*6. Resolution of output voltage indication: 0.1 V, Precision of output voltage indication: ±2% (percentage of output voltage value, ±1 digit)
*7. Resolution of output current indication: 0.1 A; Precision of output current indication: ±5% F.S. ±1 digit max. (specified by rated output voltage)
*8. Resolution of peak-hold current indication: 0.1 A; Precision of peak-hold current indication: ±5% F.S. ±1 digit max. (specified by rated output voltage);
Signal width required for peak-hold current: 20 ms
*9. A Type and B Type: Sinking, AP Type and BP Type: Sourcing, BE Type: No alarm output.
*10. S8VS-06024A, S8VS-09024A/AP, S8VS-12024A/AP, S8VS-18024A/AP, and S8VS-24024A/AP only
*11. The range for compliance with EC Directives and safety standards (UL, EN, etc.) is 100 to 240 VAC (85 to 264 VAC).
Power ratings | 90 W | ||||
---|---|---|---|---|---|
Type | Standard | Maintenance forecast monitor |
Total run time monitor |
||
Efficiency | With 100-VAC input | 83% typical | 83% typical | ||
With 200-VAC input | 84% typical | 85% typical | |||
Input | Voltage *1 | 100 to 240 VAC (allowable range: 85 to 264 VAC or 80 to 370 VDC *11) | |||
Frequency *1 | 50/60 Hz (47 to 450 Hz) | ||||
Current | With 100-VAC input | 2.3 A max., 1.9 A typical | 2.3 A max., 1.9 A typical | ||
With 200-VAC input | 1.4 A max., 1.0 A typical | 1.4 A max., 1.2 A typical | |||
Power factor | — | ||||
Harmonic current regulation | Conforms to EN61000-3-2 | ||||
Leakage current | With 100-VAC input | 0.5 mA max. | |||
With 200-VAC input | 1.0 mA max. | ||||
Inrush current *2 | With 100-VAC input | 17.5 A max., 14 A typical | |||
With 200-VAC input | 35 A max., 28 A typical | ||||
Output | Voltage adjustment range *3 | -10% to 15% (with V. ADJ) (The voltage cannot be adjusted for the S8VS-09024[][][]S-[].) | |||
Ripple noise voltage (at rated I/O) | 250 mV max. | 150 mV max. | |||
Input variation influence | 0.5% max. (at 85- to 264-VAC input, 100% load) | ||||
Load variation influence (rated input voltage) | 1.5% max. (with rated input, 0 to 100% load) | ||||
Temperature variation influence | 0.05%/°C max. | ||||
Startup time (at rated I/O) *2 |
With 100-VAC input | 460 ms typical | 660 ms typical | ||
With 200-VAC input | 300 ms typical | 420 ms typical | |||
Output hold time (at rated I/O) *2 |
With 100-VAC input | 28 ms typical | 28 ms typical | ||
With 200-VAC input | 132 ms typical | 136 ms typical | |||
Additional functions |
Overload protection *2 | 105% to 160% of rated load current (101% to 110% of rated load current for the S8VS-09024[][][]S-[]), inverted L voltage drop, intermittent, automatic reset |
|||
Overvoltage protection *2, *4 | Yes | ||||
Output voltage indication *5 | No | Yes (selectable) *6 | |||
Output current indication *5 | No | Yes (selectable) *7 | |||
Peak-hold current indication *5 | No | Yes (selectable) *8 | |||
Maintenance forecast monitor indication *5 | No | Yes (selectable) | No | ||
Maintenance forecast monitor output | No | Yes (transistor output), 30 VDC max., 50 mA max. *9 | No | ||
Total run time monitor indication *5 | No | Yes (selectable) | |||
Total run time monitor output *5 | No | Yes (transistor output), 30 VDC max., 50 mA max. *9 |
|||
Undervoltage alarm indication *5 | No | Yes (selectable) | |||
Undervoltage alarm output terminals | No | Yes (transistor output), 30 VDC max., 50 mA max. *9 | |||
Parallel operation | No (However, backup operation is possible. An external diode is required.) | ||||
Series operation | Yes for up to 2 Power Supplies (with external diode) | ||||
Other | Operating ambient temperature | Refer to the derating curve in . (with no icing or condensation) | |||
Storage temperature | -25 to 65°C | ||||
Operating ambient humidity | 25% to 85% (Storage humidity: 25% to 90%) | ||||
Dielectric strength | 3.0 kVAC for 1 min. (between all inputs and outputs/ alarm outputs; detection current: 20 mA) 2.0 kVAC for 1 min. (between all inputs and PE terminals; detection current: 20 mA) 1.0 kVAC for 1 min. (between all outputs/ alarm outputs and PE terminals; detection current for standard models: 30 mA, detection current for models with indication monitor: 20 mA) 500 VAC for 1 min. (between all outputs and alarm outputs; detection current: 20 mA) |
||||
Insulation resistance | 100 MΩ min. (between all outputs/ alarm outputs and all inputs/ PE terminals) at 500 VDC | ||||
Vibration resistance | 10 to 55 Hz, 0.375-mm single amplitude for 2 h each in X, Y, and Z directions 10 to 150 Hz, 0.35-mm single amplitude (5 G max.) for 80 min each in X, Y, and Z directions |
||||
Shock resistance | 150 m/s2, 3 times each in ±X, ±Y, and ±Z directions | ||||
Output indicator | Yes (color: green) | ||||
EMI | Conducted Emissions |
Models with indication monitor: Conforms to EN55011 Group1 Class A and based on FCC Class A, Conforms to EN55011 Group1 Class B *11 Standard models: Conforms to EN61204-3 EN55011 Group 1 Class B and based on FCC Class A |
|||
Radiated Emissions |
Models with indication monitor: Conforms to EN55011 Group1 Class A, Conforms to EN55011 Group1 Class B *11 Standard models: Conforms to EN55011 Group1 Class B |
||||
EMS | Conforms to EN61204-3 high severity levels | ||||
Approved standards *11 | Standard model: UL 508 (Listing) (S8VS-09024S-[] only): UL 508 (Listing, Class2 Output: Per 1310) UL 62368-1 CSA C22.2 No.107.1 (cUL) (S8VS-09024S-[] only): CSA C22.2 No.107.1 (cUL) (Class2 Output: Per CSA C22.2 No.223) CSA C22.2 No.62368-1 (cUR) EN 50178, EN 62368-1 EAC mark, RCM mark With indication monitor: UL 508 (Listing) (S8VS-09024[][]S-[] only): UL 508 (Listing, Class2 Output: Per 1310) CSA C22.2 No.107.1 (S8VS-09024[][]S-[] only): CSA C22.2 No.107.1 (cUL) (Class2 Output: Per CSA C22.2 No.223) EN 62477-1 EAC mark, RCM mark, KOSHA S Mark *10 |
||||
SEMI *11 | F47-0706 (With 200-VAC input) | ||||
Weight | 490 g max. |
*1. Do not use an inverter output for the Power Supply. Inverters with an output frequency of 50/60 Hz are available, but the rise in the internal temperature of the Power Supply may result in ignition or burning.
*2. For a cold start at 25°C. Refer to Engineering Data on data sheet for details.
*3. If the output voltage adjuster (V. ADJ) is turned, the voltage will increase by more than +15% of the voltage adjustment range (by more than +10% for 240-W models with indication monitor).
When adjusting the output voltage, confirm the actual output voltage from the Power Supply and be sure that the load is not damaged.
*4. To reset the protection, turn OFF the input power for three minutes or longer and then turn it back ON.
*5. Displayed on 7-segment LED. (character height: 8 mm)
*6. Resolution of output voltage indication: 0.1 V, Precision of output voltage indication: ±2% (percentage of output voltage value, ±1 digit)
*7. Resolution of output current indication: 0.1 A; Precision of output current indication: ±5% F.S. ±1 digit max. (specified by rated output voltage)
*8. Resolution of peak-hold current indication: 0.1 A; Precision of peak-hold current indication: ±5% F.S. ±1 digit max. (specified by rated output voltage);
Signal width required for peak-hold current: 20 ms
*9. A Type and B Type: Sinking, AP Type and BP Type: Sourcing, BE Type: No alarm output.
*10. S8VS-06024A, S8VS-09024A/AP, S8VS-12024A/AP, S8VS-18024A/AP, and S8VS-24024A/AP only
*11. The range for compliance with EC Directives and safety standards (UL, EN, etc.) is 100 to 240 VAC (85 to 264 VAC).
Power ratings | 120 W | 180 W | ||||||
---|---|---|---|---|---|---|---|---|
Type | Standard | Maintenance forecast monitor |
Total run time monitor |
Standard | Maintenance forecast monitor |
Total run time monitor |
||
Efficiency | With 100-VAC input | 84% typical | 83% typical | 85% typical | 85% typical | |||
With 200-VAC input | 87% typical | 85% typical | 88% typical | 87% typical | ||||
Input | Voltage *1 | 100 to 240 VAC (allowable range: 85 to 264 VAC or 80 to 370 VDC *11) | ||||||
Frequency *1 | 50/60 Hz (47 to 63 Hz) | |||||||
Current | With 100-VAC input | 1.9 A max., 1.5 A typical | 2.9 A max., 2.2 A typical | |||||
With 200-VAC input | 1.1 A max., 0.71 A typical |
1.1 A max., 0.72 A typical | 1.6 A max., 1.1 A typical | |||||
Power factor | 0.9 min. | |||||||
Harmonic current regulation | Conforms to EN61000-3-2 | |||||||
Leakage current | With 100-VAC input | 0.5 mA max. | ||||||
With 200-VAC input | 1.0 mA max. | |||||||
Inrush current *2 |
With 100-VAC input | 17.5 A max., 14 A typical | ||||||
With 200-VAC input | 35 A max., 28 A typical | |||||||
Output | Voltage adjustment range *3 | – 10% to 15% (with V.ADJ) | ||||||
Ripple noise voltage (at rated I/O) | 60 mV max. | 130 mV max. | 50 mV max. | 180 mV max. | ||||
Input variation influence | 0.5% max. (at 85- to 264-VAC input, 100% load) | |||||||
Load variation influence (rated input voltage) | 1.5% max. (with rated input, 0 to 100% load) | |||||||
Temperature variation influence | 0.05%/°C max. | |||||||
Startup time (at rated I/O) *2 |
With 100-VAC input | 550 ms typical | 650 ms typical | 570 ms typical | 580 ms typical | |||
With 200-VAC input | 400 ms typical | 520 ms typical | 470 ms typical | 490 ms typical | ||||
Output hold time (at rated I/O) *2 |
With 100-VAC input | 52 ms typical | 56 ms typical | 58 ms typical | 70 ms typical | |||
With 200-VAC input | 54 ms typical | 56 ms typical | 62 ms typical | 70 ms typical | ||||
Additional functions |
Overload protection *2 | 105% to 160% of rated load current, inverted L voltage drop, automatic reset | ||||||
Overvoltage protection *2, *4 | Yes | |||||||
Output voltage indication *5 | No | Yes (selectable) *6 | No | Yes (selectable) *6 | ||||
Output current indication *5 | No | Yes (selectable) *7 | No | Yes (selectable) *7 | ||||
Peak-hold current indication *5 | No | Yes (selectable) *8 | No | Yes (selectable) *8 | ||||
Maintenance forecast monitor indication *5 | No | Yes (selectable) | No | No | Yes (selectable) | No | ||
Maintenance forecast monitor output | No | Yes (transistor output), 30 VDC max., 50 mA max. *9 |
No | No | Yes (transistor output), 30 VDC max., 50 mA max. *9 |
No | ||
Total run time monitor indication *5 | No | Yes (selectable) | No | Yes (selectable) | ||||
Total run time monitor output *5 | No | Yes (transistor output), 30 VDC max., 50 mA max. *9 |
No | Yes (transistor output), 30 VDC max., 50 mA max. *9 |
||||
Undervoltage alarm indication *5 | No | Yes (selectable) | No | Yes (selectable) | ||||
Undervoltage alarm output terminals | No | Yes (transistor output), 30 VDC max., 50 mA max. *9 |
No | Yes (transistor output), 30 VDC max., 50 mA max. *9 |
||||
Parallel operation | No (However, backup operation is possible. An external diode is required.) | |||||||
Series operation | Yes for up to 2 Power Supplies (with external diode) | |||||||
Other | Operating ambient temperature | Refer to the derating curve in Engineering Data. (with no icing or condensation) | ||||||
Storage temperature | – 25 to 65°C | |||||||
Operating ambient humidity | 25% to 85% (Storage humidity: 25% to 90%) | |||||||
Dielectric strength | 3.0 kVAC for 1 min. (between all inputs and outputs/alarm outputs; detection current: 20 mA) 2.0 kVAC for 1 min. (between all inputs and PE terminals; detection current: 20 mA) 1.0 kVAC for 1 min. (between all outputs/alarm outputs and PE terminals; detection current for standard models: 30 mA, detection current for models with indication monitor: 20 mA 500 VAC for 1 min. (between all outputs and alarm outputs; detection current: 20 mA) |
|||||||
Insulation resistance | 100 MΩ min. (between all outputs/alarm outputs and all inputs/PE terminals) at 500 VDC |
|||||||
Vibration resistance | 10 to 55 Hz, 0.375-mm single amplitude for 2 h each in X, Y, and Z directions 10 to 150 Hz, 0.35-mm single amplitude (5 G max.) for 80 min each in X, Y, and Z directions |
|||||||
Shock resistance | 150 m/s2 , 3 times each in ±X, ±Y, and ±Z directions | |||||||
Output indicator | Yes (color: green) | |||||||
EMI | Conducted Emissions | Models with indication monitor: Conforms to EN55011 Group1 Class A and based on FCC Class A, Conforms to EN55011 Group1 Class B *11 Standard models: Conforms to EN55011 Group1 Class B and based on FCC Class A |
||||||
Radiated Emissions | Models with indication monitor: Conforms to EN55011 Group1 Class A, Conforms to EN55011 Group1 Class B *11 Standard models: Conforms to EN55011 Group1 Class B |
|||||||
EMS | Conforms to EN61204-3 high severity levels | |||||||
Approved standards *11 | UL 508 (Listing) CSA C22.2 No. 107.1 (cUL) EN 62477-1 EAC mark, RCM mark, KOSHA S Mark *10 |
|||||||
SEMI *11 | F47-0706 (200-VAC input) | |||||||
Weight | 550 g max. | 850 g max. |
*1. Do not use an inverter output for the Power Supply. Inverters with an output frequency of 50/60 Hz are available, but the rise in the internal temperature of the Power Supply may result in ignition or burning.
*2. For a cold start at 25°C. Refer to Engineering Data on data sheet for details.
*3. If the output voltage adjuster (V. ADJ) is turned, the voltage will increase by more than +15% of the voltage adjustment range (by more than +10% for 240-W models with indication monitor).
When adjusting the output voltage, confirm the actual output voltage from the Power Supply and be sure that the load is not damaged.
*4. To reset the protection, turn OFF the input power for three minutes or longer and then turn it back ON.
*5. Displayed on 7-segment LED. (character height: 8 mm)
*6. Resolution of output voltage indication: 0.1 V, Precision of output voltage indication: ±2% (percentage of output voltage value, ±1 digit)
*7. Resolution of output current indication: 0.1 A; Precision of output current indication: ±5% F.S. ±1 digit max. (specified by rated output voltage)
*8. Resolution of peak-hold current indication: 0.1 A; Precision of peak-hold current indication: ±5% F.S. ±1 digit max. (specified by rated output voltage);
Signal width required for peak-hold current: 20 ms
*9. A Type and B Type: Sinking, AP Type and BP Type: Sourcing, BE Type: No alarm output.
*10. S8VS-06024A, S8VS-09024A/AP, S8VS-12024A/AP, S8VS-18024A/AP, and S8VS-24024A/AP only
*11. The range for compliance with EC Directives and safety standards (UL, EN, etc.) is 100 to 240 VAC (85 to 264 VAC).
Power ratings | 240 W | 480 W | ||||||
---|---|---|---|---|---|---|---|---|
Item Type | Standard | Maintenance forecast monitor |
Total run time monitor |
Standard | Maintenance forecast monitor |
Total run time monitor |
||
Efficiency | With 100-VAC input | 85% typical | 89% typical | |||||
With 200-VAC input | 88% typical | 93% typical | ||||||
Input | Voltage *1 | 100 to 240 VAC (allowable range: 85 to 264 VAC or 80 to 370 VDC *11) |
100 to 240 VAC (allowable range: 85 to 264 VAC) |
|||||
Frequency *1 | 50/60 Hz (47 to 63 Hz) | |||||||
Current | With 100-VAC input | 3.8 A max., 2.9 A typical | 7.4 A max., 5.8 A typical | |||||
With 200-VAC input | 2.0 A max., 1.5 A typical | 3.9 A max., 2.8 A typical | ||||||
Power factor | 0.9 min. | 0.95 min. | ||||||
Harmonic current regulation | Conforms to EN61000-3-2 | |||||||
Leakage current | With 100-VAC input | 0.5 mA max. | ||||||
With 200-VAC input | 1.0 mA max. | |||||||
Inrush current *2 |
With 100-VAC input | 17.5 A max., 14 A typical | ||||||
With 200-VAC input | 35 A max., 28 A typical | |||||||
Output | Voltage adjustment range *3 | – 10% to 15% (with V.ADJ) | -10% to 15% (with V.ADJ) | |||||
Ripple noise voltage (at rated I/O) | 140 mV max. | 160 mV max. | 310 mV max. | |||||
Input variation influence | 0.5% max. (at 85- to 264-VAC input, 100% load) | |||||||
Load variation influence (rated input voltage) |
1.5% max. (with rated input, 0 to 100% load) | |||||||
Temperature variation influence | 0.05%/°C max. | |||||||
Startup time (at rated I/O) *2 |
With 100-VAC input | 540 ms typical | 510 ms typical | 550 ms typical | ||||
With 200-VAC input | 230 ms typical | 510 ms typical | 550 ms typical | |||||
Output hold time (at rated I/O) *2 |
With 100-VAC input | 64 ms typical | 46 ms typical | 37 ms typical | ||||
With 200-VAC input | 64 ms typical | 46 ms typical | 41 ms typical | |||||
Additional functions |
Overload protection *2 | 105% to 160% of rated load current, inverted L voltage drop, automatic reset |
151% to 165% of rated load current, inverted L voltage drop, intermittent, automatic reset |
|||||
Overvoltage protection *2, *4 | Yes | |||||||
Output voltage indication *5 | No | Yes (selectable) *6 | No | Yes (selectable) *6 | ||||
Output current indication *5 | No | Yes (selectable) *7 | No | Yes (selectable) *7 | ||||
Peak-hold current indication *5 | No | Yes (selectable) *8 | No | Yes (selectable) *8 | ||||
Maintenance forecast monitor indication *5 | No | Yes (selectable) | No | Yes (selectable) | No | |||
Maintenance forecast monitor output | No | Yes (transistor output), 30 VDC max., 50 mA max. *9 |
No | Yes (transistor output), 30 VDC max., 50 mA max. |
No | |||
Total run time monitor indication *5 | No | Yes (selectable) | No | Yes (selectable) |
||||
Total run time monitor output *5 | No | Yes (transistor output), 30 VDC max., 50 mA max. *9 |
No | Yes (transistor output), 30 VDC max., 50 mA max. *9 |
||||
Undervoltage alarm indication *5 | No | Yes (selectable) | No | Yes (selectable) | ||||
Undervoltage alarm output terminals | No | Yes (transistor output), 30 VDC max., 50 mA max. *9 |
No | Yes (transistor output), 30 VDC max., 50 mA max. *9 |
||||
Parallel operation | No (However, backup operation is possible. An external diode is required.) | |||||||
Series operation | Yes for up to 2 Power Supplies (with external diode) | |||||||
Other | Operating ambient temperature |
Refer to the derating curve in Engineering Data. (with no icing or condensation) | ||||||
Storage temperature | – 25 to 65°C | |||||||
Operating ambient humidity |
25% to 85% (Storage humidity: 25% to 90%) | |||||||
Dielectric strength | 3.0 kVAC for 1 min. (between all inputs and outputs/alarm outputs; detection current: 20 mA) 2.0 kVAC for 1 min. (between all inputs and PE terminals; detection current: 20 mA) 1.0 kVAC for 1 min. (between all outputs/alarm outputs and PE terminals; detection current for standard 240-W and 480-W models: 30 mA, detection current for 240-W models with indication monitor: 20 mA) 500 VAC for 1 min. (between all outputs and alarm outputs; detection current: 20 mA) |
|||||||
Insulation resistance | 100 MΩ min. (between all outputs/alarm outputs and all inputs/PE terminals) at 500 VDC |
|||||||
Vibration resistance | 10 to 55 Hz, 0.375-mm single amplitude for 2 h each in X, Y, and Z directions 10 to 150 Hz, 0.35-mm single amplitude (5 G max.) for 80 min each in X, Y, and Z directions: 240 W 10 to 150 Hz, 0.35-mm single amplitude (3 G max.) for 80 min each in X, Y, and Z directions: 480 W |
|||||||
Shock resistance | 150 m/s2 , 3 times each in ±X, ±Y, and ±Z directions | |||||||
Output indicator | Yes (color: green) | |||||||
EMI | Conducted Emissions |
Models with indication monitor: Conforms to EN55011 Group1 Class A and based on FCC Class A, Conforms to EN55011 Group1 Class B *11 Standard models: Conforms to EN55011 Group1 Class B and based on FCC Class A |
Conforms to EN55011 Group1 Class A and based on FCC Class A Conforms to EN55011 Group1 Class B *11 |
|||||
Radiated Emissions | Models with indication monitor: Conforms to EN55011 Group1 Class A, Conforms to EN55011 Group1 Class B *11 Standard models: Conforms to EN55011 Group1 Class B |
Conforms to EN55011 Group1 Class A Conforms to EN55011 Group1 Class B *11 |
||||||
EMS | Conforms to EN61204-3 high severity levels | |||||||
Approved standards *11 | UL 508 (Listing) CSA C22.2 No.107.1 (cUL) EN 62477-1 EAC mark, RCM mark, KOSHA S Mark *10 |
UL 508 (Listing) UL 62368-1 (Recognition) CSA C22.2 No.107.1 (cUL) CSA C22.2 No. 62368-1 (cUR) EN 50178 (=VDE 0160), EN 62368-1 EAC mark, RCM mark |
||||||
SEMI *11 | F47-0706 (200-VAC input) | |||||||
Weight | 1,150 g max. | 1,700 g max. |
*1. Do not use an inverter output for the Power Supply. Inverters with an output frequency of 50/60 Hz are available, but the rise in the internal temperature of the Power Supply may result in ignition or burning.
*2. For a cold start at 25°C. Refer to Engineering Data on data sheet for details.
*3. If the output voltage adjuster (V. ADJ) is turned, the voltage will increase by more than +15% of the voltage adjustment range (by more than +10% for 240-W models with indication monitor).
When adjusting the output voltage, confirm the actual output voltage from the Power Supply and be sure that the load is not damaged.
*4. To reset the protection, turn OFF the input power for three minutes or longer and then turn it back ON.
*5. Displayed on 7-segment LED. (character height: 8 mm)
*6. Resolution of output voltage indication: 0.1 V, Precision of output voltage indication: ±2% (percentage of output voltage value, ±1 digit)
*7. Resolution of output current indication: 0.1 A; Precision of output current indication: ±5% F.S. ±1 digit max. (specified by rated output voltage)
*8. Resolution of peak-hold current indication: 0.1 A; Precision of peak-hold current indication: ±5% F.S. ±1 digit max. (specified by rated output voltage);
Signal width required for peak-hold current: 20 ms
*9. A Type and B Type: Sinking, AP Type and BP Type: Sourcing, BE Type: No alarm output.
*10. S8VS-06024A, S8VS-09024A/AP, S8VS-12024A/AP, S8VS-18024A/AP, and S8VS-24024A/AP only
*11. The range for compliance with EC Directives and safety standards (UL, EN, etc.) is 100 to 240 VAC (85 to 264 VAC).
Dimensions | Power Supplies – S8VS
(Unit: mm)
Power Supplies with Screw Terminal Blocks
S8VS-015[][] (15 W)
S8VS-030[][] (30 W)
S8VS-06024 (60 W)
S8VS-06024A (60 W)
S8VS-06024B (60 W)
S8VS-09024 (90 W)/S8VS-09024S (90 W)/S8VS-12024 (120 W) S8VS-09024A[] (90 W)/S8VS-09024A[]S (90 W)/S8VS-12024A[] (120 W) S8VS-09024B[] (90 W)/S8VS-09024B[]S (90 W)/S8VS-12024B[] (120 W) S8VS-09024BE (90 W)/S8VS-09024BES (90 W)/S8VS-12024BE (120 W)
S8VS-18024 (180 W) S8VS-18024A[] (180 W) S8VS-18024B[] (180 W) S8VS-18024BE (180 W)
S8VS-24024 (240 W) S8VS-24024A[] (240 W) S8VS-24024B[] (240 W) S8VS-24024BE (240 W)
S8VS-48024 (480 W) S8VS-48024A (480 W) S8VS-48024B (480 W)
Power Supplies with Screwless Terminal Blocks
S8VS-06024-F (60 W) S8VS-06024A-F (60 W) S8VS-06024B-F (60 W)
S8VS-09024-F (90 W)/S8VS-09024S-F (90 W)/S8VS-12024-F (120 W) S8VS-09024A[]-F (90 W)/S8VS-09024A[]S-F (90 W )/S8VS-12024A[]-F (120 W) S8VS-09024B[]-F (90 W)/S8VS-09024B[]S-F (90 W)/S8VS-12024B[]-F (120 W) S8VS-09024BE-F (90 W)/S8VS-09024BES-F (90 W)/S8VS-12024BE-F (120 W)
S8VS-18024-F (180 W) S8VS-18024A[]-F (180 W) S8VS-18024B[]-F (180 W) S8VS-18024BE-F (180 W)
S8VS-24024-F (240 W) S8VS-24024A[]-F (240 W) S8VS-24024B[]-F (240 W) S8VS-24024BE-F (240 W)
S8VS-48024-F (480 W) S8VS-48024A-F (480 W) S8VS-48024B-F (480 W)
DIN Rail (Order Separately)
Mounting Rail (Material: Aluminum)
PFP-100N
PFP-50N
Mounting Rail (Material: Aluminum)
PFP-100N2
End Plate
PFP-M
Note: If there is a possibility that the Unit will be subject to vibration or shock, use a steel DIN Rail. Otherwise, metallic filings may result from aluminum abrasion.
Mounting Brackets
Features | Power Supplies – S8VS
- Status displayed on 3-digit, 7-segment display. *
- Signal output notifications at 90 W or more. *
- Conformity to various safety standards for global usability.
- Varied coverage with 3-year warranty.
- DIN rail mounting supported.
* Models with indication monitor
Properties | Power Supplies – S8VS
Power Supplies | S8VS | ||
---|---|---|---|
Power rating | 15 – 480 W | ||
Output | 24 V | ||
Input | 100 – 240 VDC | ||
Frequency | 50 – 50 Hz | ||
Power factor | 0.9 | ||
Rated output current | N/A | ||
Dimensions (W x L x D) mm |
Power Supplies with Screw Terminal Blocks | 15 – 30 W | 22.5 x 85 x 96.4 |
60 W | 40 x 95 x 103.3 | ||
120 W | 50 x 115 x 116.2 | ||
180 W | 75 x 115 x 120.3 | ||
240 W | 100 x 115 x 120.2 | ||
480 W | 115 x 150 x 127.2 | ||
Power Supplies with Screwless Terminal Blocks | 60 W | 40 x 95 x 102.3 | |
120 W | 50 x 115 x 115.3 | ||
180 W | 75 x 115 x 119.3 | ||
240 W | 100 x 115 x 119.3 | ||
480 W | 115 x 150 x 122.2 | ||
Weight | 160g – 1,700g |
