OMRON Proximity Sensor - E2EQ NEXT
OMRON Proximity Sensor Cylindrical – E2EQ NEXT
Model Numbers | Proximity Sensor Cylindrical – E2EQ NEXT
DC 3-wire PREMIUM Model
E2EQ NEXT Series Model Number Legend
No. | Type | Code | Meaning |
---|---|---|---|
(1) | Case | Blank | Wihtout spatter-resistance coating |
Q | Wiht spatter-resistance coating | ||
(2) | Sensing distance | Number | Sensing distance (Unit: mm) |
(3) | Shielding | Blank | Shielded |
M | Unshielded | ||
(4) | Output configuration | B | PNP open collector |
C | NPN open collector | ||
(5) | Operation mode | 1 | Normally open (NO) |
2 | Normally closed (NC) | ||
3 | Normally open, Normally closed (NO+NC) | ||
(6) | IO-Link baud rate | Blank | Non IO-Link compliant |
D | COM2 (38.4 kbps) | ||
T | COM3 (230.4 kbps) | ||
(7) | Body size | Blank | Standard |
L | Length | ||
(8) | Size | 8 | M8 |
12 | M12 | ||
18 | M18 | ||
30 | M30 | ||
(9) | Connection method | Blank | Pre-wired Models |
M1 | M12 Connector Models | ||
M3 | M8 (4-pin) Connector Models | ||
M5 | M8 (3-pin) Connector Models | ||
M1TJ | M12 Pre-wired Smartclick Connector Models | ||
M1TJR | M12 Pre-wired Smartclick Connector Models Robot (bending-resistance) cable |
||
(10) | Cable specifications * | blank | Standard PVC cable |
R | Robot (bending-resistance) cable | ||
(11) | Cable Length | Number M | Cable Length |
* (10) is only shown in the model number of Pre-wired Models.
หมายเหตุ: The purpose of this model number legend is to provide understanding of the meaning of specifications from the model number. Model are not available for combinations of code numbers.
E2EQ NEXT Series (Spatter-resistant Triple distance model)
DC 3-wire
Shielded *1
Size (Sensing distance) |
Connection method | Body size | Operation mode | Model | ||
---|---|---|---|---|---|---|
PNP | NPN | |||||
IO-Link (COM3) | IO-Link (COM2) *3 | — *3 | ||||
M8 (3 mm) | Pre-wired (2 m) *2 | 38 mm | NO | E2EQ-X3B1T8 2M | E2EQ-X3B1D8 2M | E2EQ-X3C18 2M |
NC | – | E2EQ-X3B28 2M | E2EQ-X3C28 2M | |||
M12 Pre-wired Smartclick Connector (0.3 m) | 38 mm | NO | E2EQ-X3B1T8-M1TJ 0.3M | E2EQ-X3B1D8-M1TJ 0.3M | E2EQ-X3C18-M1TJ 0.3M | |
NC | – | E2EQ-X3B28-M1TJ 0.3M | E2EQ-X3C28-M1TJ 0.3M | |||
M12 Connector | 43 mm | NO | E2EQ-X3B1T8-M1 | E2EQ-X3B1D8-M1 | E2EQ-X3C18-M1 | |
NC | – | E2EQ-X3B28-M1 | E2EQ-X3C28-M1 | |||
M12 (6 mm) |
Pre-wired (2 m) *2 | 47 mm | NO | E2EQ-X6B1T12 2M | E2EQ-X6B1D12 2M | E2EQ-X6C112 2M |
NC | – | E2EQ-X6B212 2M | E2EQ-X6C212 2M | |||
NO + NC | – | E2EQ-X6B3D12 2M | E2EQ-X6C312 2M | |||
M12 Pre-wired Smartclick Connector (0.3 m) | 47 mm | NO | E2EQ-X6B1T12-M1TJ 0.3M | E2EQ-X6B1D12-M1TJ 0.3M | E2EQ-X6C112-M1TJ 0.3M | |
NC | – | E2EQ-X6B212-M1TJ 0.3M | E2EQ-X6C212-M1TJ 0.3M | |||
NO + NC | – | E2EQ-X6B3D12-M1TJ 0.3M | E2EQ-X6C312-M1TJ 0.3M | |||
M12 Connector | 48 mm | NO | E2EQ-X6B1T12-M1 | E2EQ-X6B1D12-M1 | E2EQ-X6C112-M1 | |
NC | – | E2EQ-X6B212-M1 | E2EQ-X6C212-M1 | |||
NO + NC | – | E2EQ-X6B3D12-M1 | E2EQ-X6C312-M1 | |||
M18 (12 mm) |
Pre-wired (2 m) *2 | 55 mm | NO | E2EQ-X12B1T18 2M | E2EQ-X12B1D18 2M | E2EQ-X12C118 2M |
NC | – | E2EQ-X12B218 2M | E2EQ-X12C218 2M | |||
NO + NC | – | E2EQ-X12B3D18 2M | E2EQ-X12C318 2M | |||
M12 Pre-wired Smartclick Connector (0.3 m) | 55 mm | NO | E2EQ-X12B1T18-M1TJ 0.3M | E2EQ-X12B1D18-M1TJ 0.3M | E2EQ-X12C118-M1TJ 0.3M | |
NC | – | E2EQ-X12B218-M1TJ 0.3M | E2EQ-X12C218-M1TJ 0.3M | |||
NO + NC | – | E2EQ-X12B3D18-M1TJ 0.3M | E2EQ-X12C318-M1TJ 0.3M | |||
M12 Connector | 53 mm | NO | E2EQ-X12B1T18-M1 | E2EQ-X12B1D18-M1 | E2EQ-X12C118-M1 | |
NC | – | E2EQ-X12B218-M1 | E2EQ-X12C218-M1 | |||
NO + NC | – | E2EQ-X12B3D18-M1 | E2EQ-X12C318-M1 | |||
M30 (22 mm) | Pre-wired (2 m) *2 | 60 mm | NO | E2EQ-X22B1T30 2M | E2EQ-X22B1D30 2M | E2EQ-X22C130 2M |
NC | – | E2EQ-X22B230 2M | E2EQ-X22C230 2M | |||
NO + NC | – | E2EQ-X22B3D30 2M | E2EQ-X22C330 2M | |||
M12 Pre-wired Smartclick Connector (0.3 m) | 60 mm | NO | E2EQ-X22B1T30-M1TJ 0.3M | E2EQ-X22B1D30-M1TJ 0.3M | E2EQ-X22C130-M1TJ 0.3M | |
NC | – | E2EQ-X22B230-M1TJ 0.3M | E2EQ-X22C230-M1TJ 0.3M | |||
NO + NC | – | E2EQ-X22B3D30-M1TJ 0.3M | E2EQ-X22C330-M1TJ 0.3M | |||
M12 Connector | 58 mm | NO | E2EQ-X22B1T30-M1 | E2EQ-X22B1D30-M1 | E2EQ-X22C130-M1 | |
NC | – | E2EQ-X22B230-M1 | E2EQ-X22C230-M1 | |||
NO + NC | – | E2EQ-X22B3D30-M1 | E2EQ-X22C330-M1 |
*1. When embedding the Proximity Sensor in metal, refer to Influence of Surrounding Metal on Catalog.
*2. Models with 5-m cable length are also available (Example: E2EQ-X6B1D12 5M)
*3. IO-Link is not supported for NC-type PNP outputs or all types of NPN outputs.
Note: Operation mode NO can be changed to NC via IO-Link communications.
DC 3-wire BASIC Model
E2EQ NEXT Series Model Number Legend
No. | Type | Code | Meaning |
---|---|---|---|
(1) | Case | Blank | Wihtout spatter-resistance coating |
Q | Wiht spatter-resistance coating | ||
(2) | Sensing distance | Number | Sensing distance (Unit: mm) |
(3) | Shielding | Blank | Shielded |
M | Unshielded | ||
(4) | Output configuration | B | PNP open collector |
C | NPN open collector | ||
(5) | Operation mode | 1 | Normally open (NO) |
2 | Normally closed (NC) | ||
3 | Normally open, Normally closed (NO+NC) | ||
(6) | IO-Link baud rate | Blank | Non IO-Link compliant |
D | COM2 (38.4 kbps) | ||
T | COM3 (230.4 kbps) | ||
(7) | Body size | Blank | Standard |
L | Length | ||
(8) | Size | 8 | M8 |
12 | M12 | ||
18 | M18 | ||
30 | M30 | ||
(9) | Connection method | Blank | Pre-wired Models |
M1 | M12 Connector Models | ||
M3 | M8 (4-pin) Connector Models | ||
M5 | M8 (3-pin) Connector Models | ||
M1TJ | M12 Pre-wired Smartclick Connector Models | ||
M1TJR | M12 Pre-wired Smartclick Connector Models Robot (bending-resistance) cable |
||
(10) | Cable specifications * | blank | Standard PVC cable |
R | Robot (bending-resistance) cable | ||
(11) | Cable Length | Number M | Cable Length |
* (10) is only shown in the model number of Pre-wired Models.
หมายเหตุ: The purpose of this model number legend is to provide understanding of the meaning of specifications from the model number. Model are not available for combinations of code numbers.
E2EQ NEXT Series (Spatter-resistant Double distance model)
DC 3-wire
Shielded
Size (Sensing distance) |
Connection method | Body size | Operation mode | Model | ||
---|---|---|---|---|---|---|
PNP | NPN | |||||
IO-Link (COM3) | IO-Link (COM2) *2 | — *2 | ||||
M8 (2 mm) | Pre-wired (2 m) *1 | 38 mm | NO | E2EQ-X2B1T8 2M | E2EQ-X2B1D8 2M | E2EQ-X2C18 2M |
NC | – | E2EQ-X2B28 2M | E2EQ-X2C28 2M | |||
M12 Pre-wired Smartclick Connector (0.3 m) | 38 mm | NO | E2EQ-X2B1T8-M1TJ 0.3M | E2EQ-X2B1D8-M1TJ 0.3M | E2EQ-X2C18-M1TJ 0.3M | |
NC | – | E2EQ-X2B28-M1TJ 0.3M | E2EQ-X2C28-M1TJ 0.3M | |||
M12 Connector | 43 mm | NO | E2EQ-X2B1T8-M1 | E2EQ-X2B1D8-M1 | E2EQ-X2C18-M1 | |
NC | – | E2EQ-X2B28-M1 | E2EQ-X2C28-M1 | |||
M12 (4 mm) |
Pre-wired (2 m) *1 | 47 mm | NO | E2EQ-X4B1T12 2M | E2EQ-X4B1D12 2M | E2EQ-X4C112 2M |
NC | – | E2EQ-X4B212 2M | E2EQ-X4C212 2M | |||
NO + NC | – | E2EQ-X4B3D12 2M | E2EQ-X4C312 2M | |||
M12 Pre-wired Smartclick Connector (0.3 m) | 47 mm | NO | E2EQ-X4B1T12-M1TJ 0.3M | E2EQ-X4B1D12-M1TJ 0.3M | E2EQ-X4C112-M1TJ 0.3M | |
NC | – | E2EQ-X4B212-M1TJ 0.3M | E2EQ-X4C212-M1TJ 0.3M | |||
NO + NC | – | E2EQ-X4B3D12-M1TJ 0.3M | E2EQ-X4C312-M1TJ 0.3M | |||
M12 Connector | 48 mm | NO | E2EQ-X4B1T12-M1 | E2EQ-X4B1D12-M1 | E2EQ-X4C112-M1 | |
NC | – | E2EQ-X4B212-M1 | E2EQ-X4C212-M1 | |||
NO + NC | – | E2EQ-X4B3D12-M1 | E2EQ-X4C312-M1 | |||
M18 (8 mm) |
Pre-wired (2 m) *1 | 55 mm | NO | E2EQ-X8B1T18 2M | E2EQ-X8B1D18 2M | E2EQ-X8C118 2M |
NC | – | E2EQ-X8B218 2M | E2EQ-X8C218 2M | |||
NO + NC | – | E2EQ-X8B3D18 2M | E2EQ-X8C318 2M | |||
M12 Pre-wired Smartclick Connector (0.3 m) | 55 mm | NO | E2EQ-X8B1T18-M1TJ 0.3M | E2EQ-X8B1D18-M1TJ 0.3M | E2EQ-X8C118-M1TJ 0.3M | |
NC | – | E2EQ-X8B218-M1TJ 0.3M | E2EQ-X8C218-M1TJ 0.3M | |||
NO + NC | – | E2EQ-X8B3D18-M1TJ 0.3M | E2EQ-X8C318-M1TJ 0.3M | |||
M12 Connector | 53 mm | NO | E2EQ-X8B1T18-M1 | E2EQ-X8B1D18-M1 | E2EQ-X8C118-M1 | |
NC | – | E2EQ-X8B218-M1 | E2EQ-X8C218-M1 | |||
NO + NC | – | E2EQ-X8B3D18-M1 | E2EQ-X8C318-M1 | |||
M30 (15 mm) |
Pre-wired (2 m) *1 | 60 mm | NO | E2EQ-X15B1T30 2M | E2EQ-X15B1D30 2M | E2EQ-X15C130 2M |
NC | – | E2EQ-X15B230 2M | E2EQ-X15C230 2M | |||
NO + NC | – | E2EQ-X15B3D30 2M | E2EQ-X15C330 2M | |||
M12 Pre-wired Smartclick Connector (0.3 m) | 60 mm | NO | E2EQ-X15B1T30-M1TJ 0.3M | E2EQ-X15B1D30-M1TJ 0.3M | E2EQ-X15C130-M1TJ 0.3M | |
NC | – | E2EQ-X15B230-M1TJ 0.3M | E2EQ-X15C230-M1TJ 0.3M | |||
NO + NC | – | E2EQ-X15B3D30-M1TJ 0.3M | E2EQ-X15C330-M1TJ 0.3M | |||
M12 Connector | 58 mm | NO | E2EQ-X15B1T30-M1 | E2EQ-X15B1D30-M1 | E2EQ-X15C130-M1 | |
NC | – | E2EQ-X15B230-M1 | E2EQ-X15C230-M1 | |||
NO + NC | – | E2EQ-X15B3D30-M1 | E2EQ-X15C330-M1 |
*1. Models with 5-m cable length are also available (Example: E2EQ-X6B1D12 5M)
*2. IO-Link is not supported for NC-type PNP outputs or all types of NPN outputs.
Note: Operation mode NO can be changed to NC via IO-Link communications.
E2EQ NEXT Series (Spatter-resistant Single distance model)
DC 3-wire
Shielded
Size (Sensing distance) |
Connection method | Body size | Operation mode | Model | ||
---|---|---|---|---|---|---|
PNP | NPN | |||||
IO-Link (COM3) | IO-Link (COM2) *2 | — *2 | ||||
M8 (1.5 mm) | Pre-wired (2 m) *1 | 38 mm | NO | E2EQ-X1R5B1T8 2M | E2EQ-X1R5B1D8 2M | E2EQ-X1R5C18 2M |
NC | – | E2EQ-X1R5B28 2M | E2EQ-X1R5C28 2M | |||
M12 Pre-wired Smartclick Connector (0.3 m) | 38 mm | NO | E2EQ-X1R5B1T8-M1TJ 0.3M | E2EQ-X1R5B1D8-M1TJ 0.3M | E2EQ-X1R5C18-M1TJ 0.3M | |
NC | – | E2EQ-X1R5B28-M1TJ 0.3M | E2EQ-X1R5C28-M1TJ 0.3M | |||
M12 Connector | 43 mm | NO | E2EQ-X1R5B1T8-M1 | E2EQ-X1R5B1D8-M1 | E2EQ-X1R5C18-M1 | |
NC | – | E2EQ-X1R5B28-M1 | E2EQ-X1R5C28-M1 | |||
M12 (2 mm) |
Pre-wired (2 m) *1 | 47 mm | NO | E2EQ-X2B1T12 2M | E2EQ-X2B1D12 2M | E2EQ-X2C112 2M |
NC | – | E2EQ-X2B212 2M | E2EQ-X2C212 2M | |||
NO + NC | – | E2EQ-X2B3D12 2M | E2EQ-X2C312 2M | |||
M12 Pre-wired Smartclick Connector (0.3 m) | 47 mm | NO | E2EQ-X2B1T12-M1TJ 0.3M | E2EQ-X2B1D12-M1TJ 0.3M | E2EQ-X2C112-M1TJ 0.3M | |
NC | – | E2EQ-X2B212-M1TJ 0.3M | E2EQ-X2C212-M1TJ 0.3M | |||
NO + NC | – | E2EQ-X2B3D12-M1TJ 0.3M | E2EQ-X2C312-M1TJ 0.3M | |||
M12 Connector | 48 mm | NO | E2EQ-X2B1T12-M1 | E2EQ-X2B1D12-M1 | E2EQ-X2C112-M1 | |
NC | – | E2EQ-X2B212-M1 | E2EQ-X2C212-M1 | |||
NO + NC | – | E2EQ-X2B3D12-M1 | E2EQ-X2C312-M1 | |||
M18 (5 mm) |
Pre-wired (2 m) *1 | 55 mm | NO | E2EQ-X5B1T18 2M | E2EQ-X5B1D18 2M | E2EQ-X5C118 2M |
NC | – | E2EQ-X5B218 2M | E2EQ-X5C218 2M | |||
NO + NC | – | E2EQ-X5B3D18 2M | E2aEQ-X5C318 2M | |||
M12 Pre-wired Smartclick Connector (0.3 m) | 55 mm | NO | E2EQ-X5B1T18-M1TJ 0.3M | E2EQ-X5B1D18-M1TJ 0.3M | E2EQ-X5C118-M1TJ 0.3M | |
NC | – | E2EQ-X5B218-M1TJ 0.3M | E2EQ-X5C218-M1TJ 0.3M | |||
NO + NC | – | E2EQ-X5B3D18-M1TJ 0.3M | E2EQ-X5C318-M1TJ 0.3M | |||
M12 Connector | 53 mm | NO | E2EQ-X5B1T18-M1 | E2EQ-X5B1D18-M1 | E2EQ-X5C118-M1 | |
NC | – | E2EQ-X5B218-M1 | E2EQ-X5C218-M1 | |||
NO + NC | – | E2EQ-X5B3D18-M1 | E2EQ-X5C318-M1 | |||
M30 (10 mm) |
Pre-wired (2 m) *1 | 60 mm | NO | E2EQ-X10B1T30 2M | E2EQ-X10B1D30 2M | E2EQ-X10C130 2M |
NC | – | E2EQ-X10B230 2M | E2EQ-X10C230 2M | |||
NO + NC | – | E2EQ-X10B3D30 2M | E2EQ-X10C330 2M | |||
M12 Pre-wired Smartclick Connector (0.3 m) | 60 mm | NO | E2EQ-X10B1T30-M1TJ 0.3M | E2EQ-X10B1D30-M1TJ 0.3M | E2EQ-X10C130-M1TJ 0.3M | |
NC | – | E2EQ-X10B230-M1TJ 0.3M | E2EQ-X10C230-M1TJ 0.3M | |||
NO + NC | – | E2EQ-X10B3D30-M1TJ 0.3M | E2EQ-X10C330-M1TJ 0.3M | |||
M12 Connector | 58 mm | NO | E2EQ-X10B1T30-M1 | E2EQ-X10B1D30-M1 | E2EQ-X10C130-M1 | |
NC | – | E2EQ-X10B230-M1 | E2EQ-X10C230-M1 | |||
NO + NC | – | E2EQ-X10B3D30-M1 | E2EQ-X10C330-M1 |
*1. Models with 5-m cable length are also available (Example: E2EQ-X6B1D12 5M)
*2. IO-Link is not supported for NC-type PNP outputs or all types of NPN outputs.
Note: Operation mode NO can be changed to NC via IO-Link communications.
Accessories (Sold Separately)
Sensor I/O Connectors
(Models for Pre-wired Connectors) A Sensor I/O Connector is not provided with the Sensor. It must be ordered separately as required.
Round Oil-resistant Connectors XS5 NEXT series
Appearance | Cable specification | Type | Cable diameter (mm) | Cable connection direction | Cable length (m) | Sensor I/O Connector model number | Applicable Proximity Sensor model number |
---|---|---|---|---|---|---|---|
M12 Smartclick Connector Models Straight type |
Oil-resistant PVC cable | Sockets on One Cable End | 6 dia. | Straight | 1 | XS5F-D421-C80-X | E2E-X[][][]-M1TJ(R) E2EQ-X[][][]-M1TJ E2E(Q)-X[][][]-M1 |
2 | XS5F-D421-D80-X | ||||||
3 | XS5F-D421-E80-X | ||||||
5 | XS5F-D421-G80-X | ||||||
10 | XS5F-D421-J80-X | ||||||
Oil-resistant PVC robot cable | Sockets on One Cable End | 6 dia. | Straight | 1 | XS5F-D421-C80-XR | ||
2 | XS5F-D421-D80-XR | ||||||
3 | XS5F-D421-E80-XR | ||||||
5 | XS5F-D421-G80-XR | ||||||
10 | XS5F-D421-J80-XR | ||||||
Oil-resistant PVC cable | Socket and Plug on Cable Ends | 6 dia. | Straight (Socket) / Straight (Plug) | 1 | XS5W-D421-C81-X | ||
2 | XS5W-D421-D81-X | ||||||
3 | XS5W-D421-E81-X | ||||||
5 | XS5W-D421-G81-X | ||||||
10 | XS5W-D421-J81-X | ||||||
Oil-resistant PVC robot cable | Socket and Plug on Cable Ends | 6 dia. | Straight (Socket) / Straight (Plug) | 1 | XS5W-D421-C81-XR | ||
2 | XS5W-D421-D81-XR | ||||||
3 | XS5W-D421-E81-XR | ||||||
5 | XS5W-D421-G81-XR | ||||||
10 | XS5W-D421-J81-XR |
Note: For details of the connector, refer to XS5 NEXT Series on Catalog.
Round Water-resistant Connectors XS5 series
Appearance | Cable Specification | Type | Cable diameter (mm) | Cable Connection Direction | Cable length (m) | Sensor I/O Connector model number | Applicable Proximity Sensor model number |
---|---|---|---|---|---|---|---|
M12Smartclick Connector Straight type Right-angle type |
PVC robot cable | Sockets on One Cable End | 6 dia. | Straight | 1 | XS5F-D421-C80-F | E2E-X[][][]-M1TJ(R) E2EQ-X[][][]-M1TJ E2E(Q)-X[][][]-M1 |
2 | XS5F-D421-D80-F | ||||||
3 | XS5F-D421-E80-F | ||||||
5 | XS5F-D421-G80-F | ||||||
10 | XS5F-D421-J80-F | ||||||
Right-angle | 1 | XS5F-D422-C80-F | |||||
2 | XS5F-D422-D80-F | ||||||
3 | XS5F-D422-E80-F | ||||||
5 | XS5F-D422-G80-F | ||||||
10 | XS5F-D422-J80-F | ||||||
Socket and Plug on Cable Ends | 6 dia. | Straight (Socket) / Straight (Plug) | 1 | XS5W-D421-C81-F | |||
2 | XS5W-D421-D81-F | ||||||
3 | XS5W-D421-E81-F | ||||||
5 | XS5W-D421-G81-F | ||||||
10 | XS5W-D421-J81-F | ||||||
Right-angle (Socket) / Right-angle (Plug) | 2 | XS5W-D422-D81-F | |||||
5 | XS5W-D422-G81-F | ||||||
Straight (Socket) / Right-angle (Plug) | 2 | XS5W-D423-D81-F | |||||
5 | XS5W-D423-G81-F | ||||||
Right-angle (Socket) / Straight (Plug) | 2 | XS5W-D424-D81-F | |||||
5 | XS5W-D424-G81-F |
Note: For details of the connector, refer to XS5 Series on Catalog.
DC 2-wire
E2EQ NEXT Series Model Number Legend
No. | Classification | Code | Meaning |
---|---|---|---|
(1) | Case | Blank | Without spatter-resistance coating |
Q | With spatter-resistance coating | ||
(2) | Sensing distance | Number | Sensing distance (Unit:mm) (R: Indication of decimal point) |
(3) | Shielding | Blank | Shielded |
M | Unshielded | ||
(4) | Operation mode | 1 | Nomally open (NO) |
2 | Nomally closed (NC) | ||
(5) | Body size | Blank | Standard |
L | ยาว | ||
(6) | Size (Omitted for the Single distance type) |
8 | M8 |
12 | M12 | ||
18 | M18 | ||
30 | M30 | ||
(7) | Connecting method | Blank | Pre-wired Models |
M1TGJ | M12 Pre-wired Smartclick Connector Models | ||
M1TGJR | M12 Pre-wired Smartclick Connector Models (Robot (bending-resistance) PVC cable) |
||
(8) | Polarity | Blank | Polarity |
T | No Polarity | ||
(9) | Cable specifications * | Blank | Standard PVC cable |
R | Robot (bending-resistance) PVC cable | ||
(10) | New model | Blank | Other than Single distance model (Pre-wired Models) |
N | Single distance model (Applicable only to Pre-wired Models) | ||
(11) | Cable length | Number M | Cable length |
* (9)is only shown in the model number of Pre-wired Models.
Note:
1.The purpose of this model number legend is to provide understanding of the meaning of specifications from model number.
2.Size description of the number 7 is not included in the Single-distance type.
E2EQ NEXT Series (Spatter-resistant Triple distance model)
DC 2-wire
Shielded Models *1
Size (Sensing distance) | Connection method | Polarity | Model | |
---|---|---|---|---|
Operation mode: NO | Operation mode: NC | |||
M8 (3 mm) | Pre-wired (2 m) *2 | Yes | E2EQ-X3D18 2M | E2EQ-X3D28 2M |
No | E2EQ-X3D18-T 2M | E2EQ-X3D28-T 2M | ||
M12 Pre-wired Smartclick Connector (0.3 m) |
Yes | E2EQ-X3D18-M1TGJ 0.3M | E2EQ-X3D28-M1TGJ 0.3M | |
No | E2EQ-X3D18-M1TGJ-T 0.3M | E2EQ-X3D28-M1TGJ-T 0.3M | ||
M12 (7 mm) |
Pre-wired (2 m) *2 | Yes | E2EQ-X7D112 2M | E2EQ-X7D212 2M |
No | E2EQ-X7D112-T 2M | E2EQ-X7D212-T 2M | ||
M12 Pre-wired Smartclick Connector (0.3 m) |
Yes | E2EQ-X7D112-M1TGJ 0.3M | E2EQ-X7D212-M1TGJ 0.3M | |
No | E2EQ-X7D112-M1TGJ-T 0.3M | E2EQ-X7D212-M1TGJ-T 0.3M | ||
M18 (11 mm) |
Pre-wired (2 m) *2 | Yes | E2EQ-X11D118 2M | E2EQ-X11D218 2M |
No | E2EQ-X11D118-T 2M | E2EQ-X11D218-T 2M | ||
M12 Pre-wired Smartclick Connector (0.3 m) |
Yes | E2EQ-X11D118-M1TGJ 0.3M | E2EQ-X11D218-M1TGJ 0.3M | |
No | E2EQ-X11D118-M1TGJ-T 0.3M | E2EQ-X11D218-M1TGJ-T 0.3M | ||
M30 (20 mm) |
Pre-wired (2 m) *2 | Yes | E2EQ-X20D130 2M | E2EQ-X20D230 2M |
No | E2EQ-X20D130-T 2M | E2EQ-X20D230-T 2M | ||
M12 Pre-wired Smartclick Connector (0.3 m) |
Yes | E2EQ-X20D130-M1TGJ 0.3M | E2EQ-X20D230-M1TGJ 0.3M | |
No | E2EQ-X20D130-M1TGJ-T 0.3M | E2EQ-X20D230-M1TGJ-T 0.3M |
*1. When embedding the Proximity Sensor in metal, refer to Influence of Surrounding Metal on Catalog.
*2. Models with 5-m cable length are also available with “5M” suffix. (Example: E2EQ-X3D18 5M)
Accessories (Sold Separately)
Sensor I/O Connectors
(Models for Pre-wired Connectors) A Sensor I/O Connector is not provided with the Sensor. It must be ordered separately as required.
Round Oil-resistant Connectors XS5 NEXT series
Round Oil-resistant Connectors XS5 NEXT series
Appearance | Cable Specification | Type | Cable diameter (mm) | Cable Connection Direction | Cable length (m) | Sensor I/O Connector model number | Applicable Proximity Sensor model number |
---|---|---|---|---|---|---|---|
M12 Smartclick Connector Straight type |
Oil-resistant PVC cable | Sockets on One Cable End | 6 dia. | Straight | 1 | XS5F-D421-C80-X | E2E-X[]D[]- M1TGJ(R)(-T) E2EQ-X[]D[]- M1TGJ(-T) |
2 | XS5F-D421-D80-X | ||||||
3 | XS5F-D421-E80-X | ||||||
5 | XS5F-D421-G80-X | ||||||
10 | XS5F-D421-J80-X | ||||||
Oil-resistant PVC robot cable | Sockets on One Cable End | 6 dia. | Straight | 1 | XS5F-D421-C80-XR | ||
2 | XS5F-D421-D80-XR | ||||||
3 | XS5F-D421-E80-XR | ||||||
5 | XS5F-D421-G80-XR | ||||||
10 | XS5F-D421-J80-XR | ||||||
Oil-resistant PVC cable |
Socket and Plug on Cable Ends | 6 dia. | Straight (Socket) / Straight (Plug) | 1 | XS5W-D421-C81-X | ||
2 | XS5W-D421-D81-X | ||||||
3 | XS5W-D421-E81-X | ||||||
5 | XS5W-D421-G81-X | ||||||
10 | XS5W-D421-J81-X | ||||||
Oil-resistant PVC robot cable | Socket and Plug on Cable Ends | 6 dia. | Straight (Socket) / Straight (Plug) | 1 | XS5W-D421-C81-XR | ||
2 | XS5W-D421-D81-XR | ||||||
3 | XS5W-D421-E81-XR | ||||||
5 | XS5W-D421-G81-XR | ||||||
10 | XS5W-D421-J81-XR |
Note: For details of the connector, refer to XS5 NEXT Series on Catalog.
Round Water-resistant Connectors XS5 series
Appearance | Cable Specification | Type | Cable diameter (mm) | Cable Connection Direction | Cable length (m) | Sensor I/O Connector model number | Applicable Proximity Sensor model number |
---|---|---|---|---|---|---|---|
M12 Smartclick Connector Straight type right-angle |
PVC robot cable |
Sockets on One Cable End | 6 dia. | Straight | 1 | XS5F-D421-C80-F | E2E-X[]D[]- M1TGJ(R)(-T) E2EQ-X[]D[]-M1TGJ(-T) |
2 | XS5F-D421-D80-F | ||||||
3 | XS5F-D421-E80-F | ||||||
5 | XS5F-D421-G80-F | ||||||
10 | XS5F-D421-J80-F | ||||||
Right-angle | 1 | XS5F-D422-C80-F | |||||
2 | XS5F-D422-D80-F | ||||||
3 | XS5F-D422-E80-F | ||||||
5 | XS5F-D422-G80-F | ||||||
10 | XS5F-D422-J80-F | ||||||
Socket and Plug on Cable Ends | 6 dia. | Straight (Socket ) / Straight (Plug) | 1 | XS5W-D421-C81-F | |||
2 | XS5W-D421-D81-F | ||||||
3 | XS5W-D421-E81-F | ||||||
5 | XS5W-D421-G81-F | ||||||
10 | XS5W-D421-J81-F | ||||||
Right-angle (Socket) / Right-angle (Plug) | 2 | XS5W-D422-D81-F | |||||
5 | XS5W-D422-G81-F | ||||||
Straight (Socket) / Right-angle (Plug) | 2 | XS5W-D423-D81-F | |||||
5 | XS5W-D423-G81-F | ||||||
Right-angle (Socket) / Straight (Plug) | 2 | XS5W-D424-D81-F | |||||
5 | XS5W-D424-G81-F |
Note: For details of the connector, refer to XS5 Series on Catalog.
Specifications | Proximity Sensor Cylindrical – E2EQ NEXT
DC 3-wire PREMIUM Model
E2EQ NEXT Series (Spatter-resistant Triple distance model)
DC 3-wire
Shielded
Types | Triple distance Models | ||||
---|---|---|---|---|---|
Size | M8 | M12 | M18 | M30 | |
Model | E2EQ-X3[]8 | E2EQ-X6[]12 | E2EQ-X12[]18 | E2EQ-X22[]30 | |
Sensing distance | 3 mm±10% | 6 mm±10% | 12 mm±10% | 22 mm±10% | |
Setting distance | 0 to 2.4 mm | 0 to 4.8 mm | 0 to 9.6 mm | 0 to 16.8 mm | |
Differential travel | 15% max. of sensing distance | ||||
Detectable object | Ferrous metals (For non-ferrous metals, refer to the Engineering Data on Catalog.) | ||||
Standard sensing object | Iron, 9 × 9 × 1 mm |
Iron, 18 × 18 × 1 mm |
Iron, 36 × 36 × 1 mm |
Iron, 66 × 66 × 1 mm |
|
Response frequency *1 | 1,000 Hz | 800 Hz | 500 Hz | 200 Hz | |
Power supply voltage | 10 to 30 VDC (including 10% ripple (p-p)), Class 2 | ||||
Current consumption | 1-output models: 16 mA max. |
1-output models: 16 mA max. 2-output models: 20 mA max. |
|||
Output configuration | B[] Models: PNP open collector, C[] Models: NPN open collector | ||||
Operation mode (with sensing object approaching) |
1-output models (B1, C1): NO (Normally open), 1-output models (B2, C2): NC (Normally closed) |
1-output models (B1, C1): NO (Normally open), 1-output models (B2, C2): NC (Normally closed), 2-output models (B3, C3): NO+NC (Normally open, Normally closed) |
|||
Control output | Load current | 1-output models: 10 to 30 VDC, Class 2, 100 mA max. |
1-output models: 10 to 30 VDC, Class 2, 100 mA max.,, 2-output models: 10 to 30 VDC, Class 2, 50 mA max. |
||
Residual voltage | 1-output models: 2 V max. (Load current: 100 mA, Cable length: 2 m) |
1-output models: 2 V max. (Load current: 100 mA, Cable length: 2 m), 2-output models: 2 V max. (Load current: 50 mA, Cable length: 2 m) |
|||
Indicator *2 | In the Standard I/O mode (SIO mode): Operation indicator (orange, lit) and communication indicator (green, not lit) In the IO-Link communication mode (COM mode): Operation indicator (orange, lit) and communication indicator (green, blinking at 1 s intervals) |
||||
Protection circuits | Power supply reverse polarity protection, Surge suppressor, Output short-circuit protection, Output reverse polarity protection |
||||
Ambient temperature range | Operating/Storage: -25 to 70°C (with no icing or condensation) | ||||
Ambient humidity range | Operating/Storage: 35% to 95% (with no condensation) | ||||
Temperature influence | ±10% max. of sensing distance at 23°C in the temperature range of -25 to 70°C | ||||
Voltage influence | ±1% max. of sensing distance at rated voltage in the rated voltage ±15% range | ||||
Insulation resistance | 50 MΩ min. (at 500 VDC) between current-carrying parts and case | ||||
Dielectric strength | 1,000 VAC, 50/60 Hz for 1 minute between current-carrying parts and case | ||||
Vibration resistance (destruction) |
10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions | ||||
Shock resistance (destruction) |
500 m/s2 10 times each in X, Y, and Z directions |
1,000 m/s2 10 times each in X, Y, and Z directions | |||
Degree of protection | Pre-wired Models, Pre-wired Connector Models: IEC 60529: IP67, JIS C 0920 Annex 1: IP67G Connector Models: IEC 60529: IP67 |
||||
Connection method | Pre-wired Models (Standard cable length: 2 m) and Pre-wired Connector Models (Standard cable length: 0.3 m), M12 Connector Models |
||||
Weight *3 (packed state) |
Pre-wired | Approx. 85 g | Approx. 95 g | Approx. 180 g | Approx. 260 g |
M12 Pre-wired Smartclick Connector |
Approx. 55 g | Approx. 70 g | Approx. 115 g | Approx. 200 g | |
Connector | Approx. 40 g | Approx. 55 g | Approx. 95 g | Approx. 180 g | |
Materials | Case | Fluororesin coating (Base material: brass) | |||
Sensing surface | Fluorine resin | ||||
Clamping nuts | Fluororesin coating (Base material: brass) | ||||
Toothed washers | Zinc-plated iron | ||||
Cable | Vinyl chloride (PVC) | ||||
Main IO-Link functions *2 | Operation mode switching between NO and NC, self diagnosis enabling, excessive proximity judgment distance selecting, timer function of the control output and timer time selecting, instability output (IO-Link mode) ON delay timer time selecting function, monitor output, operating hours read-out, readout of the sensor internal temperature, and initial reset |
||||
IO-Link Communication specifications *2 |
IO-Link specification | Ver 1.1 | |||
Baud rate | COM2 (38.4 kbps), COM3 (230.4 kbps) | ||||
Data length | PD size: 2 bytes, OD size: 1 byte (M-sequence type: TYPE_2_2) | ||||
Minimum cycle time | COM2: 2.3 ms, COM3: 0.4 ms | ||||
Accessories | Instruction manual, Clamping nuts, Toothed washer |
*1. The response frequency is an average value. Measurement conditions are as follows: standard sensing object, a distance of twice the standard sensing object, and a set distance of half the sensing distance.
*2. IO-Link is not supported for NC-type PNP outputs or all types of NPN outputs.
*3. Weight of the standard body-sized model.
DC 3-wire BASIC Model
E2E Q NEXT Series (Spatter-resistant Double distance/Single distance model)
DC 3-wire
Shielded
Types | Double distance | ||||
---|---|---|---|---|---|
Size | M8 | M12 | M18 | M30 | |
Model | E2EQ-X2[]8 | E2EQ-X4[]12 | E2EQ-X8[]18 | E2EQ-X15[]30 | |
Sensing distance | 2 mm ±10% | 4 mm ±10% | 8 mm ±10% | 15 mm ±10% | |
Setting distance | 0 to 1.6 mm | 0 to 3.2 mm | 0 to 6.4 mm | 0 to 12 mm | |
Differential travel | 15% max. of sensing distance | ||||
Detectable object | Ferrous metals (For non-ferrous metals, refer to the Engineering Data on Catalog.) | ||||
Standard sensing object | Iron, 8 × 8 × 1 mm |
Iron, 12 × 12 × 1 mm |
Iron, 24 × 24 × 1 mm |
Iron, 45 × 45 × 1 mm |
|
Response frequency *1 | 1,500 Hz | 1,000 Hz | 500 Hz | 250 Hz | |
Power supply voltage | 10 to 30 VDC (including 10% ripple (p-p)), Class 2 | ||||
Current consumption | 1-output models: 16 mA max. 2-output models: 20 mA max. |
||||
Output configuration | B[] Models: PNP open collector, C[] Models: NPN open collector |
||||
Operation mode (with sensing object approaching) |
1-output models (B1, C1): NO (Normally open), 1-output models (B2, C2): NC (Normally closed) 2-output models (B3, C3): NO+NC (Normally open, Normally closed) |
||||
Control output |
Load current | 1-output models: 10 to 30 VDC, Class 2, 200 mA max., (-40 to 70°C), 100 mA max., (70 to 85°C) 2-output models: 10 to 30 VDC, Class 2, 50 mA max. |
1-output models: 10 to 30 VDC, Class 2, 200 mA max., 2-output models: 10 to 30 VDC, Class 2, 100 mA max. |
||
Residual voltage | 1-output models: 2 V max. (Load current: 200 mA, Cable length: 2 m), 2-output models: 2 V max. (Load current: 50 mA, Cable length: 2 m) |
1-output models: 2 V max. (Load current: 200 mA, Cable length: 2 m), 2-output models: 2 V max. (Load current: 100 mA, Cable length: 2 m) |
|||
Indicator *2 | In the Standard I/O mode (SIO mode): Operation indicator (orange, lit) and communication indicator (green, not lit) In the IO-Link communication mode (COM mode): Operation indicator (orange, lit) and communication indicator (green, blinking at 1 s intervals) |
||||
Protection circuits | Power supply reverse polarity protection, Surge suppressor, Output short-circuit protection, Output reverse polarity protection |
||||
Ambient temperature range | Operating/Storage: -40 to 85°C (with no icing or condensation) Note: The UL temperature rating for M12 Pre-wired Connector Models is -25 to 70°C. |
||||
Ambient humidity range | Operating/Storage: 35% to 95% (with no condensation) | ||||
Temperature influence | ±15% max. of sensing distance at 23°C in the temperature range of -40 to 85°C ±10% max. of sensing distance at 23°C in the temperature range of -25 to 70°C |
||||
Voltage influence | ±1% max. of sensing distance at rated voltage in the rated voltage ±15% range | ||||
Insulation resistance | 50 MΩ min. (at 500 VDC) between current-carrying parts and case | ||||
Dielectric strength | 1,000 VAC, 50/60 Hz for 1 minute between current-carrying parts and case | ||||
Vibration resistance (destruction) |
10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions | ||||
Shock resistance (destruction) |
500 m/s2 10 times each in X, Y, and Z directions |
1,000 m/s2 10 times each in X, Y, and Z directions | |||
Degree of protection | Pre-wired Models, Pre-wired Connector Models: IEC 60529:IP67, JIS C 0920 Annex 1: IP67G Connector Models: IEC 60529 IP67 |
||||
Connection method | Pre-wired Models (Standard cable length: 2 m) and Pre-wired Connector Models (Standard cable length: 0.3 m), M12 Connector Models |
||||
Weight *3 (packed state) |
Pre-wired | Approx. 85 g | Approx. 95 g | Approx. 170 g | Approx. 240 g |
M12 Pre-wired Smartclick Connector |
Approx. 55 g | Approx. 70 g | Approx. 105 g | Approx. 170 g | |
Connector | Approx. 40 g | Approx. 55 g | Approx. 85 g | Approx. 160 g | |
Materials | Case | Fluororesin coating (Base material: SUS303) |
Fluororesin coating (Base material: brass) | ||
Sensing surface | Fluorine resin | ||||
Clamping nuts | Fluororesin coating (Base material: brass) | ||||
Toothed washers | Zinc-plated iron | ||||
Cable | Vinyl chloride (PVC) | ||||
Main IO-Link functions *2 | Operation mode switching between NO and NC, self diagnosis enabling, excessive proximity judgment distance selecting, timer function of the control output and timer time selecting, instability output (IO-Link mode) ON delay timer time selecting function, monitor output, operating hours read-out, readout of the sensor internal temperature, and initial reset |
||||
IO-Link Commun- ication specifica- tions *2 |
IO-Link specification |
Ver1.1 | |||
Baud rate | COM2 (38.4 kbps), COM3 (230.4 kbps) | ||||
Data length | PD size: 2 bytes, OD size: 1 byte (M-sequence type: TYPE_2_2) | ||||
Minimum cycle time |
COM2: 2.3 ms, COM3: 0.4 ms | ||||
Accessories | Instruction manual, Clamping nuts, Toothed washer |
Types | Single distance | ||||
---|---|---|---|---|---|
Size | M8 | M12 | M18 | M30 | |
Model | E2EQ-X1R5[]8 | E2EQ-X2[]12 | E2EQ-X5[]18 | E2EQ-X10[]30 | |
Sensing distance | 1.5 mm ±10% | 2 mm ±10% | 5 mm ±10% | 10 mm ±10% | |
Setting distance | 0 to 1.2 mm | 0 to 1.6 mm | 0 to 4 mm | 0 to 8 mm | |
Differential travel | 10% max. of sensing distance | ||||
Detectable object | Ferrous metals (For non-ferrous metals, refer to the Engineering Data on Catalog.) | ||||
Standard sensing object | Iron, 8 × 8 × 1 mm |
Iron, 12 × 12 × 1 mm |
Iron, 18 × 18 × 1 mm |
Iron, 30 × 30 × 1 mm |
|
Response frequency *1 | 2,000 Hz | 1,500 Hz | 600 Hz | 400 Hz | |
Power supply voltage | 10 to 30 VDC (including 10% ripple (p-p)), Class 2 | ||||
Current consumption | 1-output models: 16 mA max. 2-output models: 20 mA max. |
||||
Output configuration | B[] Models: PNP open collector, C[] Models: NPN open collector |
||||
Operation mode (with sensing object approaching) |
1-output models (B1, C1): NO (Normally open), 1-output models (B2, C2): NC (Normally closed) 2-output models (B3, C3): NO+NC (Normally open, Normally closed) |
||||
Control output |
Load current | 1-output models: 10 to 30 VDC, Class 2, 200 mA max., (-40 to 70°C), 100 mA max., (70 to 85°C) 2-output models: 10 to 30 VDC, Class 2, 50 mA max. |
1-output models: 10 to 30 VDC, Class 2, 200 mA max., 2-output models: 10 to 30 VDC, Class 2, 100 mA max. |
||
Residual voltage | 1-output models: 2 V max. (Load current: 200 mA, Cable length: 2 m), 2-output models: 2 V max. (Load current: 50 mA, Cable length: 2 m) |
1-output models: 2 V max. (Load current: 200 mA, Cable length: 2 m), 2-output models: 2 V max. (Load current: 100 mA, Cable length: 2 m) |
|||
Indicator *2 | In the Standard I/O mode (SIO mode): Operation indicator (orange, lit) and communication indicator (green, not lit) In the IO-Link communication mode (COM mode): Operation indicator (orange, lit) and communication indicator (green, blinking at 1 s intervals) |
||||
Protection circuits | Power supply reverse polarity protection, Surge suppressor, Output short-circuit protection, Output reverse polarity protection |
||||
Ambient temperature range | Operating/Storage: -40 to 85°C (with no icing or condensation) Note: The UL temperature rating for M12 Pre-wired Connector Models is -25 to 70°C. |
||||
Ambient humidity range | Operating/Storage: 35% to 95% (with no condensation) | ||||
Temperature influence | ±15% max. of sensing distance at 23°C in the temperature range of -40 to 85°C ±10% max. of sensing distance at 23°C in the temperature range of -25 to 70°C |
||||
Voltage influence | ±1% max. of sensing distance at rated voltage in the rated voltage ±15% range | ||||
Insulation resistance | 50 MΩ min. (at 500 VDC) between current-carrying parts and case | ||||
Dielectric strength | 1,000 VAC, 50/60 Hz for 1 minute between current-carrying parts and case | ||||
Vibration resistance (destruction) |
10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions | ||||
Shock resistance (destruction) |
500 m/s2 10 times each in X, Y, and Z directions |
1,000 m/s2 10 times each in X, Y, and Z directions | |||
Degree of protection | Pre-wired Models, Pre-wired Connector Models: IEC 60529:IP67, JIS C 0920 Annex 1: IP67G Connector Models: IEC 60529 IP67 |
||||
Connection method | Pre-wired Models (Standard cable length: 2 m) and Pre-wired Connector Models (Standard cable length: 0.3 m), M12 Connector Models |
||||
Weight *3 (packed state) |
Pre-wired | Approx. 85 g | Approx. 95 g | Approx. 170 g | Approx. 240 g |
M12 Pre-wired Smartclick Connector |
Approx. 55 g | Approx. 70 g | Approx. 105 g | Approx. 170 g | |
Connector | Approx. 40 g | Approx. 55 g | Approx. 85 g | Approx. 160 g | |
Materials | Case | Fluororesin coating (Base material: SUS303) |
Fluororesin coating (Base material: brass) | ||
Sensing surface | Fluorine resin | ||||
Clamping nuts | Fluororesin coating (Base material: brass) | ||||
Toothed washers | Zinc-plated iron | ||||
Cable | Vinyl chloride (PVC) | ||||
Main IO-Link functions *2 | Operation mode switching between NO and NC, self diagnosis enabling, excessive proximity judgment distance selecting, timer function of the control output and timer time selecting, instability output (IO-Link mode) ON delay timer time selecting function, monitor output, operating hours read-out, readout of the sensor internal temperature, and initial reset |
||||
IO-Link Commun- ication specifica- tions *2 |
IO-Link specification |
Ver1.1 | |||
Baud rate | COM2 (38.4 kbps), COM3 (230.4 kbps) | ||||
Data length | PD size: 2 bytes, OD size: 1 byte (M-sequence type: TYPE_2_2) | ||||
Minimum cycle time |
COM2: 2.3 ms, COM3: 0.4 ms | ||||
Accessories | Instruction manual, Clamping nuts, Toothed washer |
*1. The response frequency is an average value. Measurement conditions are as follows: standard sensing object, a
distance of twice the standard sensing object, and a set distance of half the sensing distance.
*2. IO-Link is not supported for NC-type PNP outputs or all types of NPN outputs.
*3. Weight of the standard body-sized model.
DC 2-wire
E2EQ NEXT Series (Spatter-resistant Triple distance model)
DC 2-wire
Size | M8 | M12 | M18 | M30 | |
---|---|---|---|---|---|
Shielded | Shielded | ||||
Model | E2EQ-X3D[] | E2EQ-X7D[] | E2EQ-X11D[] | E2EQ-X20D[] | |
Sensing distance | 3 mm ±10% | 7 mm ±10% | 11 mm ±10% | 20 mm ±10% | |
Setting distance *1 | 0 to 2.4 mm | 0 to 5.6 mm | 0 to 8.8 mm | 0 to 16 mm | |
Differential travel | 15% max. of sensing distance | ||||
Detectable object | Ferrous metal (The sensing distance decreases with non-ferrous metal. Refer to Engineering Data on Catalog.) |
||||
Standard sensing object | Iron, 9 × 9 × 1 mm |
Iron, 21 × 21 × 1 mm |
Iron, 33 × 33 × 1 mm |
Iron, 60 × 60 × 1 mm |
|
Response frequency *2 | 250 Hz | 250 Hz | 250 Hz | 200 Hz | |
Power supply voltage | 10 to 30 VDC, (including 10% ripple (p-p)) | ||||
Leakage current | 0.8 mA max. | ||||
Control output |
Load current | 3 to 100 mA | |||
Residual voltage |
Polarity: 3 V max. (Load current: 100 mA, Cable length: 2 m) No polarity: 5 V max. (Load current: 100 mA, Cable length: 2 m) |
||||
Indicator | D1 Models: Operation indicator (orange), Setting indicator (green) D2 Models: Operation indicator (orange) |
||||
Operation mode | D1 Models: NO D2 Models: NC Refer to the timing charts under I/O Circuit Diagrams on Catalog for details. |
||||
Protection circuits | Surge suppressor, Load short-circuit protection | ||||
Ambient temperature range |
Operating: -25 to 70°C, Storage: -40 to 85°C (with no icing or condensation) | ||||
Ambient humidity range | Operating and Storage: 35% to 95% (with no condensation) | ||||
Temperature influence | ±10% max. of sensing distance at 23°C in the temperature range of -25 to 70°C |
±20% max. of sensing distance at 23°C in the temperature range of -25 to 70°C |
|||
Voltage influence | ±1% max. of sensing distance at rated voltage in the rated voltage ±15% range | ||||
Insulation resistance | 50 MΩ min. (at 500 VDC) between current-carrying parts and case | ||||
Dielectric strength | 1,000 VAC, 50/60 Hz for 1 minute between current-carrying parts and case | ||||
Vibration resistance (destruction) |
10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions | ||||
Shock resistance (destruction) |
500 m/s2 10 times each in X, Y, and Z directions |
1,000 m/s2 10 times each in X, Y, and Z directions | |||
Degree of protection | Pre-wired Models/Pre-wired Connector Models: IP67 (IEC 60529) and IP67G *3 (JIS C 0920 Annex 1) |
||||
Connecting method | Pre-wired Models (Standard cable length: 2 m) and Pre-wired Connector Models (Standard cable length: 0.3 m) |
||||
Weight (packed state) |
Pre-wired Models |
Approx. 60 g | Approx. 70 g | Approx. 150 g | Approx. 210 g |
Pre-wired Connector Models | Approx. 30 g | Approx. 40 g | Approx. 90 g | Approx. 140 g | |
Materials | Case | Fluororesin coating (Base material: brass) | |||
Sensing surface |
Fluororesin | ||||
Clamping nuts |
Fluororesin coating (Base material: brass) | ||||
Toothed washer |
Zinc-plated iron | ||||
Cable | Vinyl chloride (PVC) | ||||
Accessories | Instruction manual, Clamping nuts, Toothed washer |
*1. Use the Sensor within the range in which the setting indicator (green LED) is ON (except D2 Models).
*2. The response frequency is an average value. Measurement conditions are as follows: standard sensing object, a distance
*3. The IP67G is the degree of protection which is defined according to the JIS (Japanese Industrial Standards).
The IP67 indicates the same level of protection as defined by the IEC, and the G indicates that a device has resistance to oil.

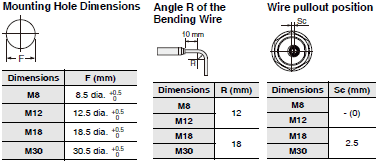

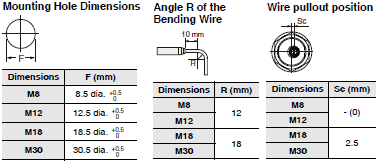

Dimensions | Proximity Sensor Cylindrical – E2EQ NEXT
(Unit: mm)
Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.
DC 3-Wire PREMIUM Model
E2EQ NEXT Series (Spatter-resistant, Triple distance model)

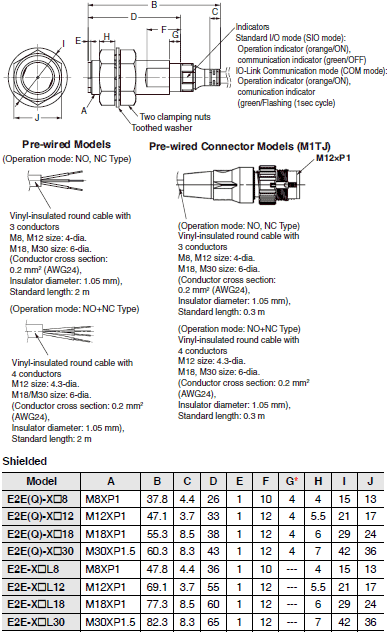

Pre-wired Model/Pre-wired Connector Model
Shielded

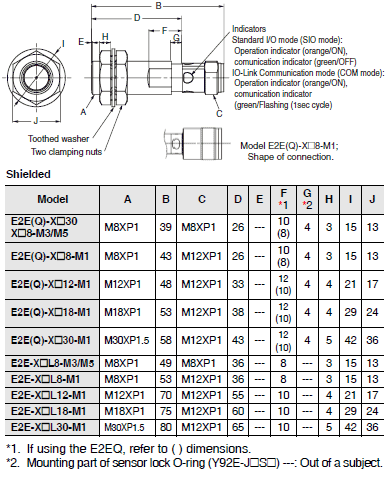

Connector Models (M12 Connector) Shielded
DC 3-Wire BASIC Model
E2EQ NEXT Series (Spatter-resistant, Double distance/Single distance model)

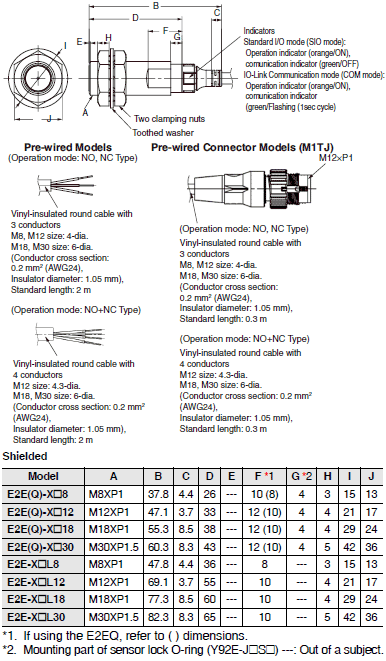

Pre-wired Model/Pre-wired Connector Model
Shielded

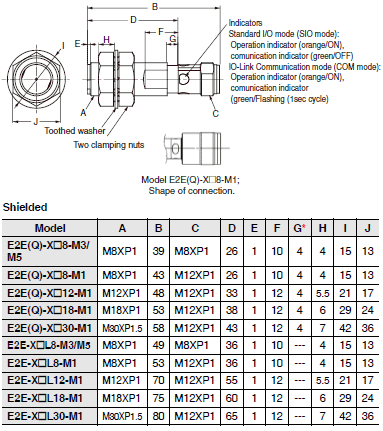

Connector Models
(M12 Connector)
Shielded
DC 2-wire
E2EQ NEXT Series (Spatter-resistant Triple distance model)

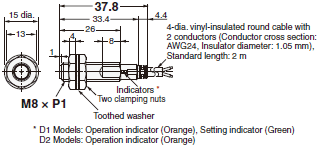

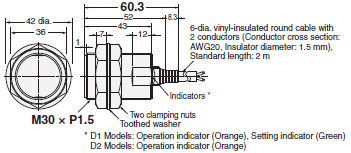

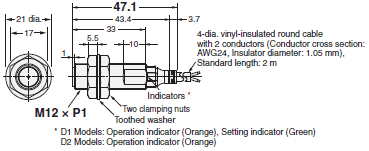

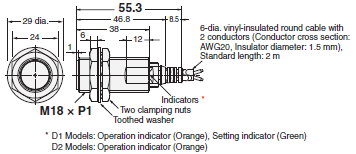

Pre-wired Models Shielded
E2EQ-X3D[]8
E2EQ-X7D[]12
E2EQ-X11D[]18
E2EQ-X20D[]30

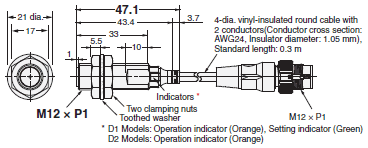

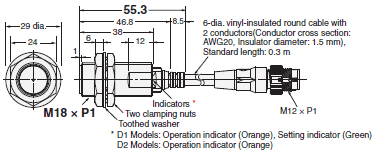

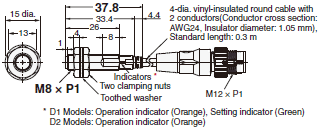

Pre-wired Connector Models Shielded
E2EQ-X3D[]8-M1TGJ
E2EQ-X7D[]12-M1TGJ
E2EQ-X11D[]18-M1TGJ
E2EQ-X20D[]30-M1TGJ
คุณสมบัติ | Proximity Sensor Cylindrical – E2EQ NEXT
ช่วยให้ออกแบบได้ง่ายขึ้นและเป็นมาตรฐานที่รุ่นก่อนไม่สามารถทำได้ คุณสมบัติมาตรฐานเป็น IO-Link
คุณสมบัติ | Proximity Sensor Cylindrical – E2EQ NEXT
Proximity Sensor Cylindrical | E2EQ NEXT |
---|---|
ประเภทรุ่น | DC 2-สาย, DC 3-สาย |
ระยะการตรวจจับ (มม.) | 1.5, 2, 3, 4, 5, 6, 7, 8, 10, 11, 12, 15, 20, 22 |
ขนาดตัวเรือน | M8, M12, M18, M30 |
วัสดุตัวเรือน | โลหะ |
แหล่งจ่ายไฟ | 10 – 30 VDC |
ระดับการป้องกัน | IP67 |
