Model Numbers | Temperature Controller – E5ED-800
Model Number Legend
Models with Screw Terminals
E5EC-800 48 × 96 mm
| Control output 1 | Control output 2 |
Auxiliary output |
Communications | Heater burnout | Event inputs |
Power supply voltage |
Model |
|---|---|---|---|---|---|---|---|
| Relay output | – | Two | – | – | – | 100 to 240 VAC |
E5EC-RX2ASM-800 |
| Voltage output | – | E5EC-QX2ASM-800 | |||||
| Linear current output | – | E5EC-CX2ASM-800 | |||||
| Relay output | Relay output | E5EC-RR2ASM-800 | |||||
| Voltage output | Relay output | E5EC-QR2ASM-800 | |||||
| Linear current output | Relay output | E5EC-CR2ASM-800 | |||||
| Relay output | – | 24 VAC/ VDC |
E5EC-RX2DSM-800 | ||||
| Voltage output | – | E5EC-QX2DSM-800 | |||||
| Linear current output | – | E5EC-CX2DSM-800 | |||||
| Relay output | Relay output | E5EC-RR2DSM-800 | |||||
| Voltage output | Relay output | E5EC-QR2DSM-800 | |||||
| Linear current output | Relay output | E5EC-CR2DSM-800 | |||||
| Relay output | Relay output | RS-485 | One | Two | 100 to 240 VAC |
E5EC-RR2ASM-808 | |
| Voltage output | Relay output | E5EC-QR2ASM-808 | |||||
| Relay output | Relay output | 24 VAC/ VDC |
E5EC-RR2DSM-808 | ||||
| Voltage output | Relay output | E5EC-QR2DSM-808 | |||||
| Relay output | Relay output | – | Four | 100 to 240 VAC |
E5EC-RR2ASM-810 | ||
| Voltage output | Relay output | E5EC-QR2ASM-810 | |||||
| Relay output | Relay output | 24 VAC/ VDC |
E5EC-RR2DSM-810 | ||||
| Voltage output | Relay output | E5EC-QR2DSM-810 | |||||
| Linear current output | Relay output | RS-485 | – | Two | 100 to 240 VAC |
E5EC-CR2ASM-804 | |
| Linear current output | Relay output | 24 VAC/ VDC |
E5EC-CR2DSM-804 | ||||
| Relay output (Open) * | Relay output (Close) * |
– | – | – | – | 100 to 240 VAC |
E5EC-PR0ASM-800 |
| Relay output (Open) * | Relay output (Close) * |
Two | E5EC-PR2ASM-800 | ||||
| Relay output (Open) * | Relay output (Close) * |
RS-485 | Two | E5EC-PR2ASM-804 |
* Position proportional control model.
Note: Draw-out-type models of the E5EC-800 are available. Ask your OMRON representative for details.
Heating and Cooling Control
Using Heating and Cooling Control
(1) Control Output Assignment
If there is no control output 2, an auxiliary output is used as the cooling control output.
If there is a control output 2, the two control outputs are used for heating and cooling.
(It does not matter which output is used for heating and which output is used for cooling.)
(2) Control
If PID control is used, you can set PID control separately for heating and cooling.
This allows you to handle control systems with different heating and cooling response characteristics.

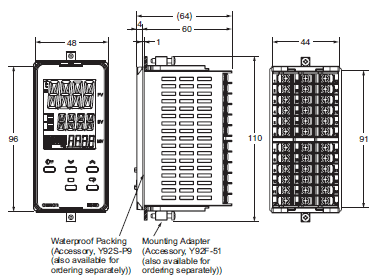

Optional Products (Order Separately)
Terminal Covers
| Model |
|---|
| E53-COV24 |
Waterproof Packing
| Model |
|---|
| Y92S-P9 |
Note: This Waterproof Packing is provided with the Digital Temperature Controller.
Waterproof Cover
| Model |
|---|
| Y92A-49N |
Front Port Cover
| Model |
|---|
| Y92S-P7 |
Note: This Front Port Cover is provided with the Digital Temperature Controller.
Mounting Adapter
| Model |
|---|
| Y92F-51 (Two Adapters are included.) |
Note: This Mounting Adapter is provided with the Digital Temperature Controller.
Current Transformers (CTs)

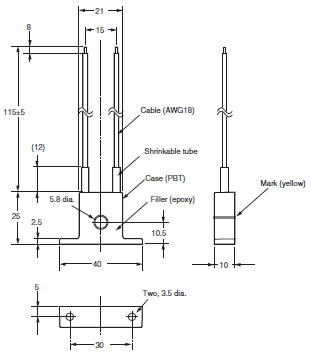

| Hole diameter | Model |
|---|---|
| 5.8 mm | E54-CT1 |
| 5.8 mm | E54-CT1L * |

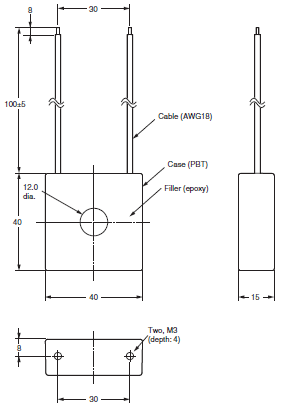

| 12.0 mm | E54-CT3 |
| 12.0 mm | E54-CT3L * |
* Lead wires are included with these CTs. If UL certification is required, use these CTs.
Specifications | Temperature Controller – E5ED-800
Ratings
| Power supply voltage | A in model number: 100 to 240 VAC, 50/60 Hz D in model number: 24 VAC, 50/60 Hz; 24 VDC |
|
|---|---|---|
| Operating voltage range | 85% to 110% of rated supply voltage | |
| Power consumption | 6.6 VA max. at 100 to 240 VAC, and 4.1 VA max. at 24 VAC or 2.3 W max. at 24 VDC | |
| Sensor input | Temperature input Thermocouple: K, J, T, E, L, U, N, R, S, B, C/W, or PL II Platinum resistance thermometer: Pt100 or JPt100 Infrared temperature sensor (ES1B): 10 to 70°C, 60 to 120°C, 115 to 165°C, or 140 to 260°C Analog input Current input: 4 to 20 mA or 0 to 20 mA Voltage input: 1 to 5 V, 0 to 5 V, or 0 to 10 V |
|
| Input impedance | Current input: 150 Ω max., Voltage input: 1 MΩ min. (Use a 1:1 connection when connecting the ES2-HB-N/THB-N.) |
|
| Control method | ON/OFF control or 2-PID control (with auto-tuning) | |
| Control output |
Relay output | SPST-NO, 250 VAC, 5 A (resistive load), electrical life: 100,000 operations, minimum applicable load: 5 V, 10 mA |
| Voltage output (for driving SSR) |
Output voltage: 12 VDC ± 20% (PNP), max. load current: 40 mA, with short-circuit protection circuit (The maximum load current is 21 mA for models with two control outputs.) |
|
| Linear current output |
4 to 20 mA DC/0 to 20 mA DC, load: 500 Ω max., resolution: approx. 10,000 | |
| Auxiliary output |
Number of outputs | 1, 2, or 3 (depends on model) |
| Output specifications |
SPST-NO relay outputs, 250 VAC, Models with 2 outputs: 3 A (resistive load), Electrical life: 100,000 operations, Minimum applicable load: 10 mA at 5 V |
|
| Event input |
Number of inputs | 2 or 4 (depends on model) |
| External contact input specifications |
Contact input: ON: 1 kΩ max., OFF: 100 kΩ min. | |
| Non-contact input: ON: Residual voltage: 1.5 V max., OFF: Leakage current: 0.1 mA max. | ||
| Current flow: Approx. 7 mA per contact | ||
| Potentiometer input | 100 Ω to 10 kΩ | |
| Setting method | Digital setting using front panel keys | |
| Indication method | 11-segment digital display and individual indicators Character height: PV: 18.0 mm, SV: 11.0 mm |
|
| Multi SP | Up to eight set points (SP0 to SP7) can be saved and selected using event inputs, key operations, or serial communications. |
|
| Bank switching | None | |
| Other functions | Manual output, heating/cooling control, loop burnout alarm, SP ramp, other alarm functions, heater burnout (HB) alarm (including SSR failure (HS) alarm), 40% AT, 100% AT, MV limiter, input digital filter, self tuning, PV input shift, run/stop, protection functions, temperature status display, moving average of input value, FB moving average |
|
| Ambient operating temperature |
-10 to 55°C (with no condensation or icing), for 3-year warranty: -10 to 50°C (with no condensation or icing) |
|
| Ambient operating humidity | 25% to 85% | |
| Storage temperature | -25 to 65°C (with no condensation or icing) | |
| Altitude | 2,000 m max. | |
| Recommended fuse | T2A, 250 VAC, time lag, low shut-off capacity | |
| Installation environment | Installation Category II, Pollution Class 2 (IEC 61010-1 compliant) | |

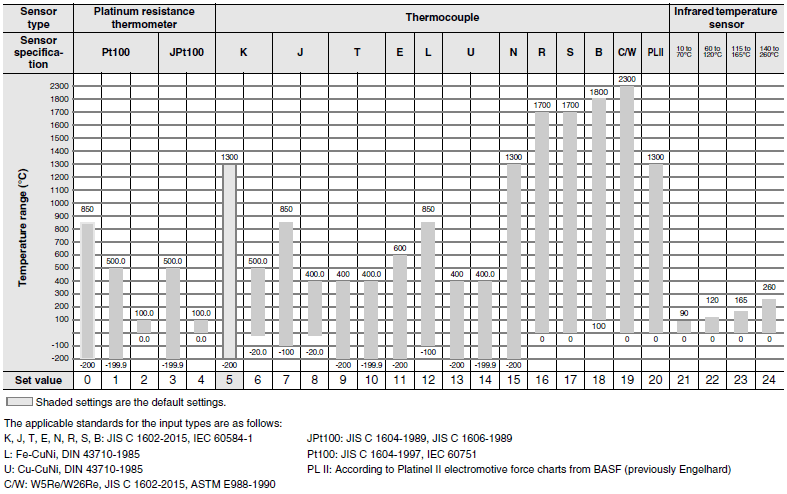

Input Ranges (Universal inputs)
Thermocouple/Platinum Resistance Thermometer
Analog input
| Input type | Current | Voltage | |||
|---|---|---|---|---|---|
| Input specification | 4 to 20 mA | 0 to 20 mA | 1 to 5 V | 0 to 5 V | 0 to 10 V |
| Setting range | Usable in the following ranges by scaling: -1999 to 9999, -199.9 to 999.9, -19.99 to 99.99 or -1.999 to 9.999 |
||||
| Set value | 25 | 26 | 27 | 28 | 29 |
Alarm type
Each alarm can be independently set to one of the following 19 alarm types. The default is 2: Upper limit. (see note.)
Auxiliary outputs are allocated for alarms. ON delays and OFF delays (0 to 999 s) can also be specified.
| Set value |
Alarm type | Alarm output operation | Description of function | |
|---|---|---|---|---|
| When alarm value X is positive |
When alarm value X is negative |
|||
| 0 | Alarm function OFF |
Output OFF | No alarm | |
| 1 | Upper- and lower-limit *1 |
 |
*2 | Set the upward deviation in the set point for the alarm upper limit (H) and the lower deviation in the set point for the alarm lower limit (L). The alarm is ON when the PV is outside this deviation range. |
| 2 (default) |
Upper-limit |  |
 |
Set the upward deviation in the set point by setting the alarm value (X). The alarm is ON when the PV is higher than the SP by the deviation or more. |
| 3 | Lower-limit |  |
 |
Set the downward deviation in the set point by setting the alarm value (X). The alarm is ON when the PV is lower than the SP by the deviation or more. |
| 4 | Upper- and lower-limit range *1 |
 |
*3 | Set the upward deviation in the set point for the alarm upper limit (H) and the lower deviation in the set point for the alarm lower limit (L). The alarm is ON when the PV is inside this deviation range. |
| 5 | Upper- and lower-limit with standby sequence *1 |
*5 |
*4 | A standby sequence is added to the upper- and lower-limit alarm (1). *6 |
| 6 | Upper-limit with standby sequence |
|
|
A standby sequence is added to the upper-limit alarm (2). *6 |
| 7 | Lower-limit with tandby sequence |
|
|
A standby sequence is added to the lower-limit alarm (3). *6 |
| 8 | Absolute-value upper-limit |
 |
 |
The alarm will turn ON if the process value is larger than the alarm value (X) regardless of the set point. |
| 9 | Absolute-value lower-limit |
 |
 |
The alarm will turn ON if the process value is smaller than the alarm value (X) regardless of the set point. |
| 10 | Absolute-value upper-limit with standby sequence |
|
|
A standby sequence is added to the absolute-value upper-limit alarm (8). *6 |
| 11 | Absolute-value lower-limit with standby sequence |
|
|
A standby sequence is added to the absolute-value lower-limit alarm (9). *6 |
| 12 | LBA (alarm 1 type only) |
– | *7 | |
| 13 | PV change rate alarm |
– | *8 | |
| 14 | SP absolute value upper limit alarm |
 |
 |
This alarm type turns ON the alarm when the set point (SP) is higher than the alarm value (X). |
| 15 | SP absolute value lower limit alarm |
 |
 |
This alarm type turns ON the alarm when the set point (SP) is lower than the alarm value (X). |
| 16 | MV absolute value upper limit alarm *9 |
Standard Control  |
Standard Control  |
This alarm type turns ON the alarm when the manipulated variable (MV) is higher than the alarm value (X). |
| Heating/Cooling Control (Heating MV) |
Heating/Cooling Control (Heating MV) Always ON |
|||
| 17 | MV absolute value lower limit alarm *9 |
Standard Control  |
Standard Control  |
This alarm type turns ON the alarm when the manipulated variable (MV) is lower than the alarm value (X). |
| Heating/Cooling Control (Cooling MV) |
Heating/Cooling Control (Cooling MV) Always ON |
|||
*1 With set values 1, 4 and 5, the upper and lower limit values can be set independently for each alarm type, and are
expressed as “L” and “H.”
*2. Set value: 1, Upper- and lower-limit alarm
*3. Set value: 4, Upper- and lower-limit range
*4. Set value: 5, Upper- and lower-limit with standby sequence
For Upper- and Lower-Limit Alarm Described Above *2
• Case 1 and 2
Always OFF when the upper-limit and lower-limit hysteresis overlaps.
• Case 3: Always OFF
*5. Set value: 5, Upper- and lower-limit with standby sequence
Always OFF when the upper-limit and lower-limit hysteresis overlaps.
*6. Refer to the E5[]C Digital Temperature Controllers User’s Manual (Cat. No. H174) for information on the operation
of the standby sequence.
*7. Refer to the E5[]C Digital Temperature Controllers User’s Manual (Cat. No. H174) for information on the PV change
rate alarm. This setting cannot be used with a position-proportional model.
*8. Refer to the E5[]C Digital Temperature Controllers User’s Manual (Cat. No. H174) for information on the PV change
rate alarm.
*9. When heating/cooling control is performed, the MV absolute upper limit alarm functions only for the heating operation
and the MV absolute lower limit alarm functions only for the cooling operation.
Characteristics
| Indication accuracy (at the ambient temperature of 23°C) |
Thermocouple: (±0.3% of PV or ±1°C, whichever is greater) ±1 digit max. *1 Platinum resistance thermometer: (±0.2% of PV or ±0.8°C, whichever is greater) ±1 digit Analog input: ±0.2% FS ±1 digit max. CT input: ±5% FS ±1 digit max. Potentiometer input: ±5% FS ±1 digit max. |
|
|---|---|---|
| Influence of temperature *2 |
Thermocouple input (R, S, B, C/W, PL II): (±1% of PV or ±10°C, whichever is greater) ±1 digit max. Other thermocouple input: (±1% of PV or ±4°C, whichever is greater) ±1 digit max. *3 Platinum resistance thermometer: (±1% of PV or ±2°C, whichever is greater) ±1 digit max. Analog input: ±1%FS ±1 digit max. CT input: ±5% FS ±1 digit max. |
|
| Influence of voltage *2 | ||
| Influence of EMS. (at EN 61326-1) |
||
| Input sampling period | 50ms | |
| Hysteresis | Temperature input: 0.1 to 999.9°C or °F (in units of 0.1°C or °F) Analog input: 0.01% to 99.99% FS (in units of 0.01% FS) |
|
| Proportional band (P) | Temperature input: 0.1 to 999.9°C or °F (in units of 0.1°C or °F) Analog input: 0.1 to 999.9% FS (in units of 0.1% FS) |
|
| Integral time (I) | Standard, heating/cooling, or Position-proportional (Close) 0 to 9999 s (in units of 1 s), 0.0 to 999.9 s (in units of 0.1 s) Position-proportional (Floating) 1 to 9999 s (in units of 1 s), 0.1 to 999.9 s (in units of 0.1 s) |
|
| Derivative time (D) | 0 to 9999 s (in units of 1 s), 0.0 to 999.9 s (in units of 0.1 s) *4 | |
| Proportional band (P) for cooling |
Temperature input: 0.1 to 999.9°C or °F (in units of 0.1°C or °F) Analog input: 0.1 to 999.9% FS (in units of 0.1% FS) |
|
| Integral time (I) for cooling |
0 to 9999 s (in units of 1 s), 0.0 to 999.9 s (in units of 0.1 s) *4 | |
| Derivative time (D) for cooling |
0 to 9999 s (in units of 1 s), 0.0 to 999.9 s (in units of 0.1 s) *4 | |
| Control period | 0.1, 0.2, 0.5, 1 to 99 s (in units of 1 s) | |
| Manual reset value | 0.0 to 100.0% (in units of 0.1%) | |
| Alarm setting range | -1999 to 9999 (decimal point position depends on input type) | |
| Affect of signal source resistance |
Thermocouple: 0.1°C/Ω max. (100 Ω max.) Platinum resistance thermometer: 0.1°C/Ω max. (10 Ω max.) |
|
| Insulation resistance | 20 MΩ min. (at 500 VDC) | |
| Dielectric strength | 2,300 VAC, 50/60 Hz for 1 min between terminals of different charge | |
| Vibration | Malfunction | 10 to 55 Hz, 20 m/s2 for 10 min each in X, Y, and Z directions |
| Resistance | 10 to 55 Hz, 20 m/s2 for 2 hrs each in X, Y, and Z directions | |
| Shock | Malfunction | 100 m/s2, 3 times each in X, Y, and Z directions |
| Resistance | 300 m/s2, 3 times each in X, Y, and Z directions | |
| Weight | Controller: Approx. 210 g, Mounting Brackets: Approx. 4 g × 2 | |
| Degree of protection | Front panel: IP66, Rear case: IP20, Terminals: IP00 | |
| Memory protection | Non-volatile memory (number of writes: 1,000,000 times) | |
| Standards | Approved standards |
cULus: UL 61010-1/CSA C22.2 No.61010-1, Korean wireless regulations (Radio law: KC Mark) (Some models only.) *5, Lloyd’s standards *6, EAC |
| Conformed standards |
EN 61010-1 (IEC 61010-1), RCM | |
| EMC | EMI EN 61326-1 *7 Radiated Interference Electromagnetic Field Strength: EN 55011 Group 1, class A Noise Terminal Voltage: EN 55011 Group 1, class A EMS: EN 61326-1 *7 ESD Immunity: EN 61000-4-2 Electromagnetic Field Immunity: EN 61000-4-3 Burst Noise Immunity: EN 61000-4-4 Conducted Disturbance Immunity: EN 61000-4-6 Surge Immunity: EN 61000-4-5 Voltage Dip/Interrupting Immunity: EN 61000-4-11 |
|
*1. The indication accuracy of K thermocouples in the -200 to 1300°C range, T and N thermocouples at a temperature of
-100°C max., and U and L thermocouples at any temperatures is ±2°C ±1 digit max. The indication accuracy of the
B thermocouple at atemperature of 400°C max. is not specified. The indication accuracy of B thermocouples at a
temperature of 400 to 800°C is ±3°C max. The indication accuracy of the R and S thermocouples at a temperature
of 200°C max. is ±3°C ±1 digit max. The indication accuracy of C/W thermocouples is (±0.3 of PV or ±3°C, whichever
is greater) ±1 digit max. The indication accuracy of PL II thermocouples is (±0.3% of PV or ±2°C, whichever is
greater) ±1 digit max.
*2. Ambient temperature: -10°C to 23°C to 55°C, Voltage range: -15% to 10% of rated voltage
*3. K thermocouple at -100°C max.: ±10°C max.
*4. The unit is determined by the setting of the Integral/Derivative Time Unit parameter.
*5. Refer to your OMRON website for the most recent information on applicable models.
*6. Refer to information on maritime standards in Shipping Standards on Catalog for compliance with Lloyd’s Standards.
*7. Industrial electromagnetic environment (EN/IEC 61326-1 Table 2)
Communications Specifications
| Transmission line connection method | RS-485: Multidrop |
|---|---|
| Communications | RS-485 (two-wire, half duplex) |
| Synchronization method | Start-stop synchronization |
| Protocol | CompoWay/F, or Modbus |
| Baud rate | 9600, 19200, 38400, or 57600 bps |
| Transmission code | ASCII |
| Data bit length* | 7 or 8 bits |
| Stop bit length* | 1 or 2 bits |
| Error detection | Vertical parity (none, even, odd) Block check character (BCC) with CompoWay/F or CRC-16 Modbus |
| Flow control | None |
| Interface | RS-485 |
| Retry function | None |
| Communications buffer | 217 bytes |
| Communications response wait time | 0 to 99 ms Default: 20 ms |
* The baud rate, data bit length, stop bit length, and vertical parity can be individually set using the Communications
Setting Level.
Communications Functions
| Programless communications *1 |
You can use the memory in the PLC to read and write E5[]C parameters, start and stop operation, etc. The E5[]C automatically performs communications with PLCs. No communications programming is required. Number of connected Temperature Controllers: 32 max. (Up to 16 for the FX Series) Applicable PLCs OMRON PLCs CS Series, CJ Series, CP Series, NJ Series, or NX1P Mitsubishi Electric PLCs MELSEC Q Series, L Series, FX3 Series, or iQ-R Series KEYENCE PLCs KEYENCE KV Series |
|---|---|
| Component Communications *1 |
When Digital Temperature Controllers are connected, set points and RUN/STOP commands can be sent from the Digital Temperature Controller that is set as the master to the Digital Temperature Controllers that are set as slaves. Slope and offsets can be set for the set point. Number of connected Digital Temperature Controllers: 32 max. (including master) |
| Copying *2 | When Digital Temperature Controllers are connected, the parameters can be copied from the Digital Temperature Controller that is set as the master to the Digital Temperature Controllers that are set as slaves. |
MELSEC is a registered trademark of Mitsubishi Electric Corporation.
KEYENCE is a registered trademark of Keyence Corporation.
*1 A Temperature Controller with version 1.1 or higher is required.
A Temperature Controller with version 2.1 or higher is required for the FX Series or the KV Series.
*2 Both the programless communications and the component communications support the copying.
Current Transformer (Order Separately) Ratings
| E54-CT1 E54-CT3 |
E54-CT1L E54-CT3L |
|
|---|---|---|
| Dielectric strength | 1,000 VAC for 1 min | 1,500 VAC for 1 min |
| Vibration resistance | 50 Hz, 98 m/s2 | |
| Weight | E54-CT1: Approx. 11.5 g, E54-CT3: Approx. 50 g |
E54-CT1: Approx. 14 g, E54-CT3: Approx. 57 g |

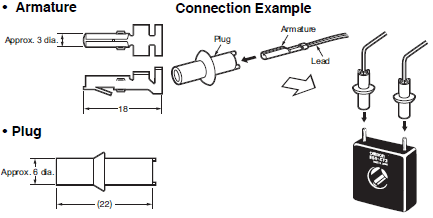

| Accessories | E54-CT3 Only Armatures (2) Plugs (2) |
None |
Heater Burnout Alarms and SSR Failure Alarms
| CT input (for heater current detection) | Models with detection for single-phase heaters: One input Models with detection for single-phase or three-phase heaters: Two inputs |
|---|---|
| Maximum heater current | 50 A AC |
| Input current indication accuracy | ± 5% FS ± 1 digit max. |
| Heater burnout alarm setting range *1 | 0.1 to 49.9 A (in units of 0.1 A) Minimum detection ON time: 100 ms *3 |
| SSR failure alarm setting range *2 | 0.1 to 49.9 A (in units of 0.1 A) Minimum detection OFF time: 100 ms *4 |
*1. For heater burnout alarms, the heater current will be measured when the control output is ON, and the output will
turn ON if the heater current is lower than the set value (i.e., heater burnout detection current value).
*2. For SSR failure alarms, the heater current will be measured when the control output is OFF, and the output will turn
ON if the heater current is higher than the set value (i.e., SSR failure detection current value).
*3. The value is 30 ms for a control period of 0.1 s or 0.2 s.
*4. The value is 35 ms for a control period of 0.1 s or 0.2 s.
Dimensions | Temperature Controller – E5ED-800
(Unit: mm)
Controllers
E5ED-800
• Recommended panel thickness is 1 to 8 mm.
• Group mounting is not possible in the vertical direction. (Maintain the specified mounting space between Controllers.)
• To mount the Controller so that it is waterproof, insert the waterproof packing onto the Controller.
• When two or more Controllers are mounted, make sure that the surrounding temperature does not exceed the allowable operating temperature specified in the specifications.
Accessories (Order Separately)
Terminal Covers
E53-COV24 (Three Covers provided.)
Waterproof Packing
Y92S-P9 (for DIN 48 × 96)
The Waterproof Packing is provided with the Digital Temperature Controller. Order the Waterproof Packing separately if it becomes lost or damaged. The Waterproof Packing can be used to achieve an IP66 degree of protection. (Deterioration, shrinking, or hardening of the waterproof packing may occur depending on the operating environment. Therefore, periodic replacement is recommended to ensure the level of waterproofing specified in IP66. The time for periodic replacement depends on the operating environment. Be sure to confirm this point at your site. Consider three years as a rough standard.)
Mounting Adapter
Y92F-51 (Two Adapters provided.)
One pair is provided with the Controller.
Order this Adapter separately if it becomes lost or damaged.
Waterproof Cover
Y92A-49N (for DIN 48 × 96)
Draw-out Jig
Y92F-59
Use this Draw-out Jig to remove the interior body of the Digital Temperature Controller from the case to perform maintenance without removing the terminal wiring.
Current Transformers
E54-CT1
E54-CT1L
Thru-current (Io) vs. Output Voltage (Eo)
(Reference Values)
E54-CT1 or E54-CT1L
Maximum continuous heater current: 50 A (50/60 Hz)
Number of windings: 400±2
Winding resistance: 18±2 Ω
E54-CT3
E54-CT3 Accessories
E54-CT3L
Thru-current (Io) vs. Output Voltage (Eo)
(Reference Values)
E54-CT3 or E54-CT3L
Maximum continuous heater current: 120 A (50/60 Hz)
(Maximum continuous heater current for an OMRON Digital Temperature Controller is 50 A.)
Number of windings: 400±2
Winding resistance: 8±0.8 Ω
Features | Temperature Controller – E5ED-800
- Automatic optimization of control for changes in systems (Adaptive Control).
- Functions specialized for packaging machines
- Function specialized for water-cooled extruders
- Draw-out structure for easy maintenance
Properties | Temperature Controller – E5ED-800
| Temperature Controller | E5ED-800 |
|---|---|
| Power supply voltage | A in model number: 100 to 240 VAC, 50/60 Hz |
| D in model number: 24 Vac, 50/60 Hz; 24 Vdc | |
| Sensor Input | Thermocouple: K, J, T, E, L, U, N, R, S, B, C/W, or PL II |
| Current input: 4 to 20 mA or 0 to 20 mA | |
| Voltage input: 1 to 5 V, 0 to 5 V, or 0 to 10 V | |
| Event input | 2 |
| Control method | ON/OFF control |
| 2-PID control (with auto-tuning) | |
| Output | 12 Vdc (PNP) |
| 4 – 20 mA / 0 – 20 mA | |
| Relay (NO 250Vac, 5A) | |
| Auxiliary output | 2 slot |
| size (W x L x D) (mm) | 48 x 96 x 64 |
| Weight (g) | 210 |
ติดต่อแผนก Automation & Robots
