SMC - Air Suction Filters
SMC – Air Suction Filters มีทั้งหมด 5 รุ่น แต่ละรุ่นมีขนาด, คุณสมบัติ และการใช้งานที่แตกต่างกันออกไป
1. Air Suction Filter ZFA

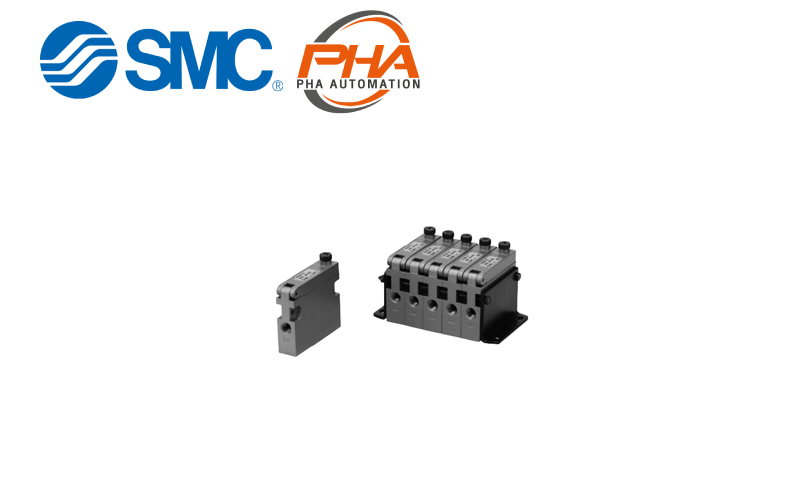

Features | Air Suction Filter ZFA
- Prevents problems related to vacuum circuits or airborne contaminants
- Provides a large filter element surface
Specifications | Air Suction Filter ZFA
| Series | Port size | Flow rate L/min (ANR) | Filtration (μm) |
|---|---|---|---|
| ZFA10 | 1/8 | 50 | 30 |
| ZFA20 | 1/4 | 200 | 30 |
2. Air Suction Filter with One-touch Fittings ZFB
SMC – Air Suction Filter with One-touch Fittings ZFB

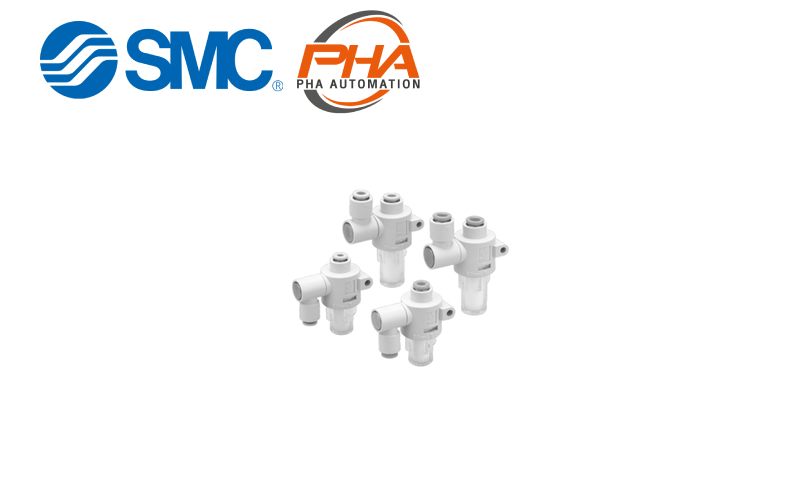

Features | Air Suction Filter with One-touch Fittings ZFB
- Prevents problems related to vacuum circuits or airborne contaminants
- Vacuum tubes can be connected and removed by a one-touch operation.
Specifications | Air Suction Filter with One-touch Fittings ZFB
| Series | Applicable tubing O.D. Metric |
Applicable tubing O.D. Inch |
Flow rate L/min (ANR) |
Filtration (μm) |
|---|---|---|---|---|
| ZFB10 | φ4, φ6 | φ3/16, φ1/4 | 10 to 20 | 30 |
| ZFB20 | φ6, φ8 | φ1/4 | 30 to 50 | 30 |
| ZFB30 | φ8, φ10 | φ3/8 | 75 | 30 |
| ZFB40 | – | φ1/2 | 100 | 30 |
3. In-line Air Filter ZFC
SMC – In-line Air Filter ZFC

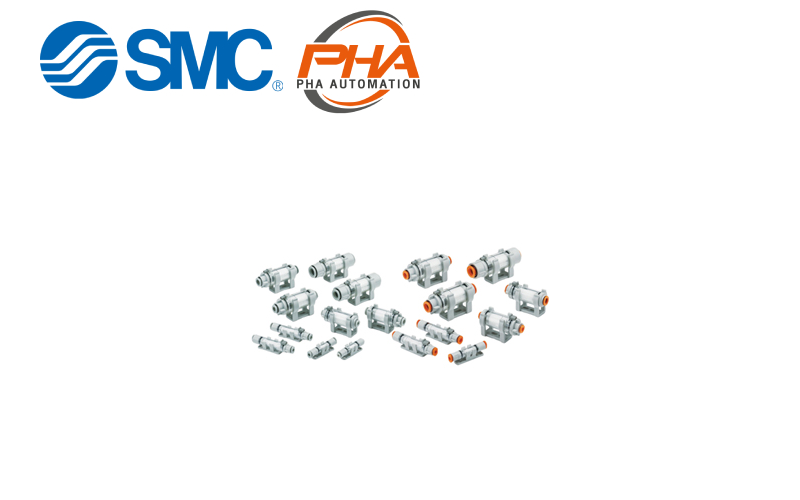

Features | In-line Air Filter ZFC
- Operating pressure range: −100 kPa to 1.0 MPa Both positive pressure and vacuum pressure can be used with one unit.
- With lock mechanism During positive pressure, it prevents components from being scattered when they are loosened.
- 2 types of transparent case materials are available: Polycarbonate (Standard), Nylon (Made to order)
- Note 1) Supply pressure: 0.7 MPa, Differential pressure: 30 kPa
- Note 2) Made to order
Specifications | In-line Air Filter ZFC
| Series | Applicable tubing O.D. Metric |
Applicable tubing O.D. Inch |
Flow rate L/min (ANR)Note 1) Positive pressure |
Flow rate L/min (ANR) Vacuum pressure |
Filtration (μm) |
|---|---|---|---|---|---|
| ZFC1□ | φ2, φ3.2 | φ1/8″ | 15 / 45 | 2 / 5 | 5, 10Note 2) |
| ZFC3□ | φ3.2, φ4 | φ1/8″, φ5/32″ | 50 / 80 | 7 / 10 | 5, 10Note 2) |
| ZFC5□ | φ4, φ6 | φ5/32″, φ1/4″ | 100 / 200 | 10 / 20 | 5, 10Note 2) |
| ZFC7□ | φ6, φ8, φ10, φ12 | φ1/4″, φ5/16″, φ3/8″ | 250 / 450 / 550 / 650 | 30 / 70 / 80 / 100 | 5, 10Note 2) |
4. Vacuum Filter AFJ
SMC – Large Size Vacuum Module (Vacuum Generators) ZR

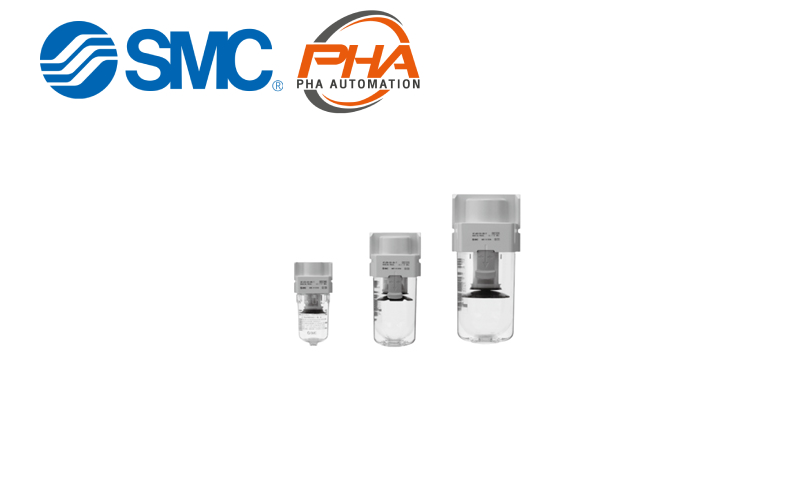

Features | Vacuum Filter AFJ
- Prevents problems with vacuum equipment!
- Nominal filtration rating: 5, 40, 80 μm
- Large flow capacity: Max. 660 L/min (ANR)
- Elements can be reused by washing them.
- Water droplets can be removed.
- The bowl is covered with a transparent bowl guard.
Specifications | Vacuum Filter AFJ
| Series | Port size | Recommended flow rate L/min (ANR) | Filtration (μm) |
|---|---|---|---|
| AFJ | 1/8, 1/4, 3/8, 1/2 | 180, 380, 660 | 5, 40, 80 |
5. Suction Filter ZFC050
SMC – Suction Filter ZFC050

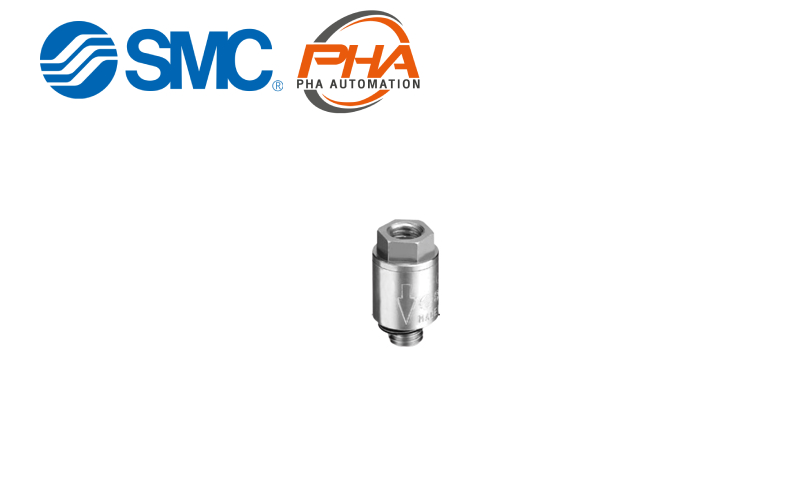

Features | Suction Filter ZFC050
Small suction filter which can be installed directly
Specifications | Suction Filter ZFC050
| Series | Port size IN side |
Port size OUT side |
Filtration (μm) |
|---|---|---|---|
| ZFC050 | M5 x 0.8, φ6 barb | M5 x 0.8 | 3μm, 20μm (Nominal) |
