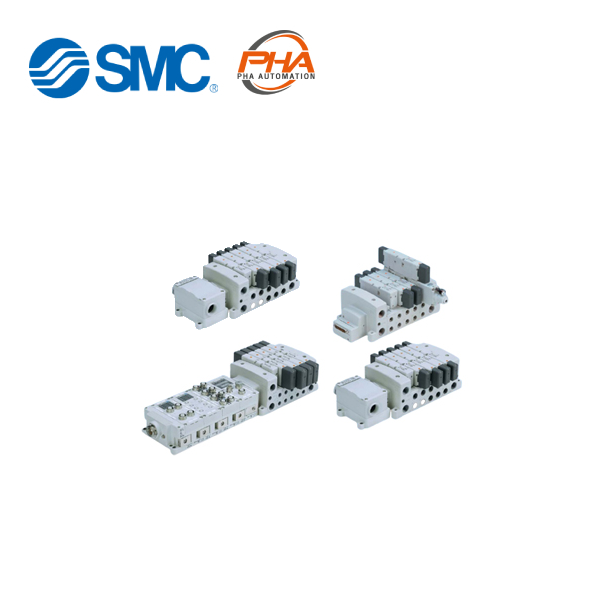

SMC - Pilot Operated 4/5 Port Solenoid Valves
SMC – Pilot Operated 4/5 Port Solenoid Valves มีทั้งหมด 24 รุ่น แต่ละรุ่นมีขนาด, คุณสมบัติ และการใช้งานที่แตกต่างกันออกไป

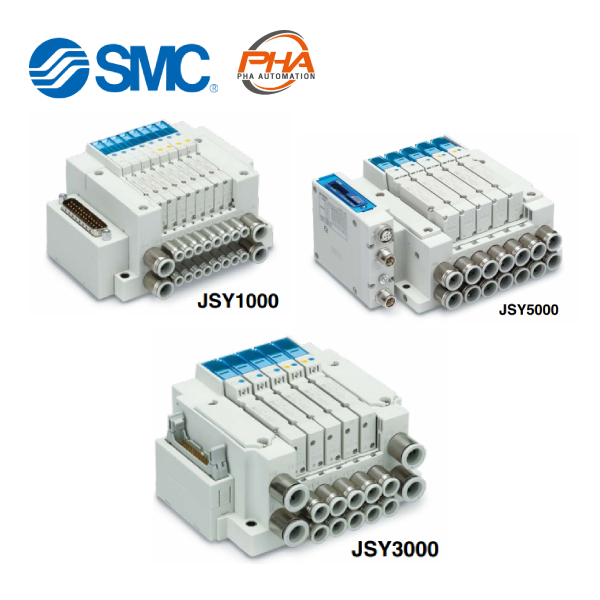

Features | Compact 5-Port Solenoid Valve/Plug-in Type JSY1000/3000/5000
- Size reduction possible thanks to a flow increase. This leads to space saving, weight reduction, and a large flow rate.
- Power consumption: 0.1 W (With power saving circuit*), 0.4 W (Standard) *Made to Order
- Connector type manifold
- 4-position dual 3-port valve available
- Manifold Type no.: JJ5SY1, JJ5SY3, JJ5SY5
Specifications | Compact 5-Port Solenoid Valve/Plug-in Type JSY1000/3000/5000
| Series | Flow rate characteristics 4/2 → 3/5 (A/B → E) C[dm3/(s•bar)] |
Flow rate characteristics 4/2 → 3/5 (A/B → E) b |
Applicable cylinder size | Power consumption (W) |
|---|---|---|---|---|
| JSY1000 | 0.91 | 0.48 | φ40 | 0.2(With power saving circuit) |
| JSY3000 | 2.77 | 0.27 | φ50 | 0.4(Standard) 0.1(With power saving circuit*) *Made to Order |
| JSY5000 | 6.59 | 0.22 | φ80 | 0.4 (Standard) 0.1 (With power saving circuit*) *Made to Order |
2. Compact 5-Port Solenoid Valve / Non Plug-in Type JSY1000/3000/5000
SMC – Compact 5-Port Solenoid Valve/Non-Plug-in Type JSY1000/3000/5000
Features | Compact 5-Port Solenoid Valve/Non-Plug-in Type JSY1000/3000/5000
- Size reduction possible thanks to a flow increase This leads to space saving, weight reduction, and a large flow rate.
- Power consumption: 0.1 W (With power saving circuit*), 0.4 W (Standard) *Made to Order
- 4-position dual 3-port valve available.
- Bottom ported is prepared (A, B port).
- Manifold type no.: JJ5SY1, JJ5SY3, JJ5SY5
Specifications | Compact 5-Port Solenoid Valve/Non-Plug-in Type JSY1000/3000/5000
| Series | Flow rate characteristics 4/2→3/5(A/B → E) C[dm3/(s•bar)] |
Flow rate ccharacteristics 4/2→3/5 (A/B → E) b |
Applicable cylinder size |
Power consumption (W) |
|---|---|---|---|---|
| JSY1000 | 0.63 | 0.28 | φ32 | 0.2 (With power saving circuit) |
| JSY3000 | 1.81 | 0.27 | φ50 | 0.4 (Standard) 0.1 (With power saving circuit*) *Made to Order |
| JSY5000 | 3.72 | 0.18 | φ80 | 0.4 (Standard) 0.1 (With power saving circuit*) *Made to Order |
3. Clean Design Manifold Valve JSY5000-H
SMC – Clean Design Manifold Valve JSY5000-H
Features | Clean Design Manifold Valve JSY5000-H
- Low fluid accumulation, Easy to clean
- Large flow rate: 1,600 L/min (ANR)
- Enclosure: IP69K
- NSF-H1 grease
- External parts: FDA-compliant materials
- (Metal parts are made of stainless steel 316 with high anti-corrosion performance.)
- Wiring: Lead wire/Fieldbus type (IO-Link)
Specifications | Clean Design Manifold Valve JSY5000-H
| Series | Flow rate characteristics 4/2→5/3 (A/B→EA/EB) C[dm3/(s•bar)] |
Flow rate characteristics 4/2→5/3 (A/B→EA/EB) b |
Power consumption (W) |
|---|---|---|---|
| JSY5000-H | 7.64 | 0.23 | 0.4 (Standard) 0.1 (With power saving circuit*) *Made to Order |
4. 4-Port Solenoid Valve/Cassette Type Manifold SJ1000/SJ2000/3000
SMC – 4-Port Solenoid Valve/Cassette Type Manifold SJ1000/2000/3000
Features | 4-Port Solenoid Valve/Cassette Type Manifold SJ1000/2000/3000
- Low-profile cassette type with baseless structure
- Takes up minimal space with a body width of 6.5 mm (SJ1000), 7.5 mm (SJ2000) or 10 mm (SJ3000)
- The SJ2000 and the SJ3000 valves can be mounted together.
- The multi-pin connector makes it easy to add or subtract stations or to exchange valves.
- One side solenoid
- 4-position, dual 3-port specifications are available.
- Manifold type no.: SS5J1, SS5J2, SS5J3
Specifications | 4-Port Solenoid Valve/Cassette Type Manifold SJ1000/2000/3000
| Series | Flow rate characteristics 4/2 → 3/5 (A/B → E) C[dm3/(s•bar)] |
Flow rate characteristics 4/2→3/5 (A/B→E) b |
Flow rate characteristics 4/2→3/5 (A/B→E) Cv |
Applicable cylinder size Speed at 100 mm/s |
Power consumption (W) |
|---|---|---|---|---|---|
| SJ1000 | 0.32 | 0.13 | 0.08 | φ20 | 0.55 (Standard) 0.23 (With power saving circuit) |
| SJ2000 | 0.36 | 0.13 | 0.08 | φ20 | 0.55 (Standard) 0.23 (With power saving circuit) |
| SJ3000 | 0.56 | 0.11 | 0.12 | φ25 | 0.4 (Standard) 0.15 (With power saving circuit) |
5. 4-Port Solenoid Valve Cassette Type Manifold SJ1000-X1
SMC – 4-Port Solenoid Valve Cassette Type Manifold SJ1000-X1
Features | 4-Port Solenoid Valve Cassette Type Manifold SJ1000-X1
- Valve width A 6.5 mm type
- The SJ3000, SJ2000 and SJ1000 can be mounted together.
- Connector type (Card edge type) It is easy to replace valves and increase or decrease the number of stations.
- Manual locking
- ø2 One-touch fitting connection is possible.
Specifications | 4-Port Solenoid Valve Cassette Type Manifold SJ1000-X1
| Series | Flow rate characteristics 4/2 → 3/5 (A/B → E) C[dm3/(s•bar)] |
Flow rate characteristics 4/2→3/5 (A/B→E) b |
Flow rate characteristics 4/2→3/5 (A/B→E) Cv |
Power consumption (W) |
|---|---|---|---|---|
| SJ1000 | 0.32 | 0.33 | 0.08 | 0.23 (With power saving circuit) |
6. Vacuum Release Valve with Restrictor SJ3A6
SMC – Vacuum Release Valve with Restrictor SJ3A6
Features | Vacuum Release Valve with Restrictor SJ3A6
- 2 built-in spool valves
- Vacuum adsorption and release can be controlled with a single valve.
- Width 10 mm (Same size as the SJ3000 series)
- With a restrictor that can adjust the flow rate of the release air
- Built-in replaceable filter on both vacuum and release sides
- Can be combined with the 4-port solenoid valve SJ2000/3000. (Made to Order)
- Manifold type no.: SS3J3
7. 5-Port Solenoid Valve/Plug-in Type SY3000/5000/7000
SMC – 5-Port Solenoid Valve/Plug-in Type SY3000/5000/7000
Features | 5-Port Solenoid Valve/Plug-in Type SY3000/5000/7000
- Due to the flow increase, the valve size can be reduced! Saves energy and space
- Power consumption: 0.1 W (With power saving circuit)/0.35 W (Standard)
- Plug-in sub-plate has been newly added!
- Plug-in metal base (IP40)/Plug-in connector connecting base (IP67)
- Manifold type no.: SS5Y3, SS5Y5, SS5Y7
Specifications | 4-Port Solenoid Valve Cassette Type Manifold SJ1000-X1
| Series | Flow rate characteristics 4/2→5/3 (A/B→EA/EB) C[dm3 /(s•bar)] |
Flow rate characteristics 4/2→5/3 (A/B→EA/EB) b |
Applicable cylinder size | Power consumption (W) |
|---|---|---|---|---|
| SY3000 | 1.6 | 0.19 | φ50 | 0.35 (Standard) 0.1 (With power saving circuit) |
| SY5000 | 3.6 | 0.17 | φ63 | 0.35 (Standard) 0.1 (With power saving circuit) |
| SY7000 | 5.9 | 0.20 | φ80 | 0.35 (Standard) 0.1 (With power saving circuit) |
8. Vacuum Release Valve with Restrictor SY3A□R SY5A□R
SMC – Vacuum Release Valve with Restrictor SY3A□R SY5A□R
Features | Vacuum Release Valve with Restrictor SY3A□R SY5A□R
- Vacuum suction and release can be controlled with a single valve.
- With a restrictor that can adjust the flow rate of the release air
- Can be mounted on the same manifold as the standard valve * When the individual EXH spacer is used
| Series |
|---|
| SY3A□R |
| SY5A□R |
9. 5-Port Solenoid Valve SY3000/5000/7000/9000
SMC – 5-Port Solenoid Valve SY3000/5000/7000/9000
Features | 5-Port Solenoid Valve SY3000/5000/7000/9000
- The combined mounting of a 3-port valve and a 5-port valve is possible.
- Power consumption: 0.1 W (With power saving circuit)
- A wide variety of manifold options are available, such as the aluminum body manifold, DIN rail, and stacking type manifold.
- Manifold type no.: SS5Y3, SS5Y5, SS5Y7, SS5Y9
Specifications | 5-Port Solenoid Valve SY3000/5000/7000/9000
| Series | Flow rate characteristics 4/2→5/3(A/B→EA/EB) C[dm3/(s•bar)] |
Flow rate characteristics 4/2→5/3(A/B→EA/EB) b |
Flow rate characteristics 4/2→5/3(A/B→EA/EB) Cv |
Applicable cylinder size |
Power consumption (W) |
|---|---|---|---|---|---|
| SY3000 | 1.1 | 0.30 | 0.26 | φ40 | 0.35 (Standard) 0.1 (With power saving circuit) |
| SY5000 | 2.8 | 0.29 | 0.66 | φ63 | 0.35 (Standard) 0.1 (With power saving circuit) |
| SY7000 | 4.5 | 0.27 | 1.1 | φ80 | 0.35 (Standard) 0.1 (With power saving circuit) |
| SY9000 | 10 | 0.29 | 2.5 | φ100 | 0.35 (Standard) 0.1 (With power saving circuit) |
| SY300 | 1.1 | 0.30 | 0.26 | φ40 | 0.35 (Standard) 0.1 (With power saving circuit) |
| SY500 | 2.8 | 0.29 | 0.66 | φ63 | 0.35 (Standard) 0.1 (With power saving circuit) |
10. 5-Port Solenoid Valve/Plug-in Type S0700
SMC – 5-Port Solenoid Valve/Plug-in Type S0700
Features | 5-Port Solenoid Valve/Plug-in Type S0700
- A variety of common wiring methods are available.
- Slim, compact plug-in manifold: Required installation space reduced by 45%*, Height reduced by 20 mm*
* Compared with plug-in manifold stacking base - 4-position, dual 3-port valve
- Manifold type no.: SS0751, SS0750
Specifications | 5-Port Solenoid Valve/Plug-in Type S0700
| Series | Flow rate characteristics 1→4/2(P→A/B) C[dm3/(s•bar)] |
Flow rate characteristics 1→4/2(P→A/B) b |
Flow rate characteristics 1→4/2(P→A/B) Cv |
Applicable cylinder size |
Power consumption (W) |
|---|---|---|---|---|---|
| S0700 | 0.39 | 0.39 | 0.11 | φ25 | 0.35 |
11. 5-Port Solenoid Valve/Plug Lead Type S0700
SMC – 5-Port Solenoid Valve/Plug-in Type S0700
Features | 5-Port Solenoid Valve/Plug Lead Type S0700
- Valve width: 7.4 mm
- Driveable cylinders: Up to ø32 (Body ported)
- Power consumption: 0.35 W
- Weight: 39 g (Body ported)
- Manifold type no.: SS0752, SS0755
Specifications | 5-Port Solenoid Valve/Plug Lead Type S0700
| Series | Flow rate characteristics 1→4/2(P→A/B) C[dm3/(s•bar)] |
Flow rate characteristics 1→4/2(P→A/B) Cv |
Applicable cylinder size |
Power consumption (W) |
|---|---|---|---|---|
| SS0752 Body ported |
0.62 | 0.18 | φ32 | 0.35 |
| SS0755 Body ported |
0.39 | 0.11 | φ25 | 0.35 |
12. 5-Port Solenoid Valve SV1000/2000/3000/4000
SMC – 5-Port Solenoid Valve SV1000/2000/3000/4000
Features | 5-Port Solenoid Valve SV1000/2000/3000/4000
- It is possible to easily add stations to the manifold valve or change specifications.
- One side solenoid
- 4-position, dual 3-port specifications are available.
- Manifold type no.: SS5V1, SS5V2, SS5V3, SS5V4
Specifications | 5-Port Solenoid Valve SV1000/2000/3000/4000
| Series | Flow rate characteristics 4/2→5/3(A/B→E) C[dm3/(s・bar)] |
Flow rate characteristics 4/2→5/3(A/B→E) b |
Flow rate characteristics 4/2→5/3(A/B→E) Cv |
Applicable cylinder size |
Power consumption (W) |
|---|---|---|---|---|---|
| SV1000 | 1.1 | 0.35 | 0.28 | φ40 | 0.6 |
| SV2000 | 2.4 | 0.18 | 0.48 | φ63 | 0.6 |
| SV3000 | 4.3 | 0.21 | 0.93 | φ80 | 0.6 |
| SV4000 | 7.0 | 0.18 | 1.6 | φ100 | 0.6 |
13. 4/5-Port Solenoid Valve SYJ3000/5000/7000
SMC – 4/5-Port Solenoid Valve SYJ3000/5000/7000
Features | 4/5-Port Solenoid Valve SYJ3000/5000/7000
- The combined mounting of a 3-port valve and a 5-port valve is possible.
- Power consumption: 0.1 W (With power saving circuit)
- Manifold type no.: SS5YJ3, SS5YJ5, SS5YJ7
| Series | Flow rate characteristics 4/2→5/3(A/B→EA/EB) C[dm3/(s・bar)] |
Flow rate characteristics 4/2→5/3(A/B→EA/EB) b |
Flow rate characteristics 4/2→5/3(A/B→EA/EB) Cv |
Applicable cylinder size |
Power consumption (W) |
|---|---|---|---|---|---|
| SYJ3000 | 0.46 | 0.35 | 0.12 | φ25 | 0.35 (Standard) 0.1 (With power saving circuit) |
| SYJ5000 | 0.83 | 0.32 | 0.21 | φ40 | 0.35 (Standard) 0.1 (With power saving circuit) |
| SYJ7000 | 2.9 | 0.35 | 0.74 | φ50 | 0.35 (Standard) 0.1 (With power saving circuit) |
SMC – 5-Port Solenoid Valve/Cassette Type Manifold SZ3000
Features | 5-Port Solenoid Valve/Cassette Type Manifold SZ3000
- The cassette type allows for easy valve exchange.
- Valve has an attached switch for safe maintenance.
- The low-profile cassette type with baseless structure takes up less space.
- Manifold type no.: SS5Z3
Specifications | 5-Port Solenoid Valve/Cassette Type Manifold SZ3000
| Series | Flow rate characteristics 4/2→3(A/B→R) C[dm3/(s・bar)] |
Flow rate characteristics 4/2→3(A/B→R) b |
Flow rate characteristics 4/2→3(A/B→R) Cv |
Applicable cylinder size |
Power consumption (W) |
|---|---|---|---|---|---|
| SZ3000 | 0.77 | 0.19 | 0.19 | φ32 | 0.6 |
15. 5-Port Solenoid Valve VF1000/3000/5000
SMC – 5-Port Solenoid Valve VF1000/3000/5000
Features | 5-Port Solenoid Valve VF1000/3000/5000
- Built-in full-wave rectifier (AC)
- Built-in strainer in the pilot valve
- Manifold type no.: VV5F1, VV5F3, VV5F5
Specifications | 5-Port Solenoid Valve VF1000/3000/5000
| Series | Flow rate characteristics 4/2→5/3 (A/B→EA/EB) C[dm3/(s・bar)] |
Flow rate characteristics 4/2→5/3 (A/B→EA/EB) b |
Flow rate characteristics 4/2→5/3 (A/B→EA/EB) Cv |
Applicable cylinder size |
Power consumption (W) |
|---|---|---|---|---|---|
| VF1000 | 0.53 | 0.28 | 0.13 | φ40 | 1.55 (Standard) 0.55 (With power saving circuit) 0.4 (Low wattage specification) |
| VF3000 | 3.1 | 0.32 | 0.75 | φ80 | 1.55 (Standard) 0.55 (With power saving circuit) 0.4 (Low wattage specification) |
| VF5000 | 10.0 | 0.49 | 2.9 | φ125 | 1.55 (Standard) 0.55 (With power saving circuit) |
16. Large Size 5-Port Solenoid Valve VP4□50/4□70
SMC – Large Size 5-Port Solenoid Valve VP4□50/4□70
Features | Large Size 5-Port Solenoid Valve VP4□50/4□70
- For driving large cylinders
- Manifold type no.: VVP45, VVP46
Specifications | Large Size 5-Port Solenoid Valve VP4□50/4□70
| Series | Flow rate characteristics 4/2→5/3 (A/B→EA/EB) C [dm3/(s・bar)] |
Flow rate characteristics 4/2→5/3 (A/B→EA/EB) b |
Flow rate characteristics 4/2→5/3 (A/B→EA/EB) Cv |
Applicable cylinder size |
Power consumption (W) |
|---|---|---|---|---|---|
| VP4□50 | 21 | 0.28 | 5.6 | φ140 | 12 |
| VP4□70 | Effective area：300 mm2 | Effective area：300 mm2 | Effective area：300 mm2 | φ300 | 12 |
17. 5-Port Solenoid Valve VQ1000/2000
SMC – 5-Port Solenoid Valve VQ1000/2000
- Space-saving design with one side solenoid and fittings all positioned on one side, allowing free threedirectional mounting
- No screws and one clamp structure for reduced recombination labor
- A variety of option parts (Back pressure check valve, Dual flow fitting, etc.) are available.
- A variety of common wiring methods are available.
- 4-position, dual 3-port valve
- Manifold type no.: VV5Q11, VV5Q21
Specifications | 5-Port Solenoid Valve VQ1000/2000
| Series | Flow rate characteristics 4/2→5/3(A/B→R1/R2) C[dm3/(s・bar)] |
Flow rate characteristics 4/2→5/3(A/B→R1/R2) b |
Flow rate characteristics 4/2→5/3(A/B→R1/R2) Cv |
Applicable cylinder size |
Power consumption (W) |
|---|---|---|---|---|---|
| VQ1000 | 1.0 | 0.30 | 0.25 | φ40 | 0.4(Standard) |
| VQ2000 | 3.2 | 0.30 | 0.80 | φ63 | 0.4(Standard) |
18. 5-Port Solenoid Valve VQ4000/5000
SMC – 5-Port Solenoid Valve VQ4000/5000
Features | 5-Port Solenoid Valve VQ4000/5000
- Compact with a large flow capacity
Installation volume: 42% reduction, Installation area: 26% reduction
VQ4000: Can drive cylinders up to ø160
VQ5000: Can drive cylinders up to ø180 - Power saving: Power consumption of 0.4W (Low wattage type)
Specifications | 5-Port Solenoid Valve VQ4000/5000
| Series | Flow rate characteristics 4/2→5/3(A/B→EA/EB) C[dm3/(s・bar)] |
Flow rate characteristics 4/2→5/3(A/B→EA/EB) b |
Flow rate characteristics 4/2→5/3(A/B→EA/EB) Cv |
Applicable cylinder size |
Power consumption (W) |
|---|---|---|---|---|---|
| VQ4000 | 7.3 | 0.38 | 2.0 | φ160 | 1.0 0.4 (Low wattage type) |
| VQ5000 | 17 | 0.31 | 4.7 | φ180 | 1.0 0.4 (Low wattage type) |
19. 5-Port Solenoid Valve VQC1000/2000
SMC – 5-Port Solenoid Valve VQC1000/2000
Features | 5-Port Solenoid Valve VQC1000/2000
- Enclosure IP67 compliant
- Flexible adaptation, such as the adding of stations and changing of specifications, is made possible with the use of a multi-pin connector manifold.
- Space-saving design with one side solenoid and fittings all positioned on one side, allowing free mounting
- No screws and one clamp structure for reduced recombination labor
- A variety of common wiring methods are available.
- 4-position, dual 3-port valve
- Manifold type no.: VV5QC11, VV5QC21
Specifications | 5-Port Solenoid Valve VQC1000/2000
| Series | Flow rate characteristics 4/2→5/3(A/B→R1/R2) C[dm3/(s・bar)] |
Flow rate characteristics 4/2→5/3(A/B→R1/R2) b |
Flow rate characteristics 4/2→5/3(A/B→R1/R2) Cv |
Applicable cylinder size |
Power consumption (W) |
|---|---|---|---|---|---|
| VQC1000 | 1.0 | 0.30 | 0.25 | φ40 | 0.4 (Standard) |
| VQC2000 | 3.2 | 0.30 | 0.80 | φ63 | 0.4 (Standard) |
20. 5-Port Solenoid Valve VQC4000/5000
SMC – 5-Port Solenoid Valve VQC4000/5000
Features | 5-Port Solenoid Valve VQC4000/5000
- Compact with a large flow capacity
- VQC4000: Can drive cylinders up to ø160
- VQC5000: Can drive cylinders up to ø180
- An extensive range of protocols are available.
- Power saving: Power consumption of 0.4 W (Low wattage type)
- Enclosure IP67 compliant
| Series | Flow rate characteristics 4/2→5/3(A/B→EA/EB) C[dm3/(s・bar)] |
Flow rate characteristics 4/2→5/3(A/B→EA/EB) b |
Flow rate characteristics 4/2→5/3(EA→EB) Cv |
Applicable cylinder size |
Power consumption (W) |
|---|---|---|---|---|---|
| VQC4000 | 7.3 | 0.38 | 2.0 | φ160 | 1.0 0.4 (low wattage type) |
| VQC5000 | 17 | 0.31 | 4.7 | φ180 | 1.0 0.4 (low wattage type) |
21. 5-Port Solenoid Valve VQZ1000/2000/3000
SMC – 5-Port Solenoid Valve VQZ1000/2000/3000
Features | 5-Port Solenoid Valve VQZ1000/2000/3000
- The combined mounting of a 3-port valve and a 5-port valve on a manifold valve is possible.
- Can be mounted on an aluminum body manifold or a DIN rail
- Manifold type no.: VV5QZ12, VV5QZ15, VV5QZ22, VV5QZ25, VV5QZ32, VV5QZ35
| Series | Flow rate characteristics 4/2→5/3(A/B→EA/EB) C[dm3/(s・bar)] |
Flow rate characteristics 4/2→5/3(A/B→EA/EB) b |
Flow rate characteristics 4/2→5/3(A/B→EA/EB) Cv |
Applicable cylinder size |
Power consumption (W) |
|---|---|---|---|---|---|
| VQZ1000 | 1.3 | 0.24 | 0.32 | φ63 | 0.35(Standard) 0.9 (High pressure type, High speed response type) |
| VQZ2000 | 2.3 | 0.29 | 0.53 | φ80 | 0.35(Standard) 0.9 (High pressure type, High speed response type) |
| VQZ3000 | 4.6 | 0.26 | 1.2 | φ100 | 0.35(Standard) 0.9 (High pressure type, High speed response type) |
22. 5-Port Solenoid Valve SQ1000/2000
SMC – 5-Port Solenoid Valve SQ1000/2000
Features | 5-Port Solenoid Valve 5-Port Solenoid Valve SQ1000/2000
- Power saving: Power consumption of 0.4 W (Standard)
- Easy to add or decrease the number of valve stations
- Easy valve maintenance, mountable with one screw
- Easy replacement of clip type One-touch fittings
- Connector entry direction can be changed with a single push.
- 4-position, dual 3-port valve
- Built-in back pressure check valve (Option)
- Manifold type no.: SS5Q13, SS5Q14, SS5Q23, SS5Q24
Specifications | 5-Port Solenoid Valve SQ1000/2000
| Series | Flow rate characteristics 4/2→5/3(A/B→R1/R2) C[dm3/(s・bar)] |
Flow rate characteristics 4/2→5/3(A/B→R1/R2) b |
Flow rate characteristics 4/2→5/3(A/B→R1/R2) Cv |
Applicable cylinder size |
Power consumption (W) |
|---|---|---|---|---|---|
| SQ1000 | 0.8 | 0.20 | 0.19 | φ32 | 0.4(Standard) 0.95(High pressure type) |
| SQ2000 | 3.1 | 0.18 | 0.71 | φ63 | 0.4(Standard) 0.95(High pressure type) |
23. 5-Port Solenoid Valve VFS1000/2000/3000/4000/5000/6000
SMC – 5-Port Solenoid Valve VFS1000/2000/3000/4000/5000/6000
Features | 5-Port Solenoid Valve VFS1000/2000/3000/4000/5000/6000
- Metal seal main valve construction
- Extensive size variations are available.
- For driving medium and large cylinders
- A wide variety of manifold options are available.
- Compatible with control units (VFS2000/3000/4000, Base mounted type)
- Manifold type no.: VV5FS1, VV5FS2, VV5FS3, VV5FS4, VV5FS5
| Series | Flow rate characteristics 4/2→5/3(A/B→R1/R2) C[dm3/(s・bar)] |
Flow rate characteristics 4/2→5/3(A/B→R1/R2) b |
Flow rate characteristics 4/2→5/3(A/B→R1/R2) Cv |
Applicable cylinder size |
Power consumption (W) |
|---|---|---|---|---|---|
| VFS1000 | 1.8 | 0.19 | 0.40 | φ50 | 1.8 |
| VFS2000 | 3.5 | 0.32 | 0.85 | φ63 | 1.8 |
| VFS3000 | 6.8 | 0.12 | 1.6 | φ80 | 1.8 |
| VFS4000 | 12 | 0.22 | 3.1 | φ140 | 1.8 |
| VFS5000 | 20 | 0.13 | 4.7 | φ160 | 1.8 |
| VFS6000 | 38 | 0.10 | 9.0 | φ200 | 1.8 |
24. 5-Port Solenoid Valve VFR2000/3000/4000/5000/6000
SMC – 5-Port Solenoid Valve VFR2000/3000/4000/5000/6000
Features | 5-Port Solenoid Valve VFR2000/3000/4000/5000/6000
- Rubber seal main valve construction
- Extensive size variations are available.
- For driving medium and large cylinders
- Manifold type no.: VV5FR2, VV5FR3, VV5FR4, VV5FR5
Specifications | 5-Port Solenoid Valve VFR2000/3000/4000/5000/6000
| Series | Flow rate characteristics 4/2→5/3(A/B→EA/EB) C[dm3/(s・bar)] |
Flow rate characteristics 4/2→5/3(A/B→EA/EB) b |
Flow rate characteristics 4/2→5/3(A/B→EA/EB) Cv |
Applicable cylinder size |
Power consumption (W) |
|---|---|---|---|---|---|
| VFR2000 | 3.0 | 0.27 | 0.7 | φ63 | 1.8 |
| VFR3000 | 8.7 | 0.38 | 2.2 | φ100 | 1.8 |
| VFR4000 | 14 | 0.3 | 3.8 | φ125 | 1.8 |
| VFR5000 | 25 | 0.21 | 6.2 | φ140 | 1.8 |
| VFR6000 | 41 | 0.17 | 9.7 | φ200 | 1.8 |
