SMC - Stroke Reading Cylinders
SMC – Stroke Reading Cylinders มีทั้งหมด 6 รุ่น แต่ละรุ่นมีขนาด, คุณสมบัติ และการใช้งานที่แตกต่างกันออกไป
1) High Precision Stroke Reading Cylinder CEP1
SMC – High Precision Stroke Reading Cylinder CEP1
Features | High Precision Stroke Reading Cylinder CEP1
Movable scale cylinder
Specifications | High Precision Stroke Reading Cylinder CEP1
| Series | Action | Bore size (mm) | Applicable counter |
|---|---|---|---|
| CEP1 | Double acting | 12, 20 | CEU5 |

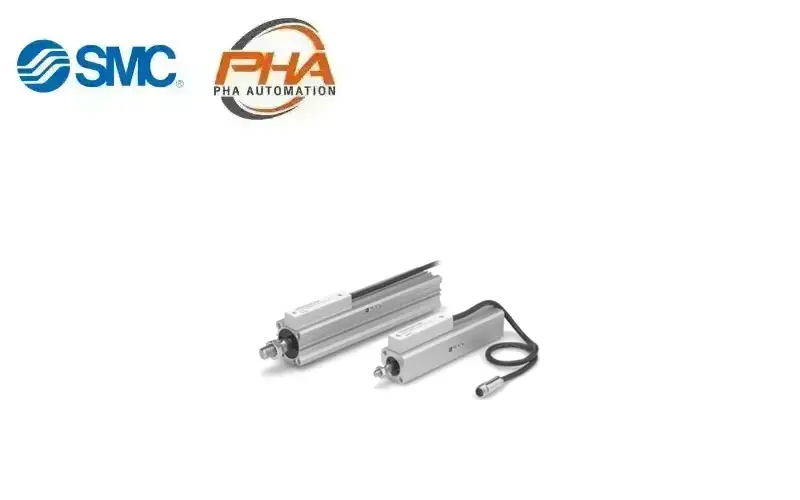

2) Stroke Reading Cylinder CE1
SMC – Stroke Reading Cylinder CE1
Features | Stroke Reading Cylinder CE1
Movable scale cylinder
Specifications | Stroke Reading Cylinder CE1
| Series | Action | Bore size (mm) | Applicable counter |
|---|---|---|---|
| CE1 | Double acting | 12, 20, 30, 40, 50, 63 | CEU5 |
3) Stroke Reading Cylinder with Brake CE2
SMC – Stroke Reading Cylinder with Brake CE2
Features | Stroke Reading Cylinder with Brake CE2 / controller
A brake mechanism has been added to a movable scale cylinder
∗ The Controller/CEU2 series was discontinued in November 2019. Please contact sales representative for more details.
Specifications | Stroke Reading Cylinder with Brake CE2
| Series | Action | Bore size (mm) | Applicable counter |
|---|---|---|---|
| CE2 | Double acting | 40, 50, 63, 80, 100 | CEU5 / CEU2 |
4) Stroke Reading Rodless Cylinder with Brake ML2B
SMC – Stroke Reading Rodless Cylinder with Brake ML2B
Features | Stroke Reading Rodless Cylinder with Brake ML2B
Mechanically jointed rodless cylinder incorporated with a brake mechanism and stroke sensor
*The Controller/CEU2 series was discontinued in November 2019. Please contact sales representative for more details.
Specifications | Stroke Reading Rodless Cylinder with Brake ML2B
| Series | Action | Bore size (mm) | Applicable counter / controller |
|---|---|---|---|
| ML2B | Double acting | 25, 32, 40 | CEU5 / CEU2 |
5) Multi-Counter CEU5
SMC – Multi-Counter CEU5
Note | Multi-Counter CEU5
CE-compliant: When connecting to a stroke reading cylinder (CE1), a high precision stroke reading cylinder (CEP1) and a stroke reading cylinder with brake (CE2). (CEU5[][]-D type) Refer to the operation manual for details
Specifications | Multi-Counter CEU5
| Type | Series | Applicable cylinder (Stroke reading cylinder) |
|---|---|---|
| Multi-counter | CEU5 | CEP1 / CE1 CE2 / ML2B |
6) Actuator Position Sensor D-MP□
SMC – Actuator Position Sensor D-MP□
Features | Actuator Position Sensor D-MP□
- Actuator stroke position is output with an analog signal.
- Repeatability: 0.1 mm
- Analog output
- 4 measurement ranges
- Switch output
- IO-Link compatible
Specifications | Actuator Position Sensor D-MP□
| Series | Measuring range |
|---|---|
| D-MP025 | 25 mm ±1 mm |
| D-MP050 | 50 mm ±1 mm |
| D-MP100 | 100 mm ±1 mm |
| D-MP200 | 200 mm ±1 mm |
